MAINTENANCE AN D SERVICING
3. Move right-hand reel sideways to separate the reel
tube (A) and U-joint (B).
4. Remove the chain (C).
5. Route new chain (C) over U-joint (B) and locate
on s prockets.

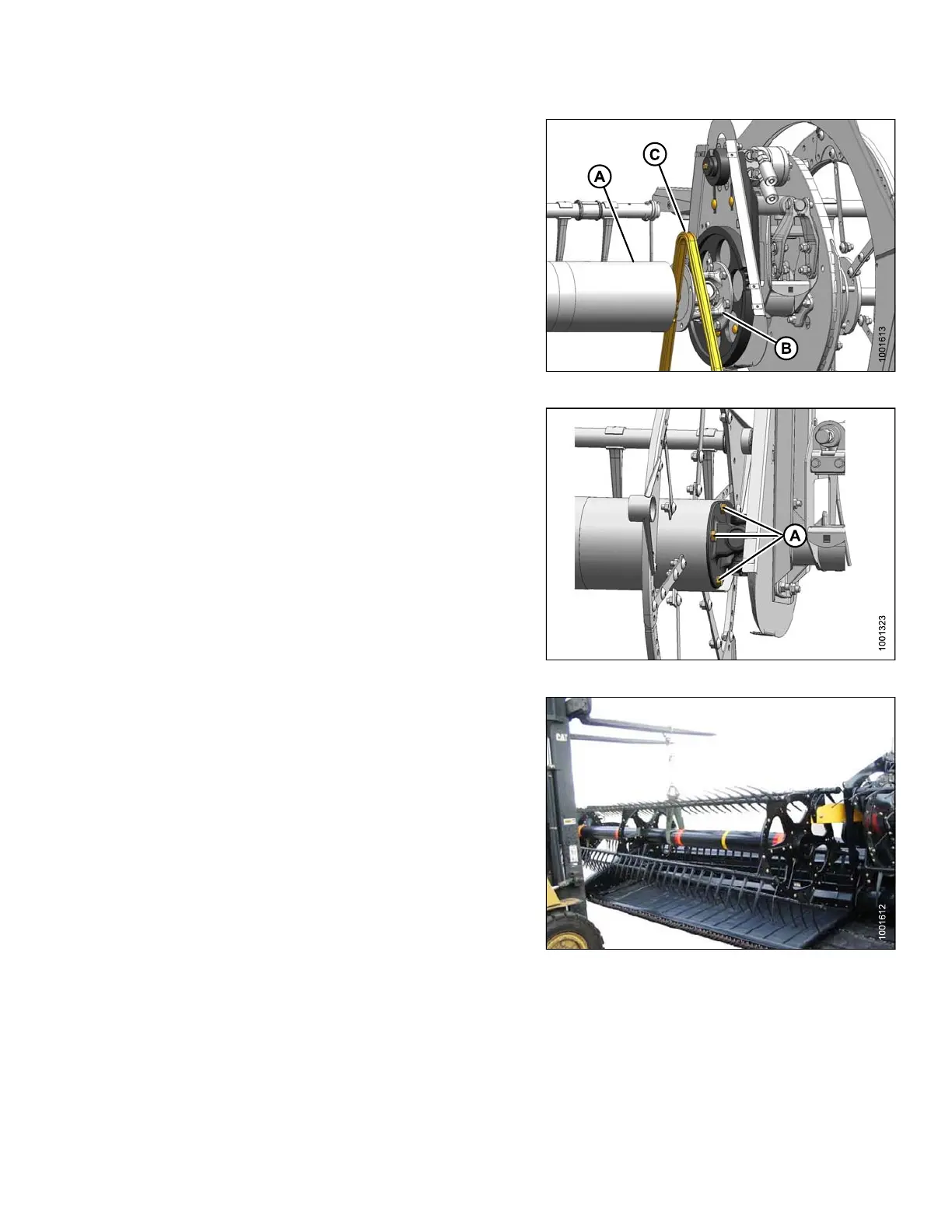

Figure 5.274: Reel Drive Chain
6. Position r
ight-hand reel tube (A) a ga in st reel drive a nd
engage stu
b shaft into U-joint (B) pilot hole.
7. Rotate r e e
l until holes in end of reel tube and U-joint
line up.
8. Apply Loc
tite
®
#243 (or equivalent) to four 1/2 in.
bolts (A)
and install with lock washers.
9. Torque to
75–85 ft·lbf (102–115 N·m).
Figure 5.275: U-Joint
10. Remove
temporary reel support.
11. Tighte
n drive chain. Refer to Tightening Drive Chain,
page 38
2
.
Figu
re 5.276: Reel and Reel Support
147695 385 Revision A
