HEADER ATTAC HMENT/D ETACH ME NT
3. Ensure latches (A) at fro nt corners of adapter are
rotated towards the rear of adapter.
CAUTION
Be sure all bystanders are clear of machine before
starting engine or engaging any header drives.

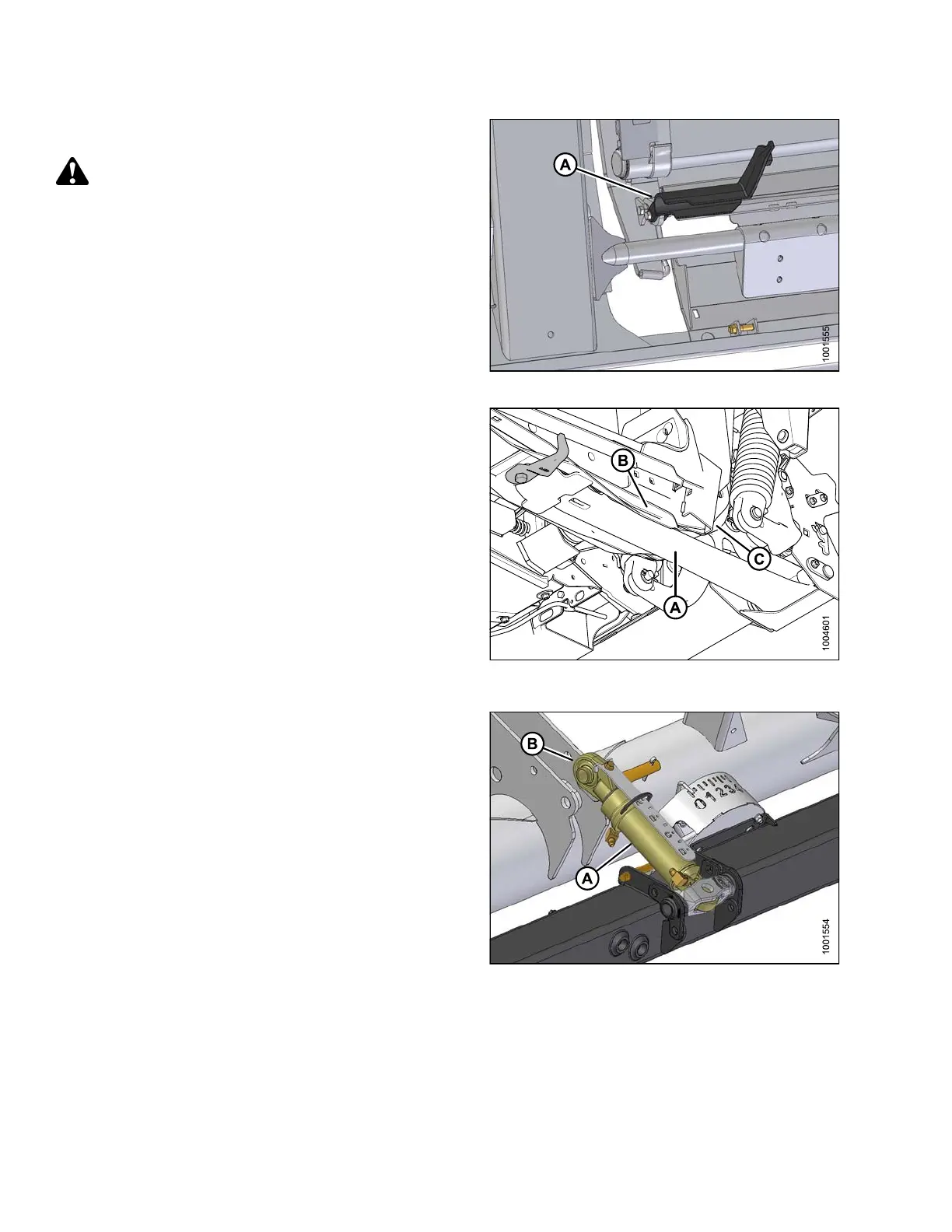

Figure 4.113: Latches
4. Start engine, and lower combine feeder house so that
adapter arms (B) are aligned with header balance
channels (B).
5. Drive slowly forward, maintaining alignment between
adapter arms (A) and header balance channels (B).
6. Keep adapter arms (A) just under the balance
channels (B) to ensure adapter legs seat properly in
the header linkage supports at (C).
IMPORTANT:
Keep hyd
raulic hoses clear to prevent damage when
driving
into header.
7. Continue forward until adapter arms (A) contact stops
in balance channels (B).
Figure 4.114: Adapter Underside
8. Adjust length of center-link (A) with header angle
hydraulics to approximately align eye (B) on center-link
with hole in header bracket.
9. Shut down engine and remove key.
Figure 4.11
5: Cent er-Li nk
147695 246 Revision A
