HEADER ATTA CHMEN T/DETACHMENT

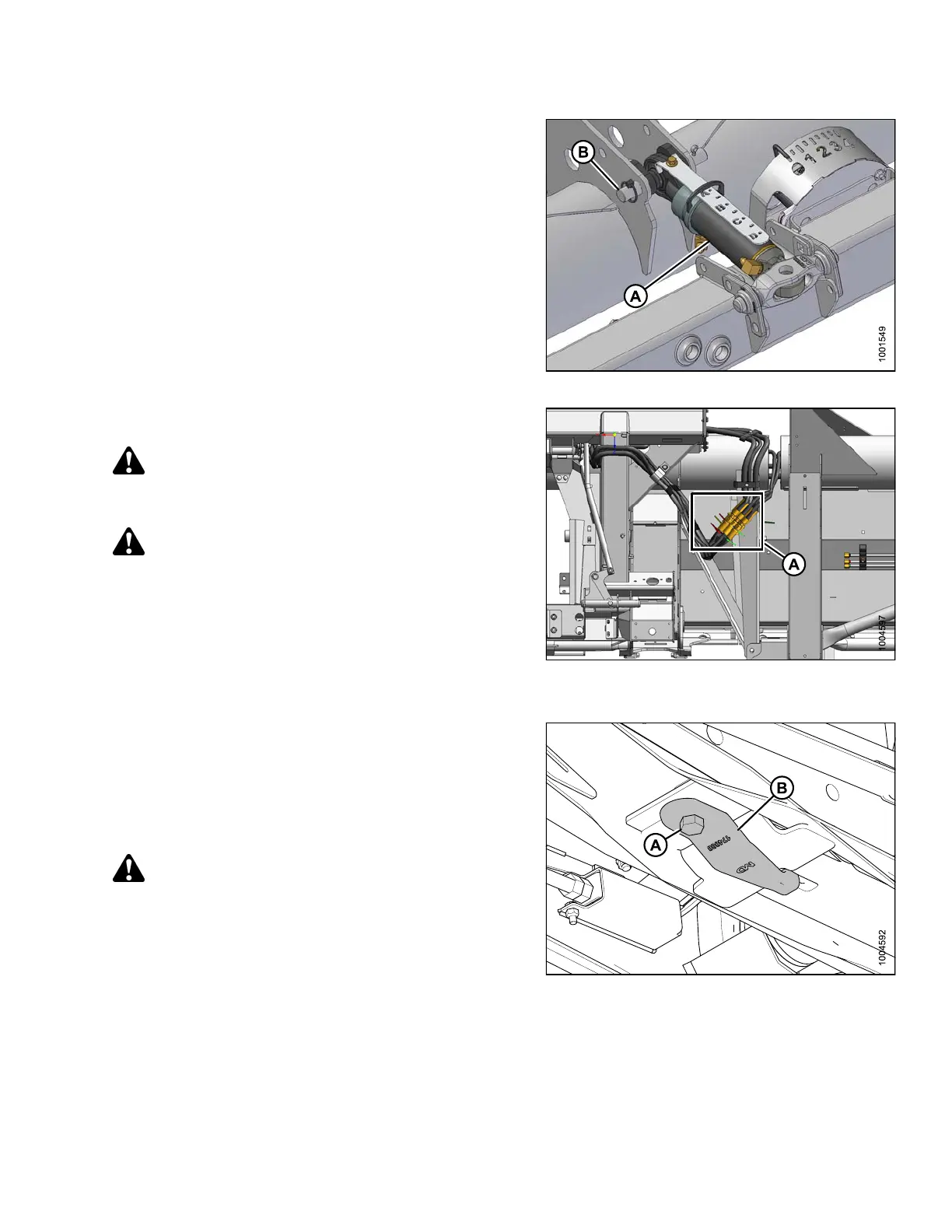

10. Connect center-link:
a. Pull pin (B) part way out of bracket, and remove
prop from under center-link (A).
b. Install pin (B) through center-link (A) and bracket,
and secure with lynch pin.
Figure 4.116: Center-Link
11. Connect reel hydraulics (A) at right end of adapter
matching colored cable ties.
CAUTION
Always connect center-link before fully
raising header.
CAUTION
Be sure all b
ystanders are clear of machine before
starting en
gine or engaging any header drives.
12. Start engine and raise adapter slowly, making sure
adapter legs engage in header legs.
13. Raise header fully, stop engine, and remove key.
14. Engage header lift cylinder stops on combine.
Figure 4.117: Reel Hydraulics
15. Loosen nut and bol
t (A), and reposition hook (B) as
shown to engage ad
apter arm. Tighten bolt and nut(A).
16. Remove lift cylin
der locks, start engine, and lower
header to ground.
Adjust header angle to the
shallowest sett
ing (shortest center-link).
17. Raise reel fully
.
DANGER
To avoid bodily injury or death from unexpected
start-up or fall of raised machine, always stop engine,
remove key, and engage safety props before going
under header for any reason.
18. Shut down engine and remove key from ignition.
19. Engage reel safety props.
Figure 4.118: Adapter Underside
147695
2
47
Revision A
