HEADER ATTAC HMENT/D ETACH ME NT
21. If quick disconnects are installed, disconnect
as follows:
a. Line up slot (A) in collar with pin (B) on connector.
b. Push collar toward pin, and pull connector
to disengage.
c. Install plugs or caps on hose ends (if equipped).

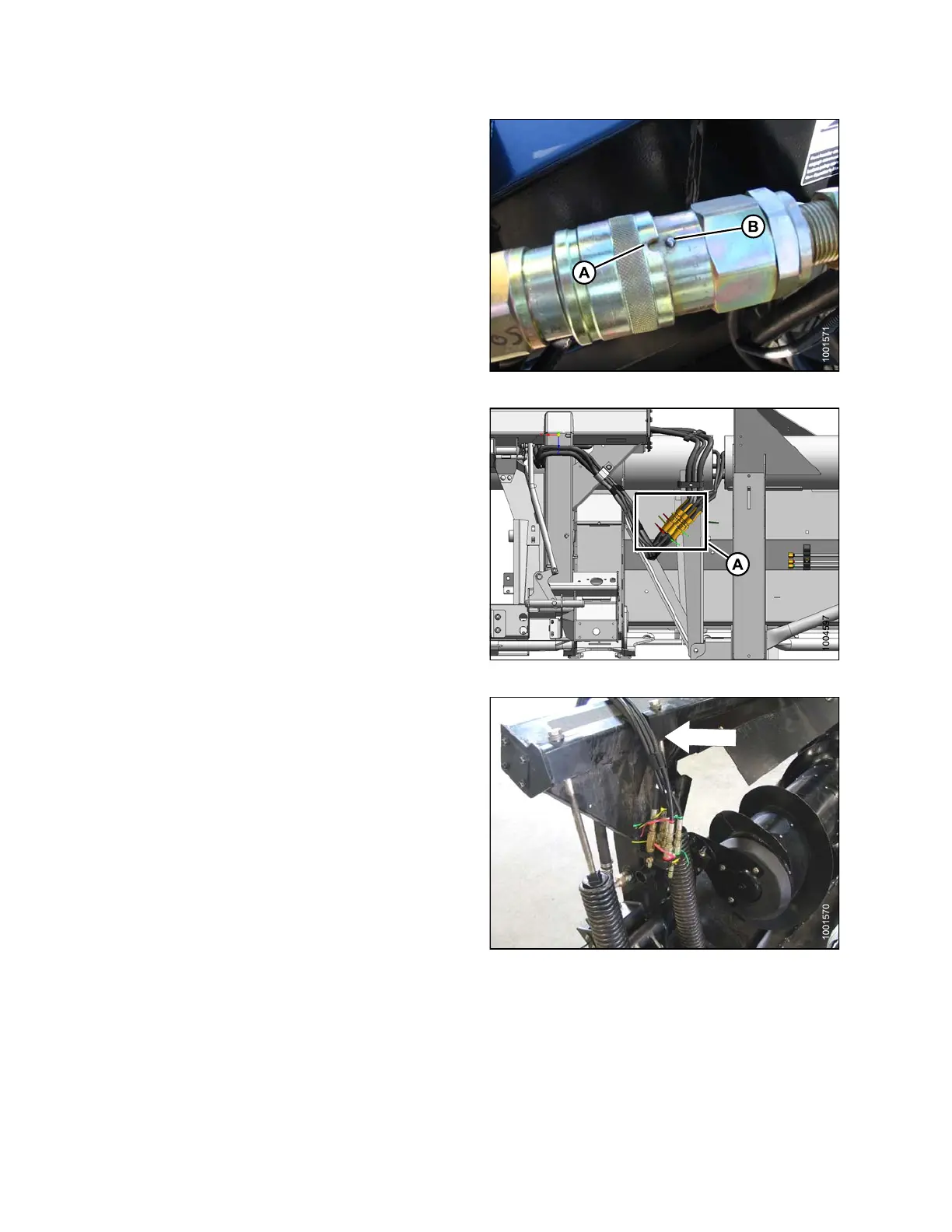

Figure 4.108: Q uick Disconnect
22. Disconnect reel hydraulics (A). Cap off end
immediately to avoid loss of oil.
Figure 4.109: Reel Hydraulics
23. Store and secure hoses to adapter frame.
24. Ensure header is on ground or is supported by wheels
in transport mode.
25. Start engine and slowly back combine away
from header.
26. Stop engine a nd rem ove key.
Figure 4.110: Hose Storage
147695
2
44
Revision A
