MAINTENANCE AND SERVICING

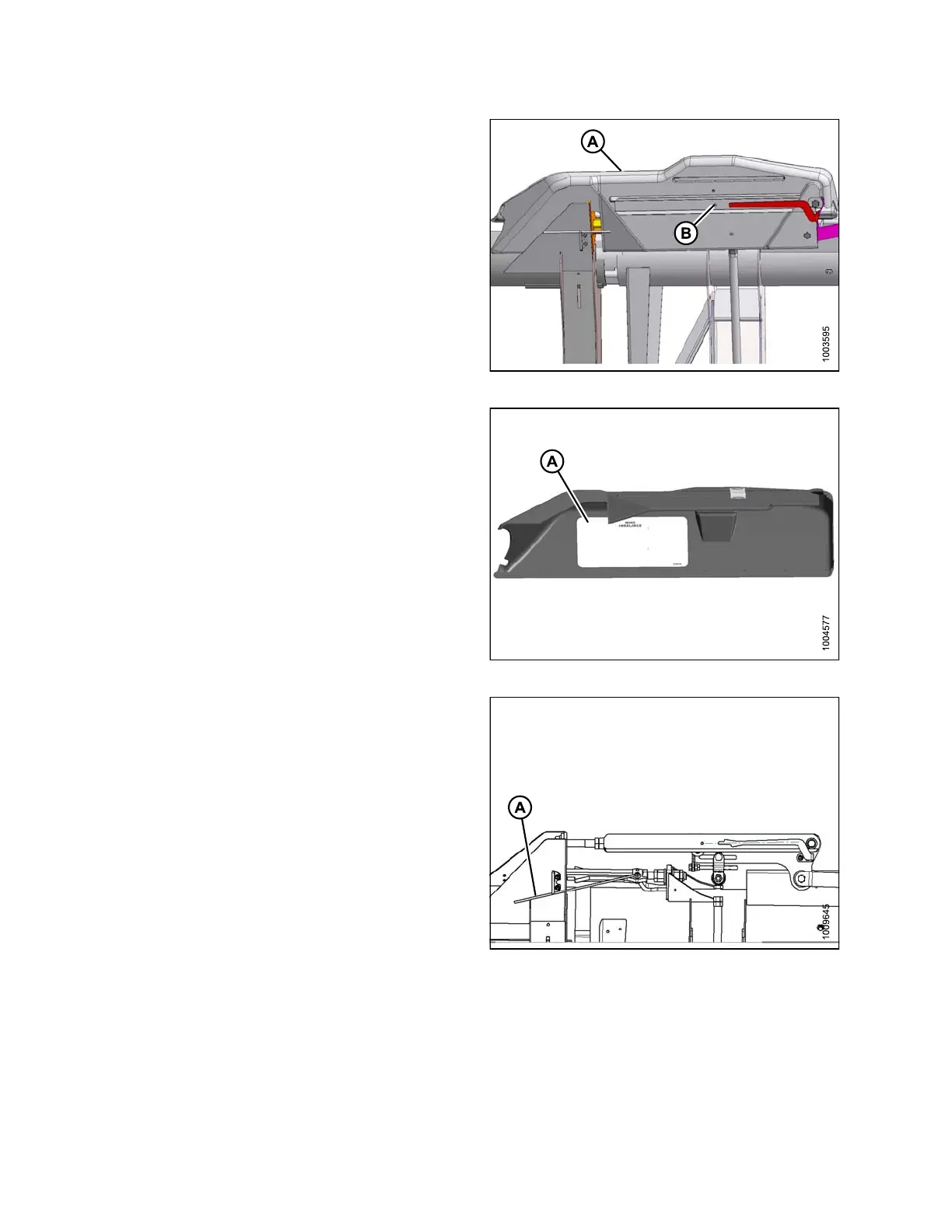

5. Remove linkage cover (A) by removing bolt (B).
Figure 5.311: Linkage Cover
NOTE:
Refer to decal (A) inside each linkage cover.
Figure 5.312: Linkage Cover
6. Unlock the wings by moving handle (A) to lower
(UNLOCK) po sit ion.
Figure 5.313: Wing Lock in UNLOCK Position
147695 402 Revision A
