MAINTENANCE AN D SERVICING
7. Retrieve wrench (A) from adapter leg.

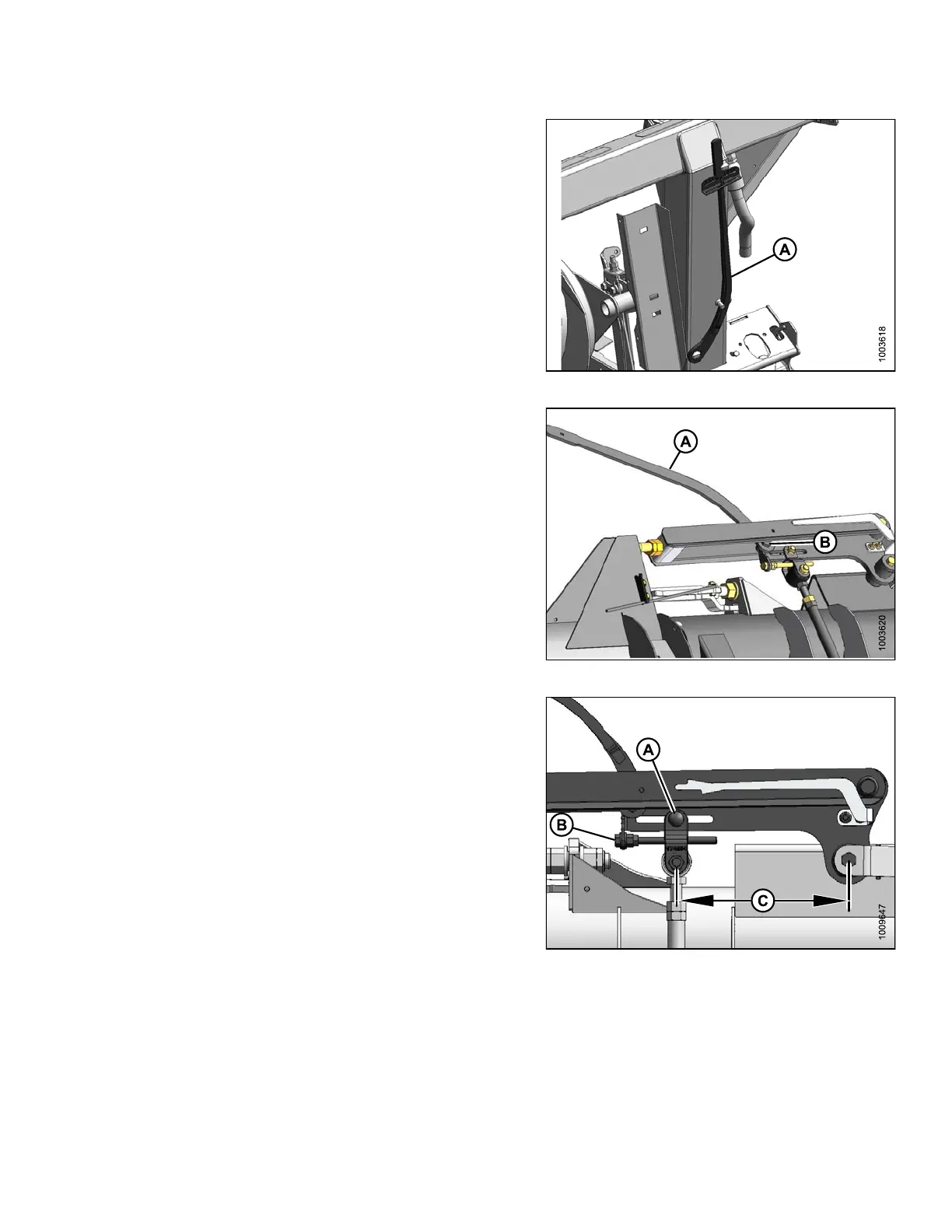

Figure 5.314: Torque Wrench
8. Place torque wrench (A) on bolt (B).
Figure 5.315: Balance Linkage
9. Loosen the clevis bolt (A) for the wing requiring
adjustment as determined by the wing balance check.
NOTE:
Do NOT loosen any other hardware.
10. Adjust bolt (B) and set dimension (C), refer to Table 5.3
Wing Balance Chart, page 404.
Figure 5.316: Balance Linkage
147695 403 Revision A
