OPERATION
1. Turn mode select switch (A) to HT.
2. Set the desired header height with position control
knob (B). The AHHC will raise and lowe r the header to
maintain this fixed distance from the ground.
3. Turn feede r ON.
4. Push header LOWER switch.

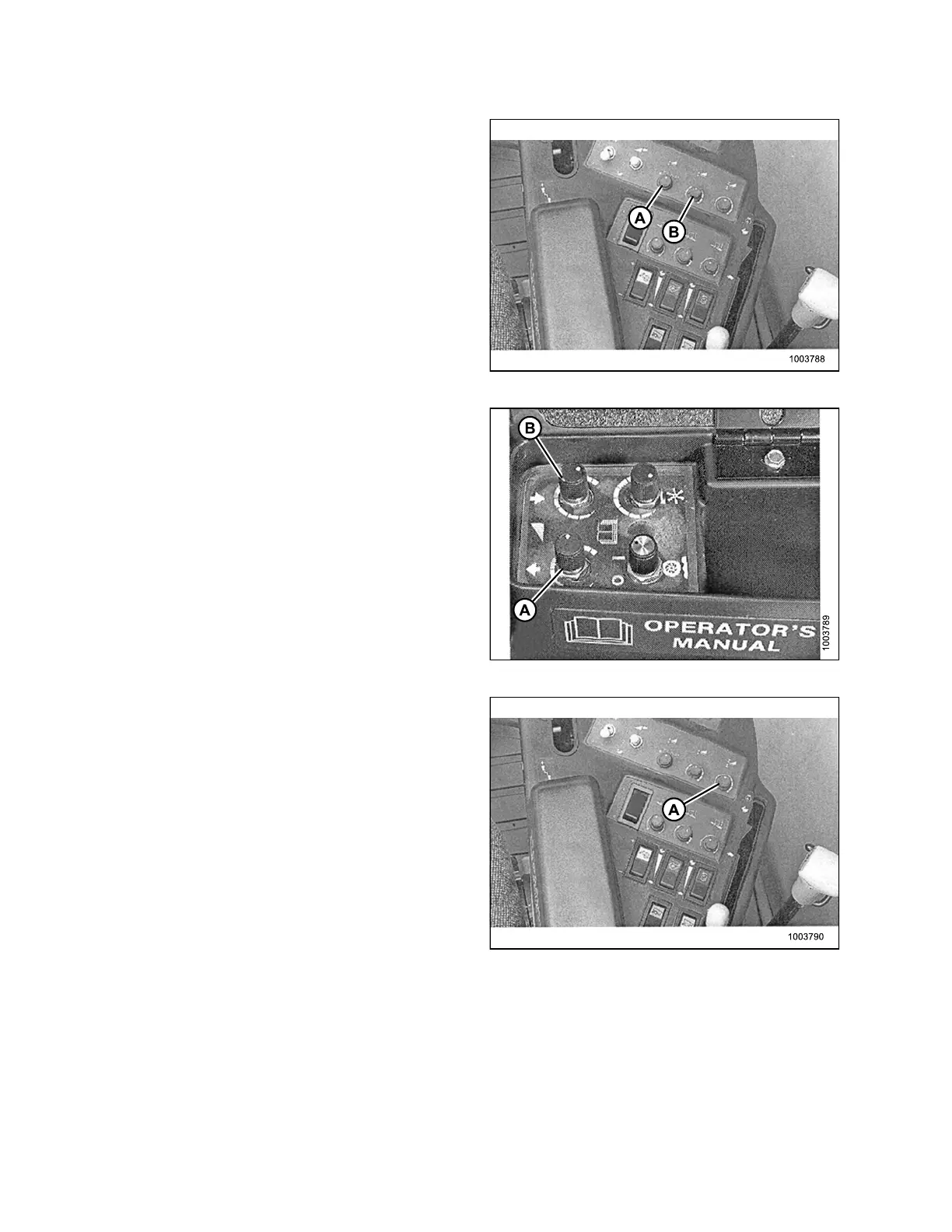

Figure 3.118: Combine Controls
5. Use header raise rate control (A) and header lower
rate control (B) as required to adjust the rate at which
the header raises or lowers to maintain the desired
header height.
Figure 3.119: Combine Controls
6. Use sensitivity control (A) to set the sensitivity to
changing ground conditions.
Figure 3.120: Combine Controls
147695 102 Revision A
