OPERATION
4. Ensure header float is unlocked.

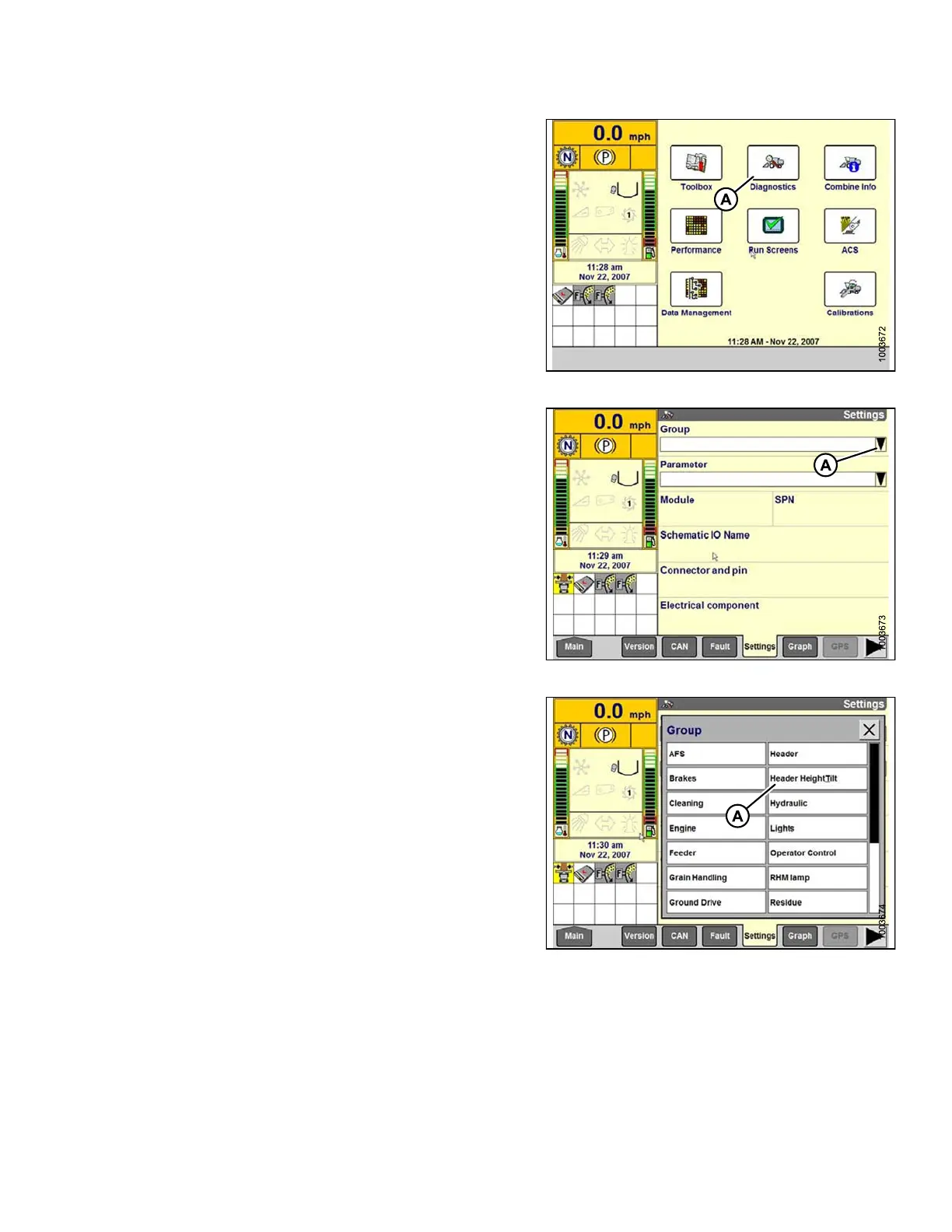

5. Select DIAGNOSTICS (A) on the MAIN screen. The
DIAGNOSTICS screen opens.
6. Select SETTINGS. The SETTINGS screen displays.
Figure 3.135: Case IH Combine Display
7. Select the GROUP arrow (A). The GROUP
window opens.
Figure 3.136: Case IH Combine Display
8. Select HEADER HE IG HT /T ILT (A). The PARAMETER
window opens.
Figure 3.137: Case IH Combine Display
147695 109 Revision A
