OPERATION
NOTE:
Always be sure there is a minimum 1/8 in. (2–3 mm)
clearance (A) between frame and back of bell
crank lever.
NOTE:
Float should be checked after levelling header. Refer
to Checking and Adjusting Header Float, page 58.

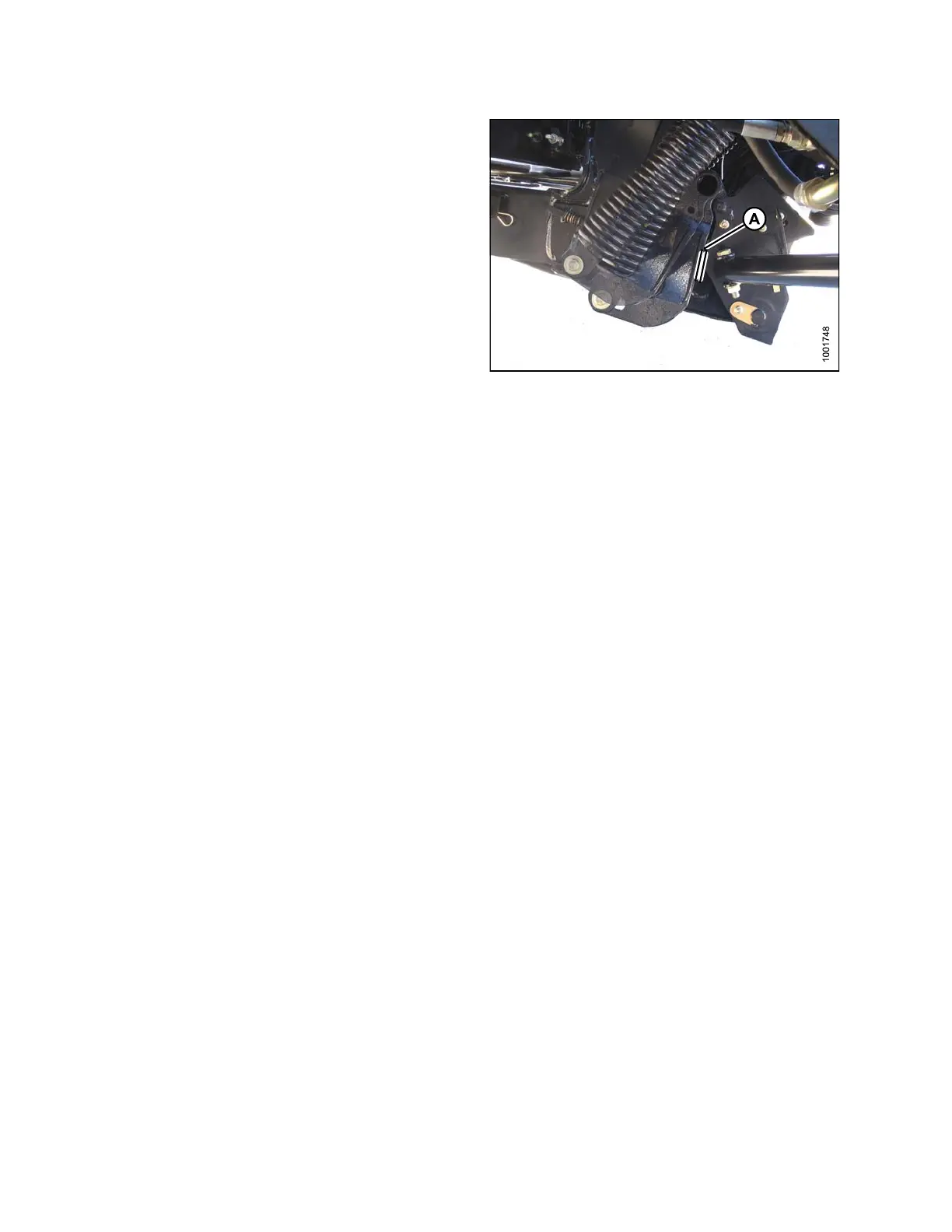

Figure 3.265: Bell Crank
147695
