MAINTENANCE AND SERVICING
To replace a section, follow these steps:
1. Stroke knife as required to center the section (A)
between guards.
2. Remove nuts (B).
3. Remove bars (C) an d lift section off the knife bar.
4. If section is under a splice bar (D), remove the bar.
5. Clean any dirt off of knife back and position new section
on knife.
IMPORTANT:
Do NOT mix fine or coarse sections on same knife.
6. Reposit ion
bars (C) and/or (D) and install lock nuts (B).
NOTE:
Ifreplacingascrew,makesuretofullyinsertit.Do
not use the nut to draw the screw into the knife bar.
7. Torque nuts to 7 ft·lbf (9.5 N·m).

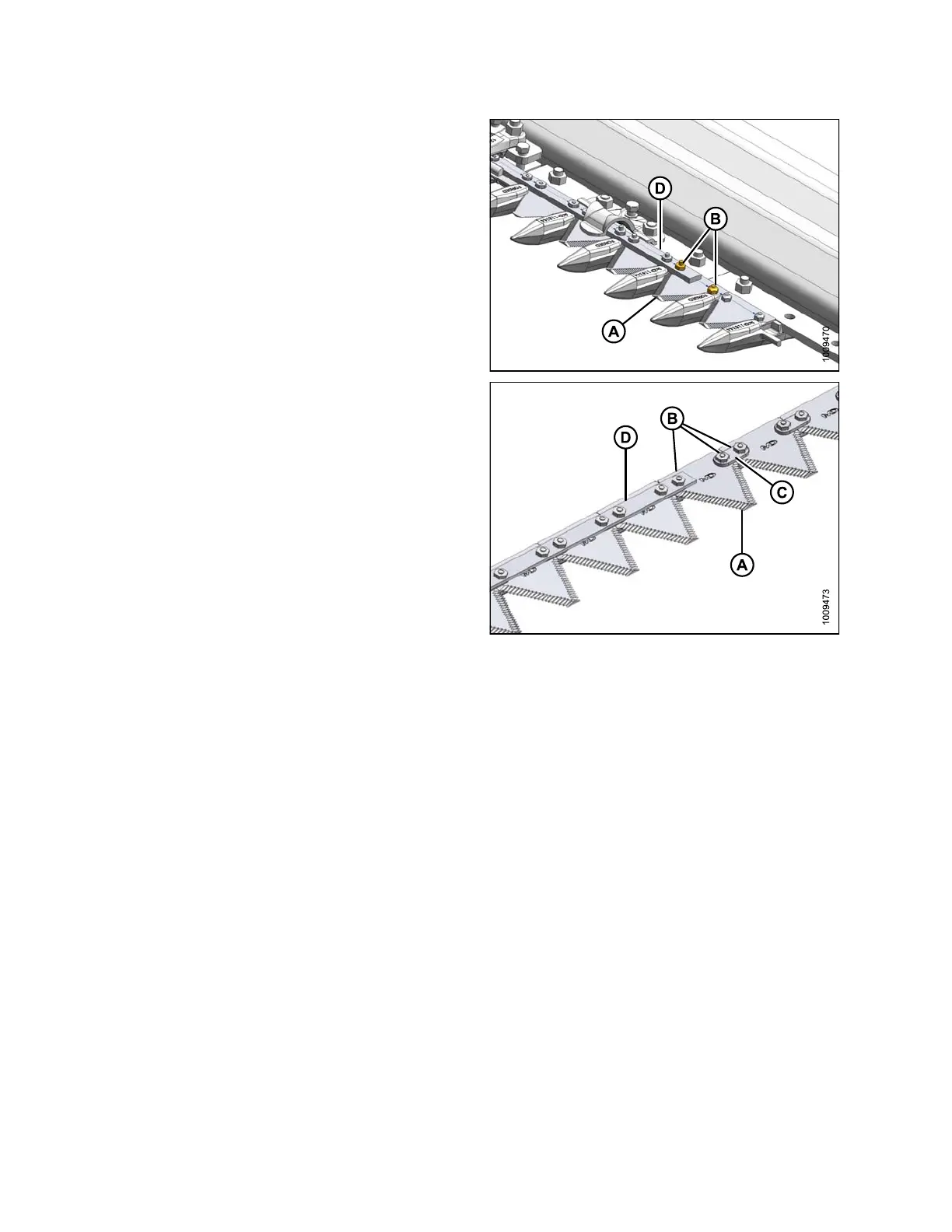

Figure 5.83: Cutterbar
147695 300 Revision A
