MAINTENANCE AN D SERVICING
3. Place knifehead shield (A) against endsheet as shown.
Orient the shield so that cutout matches profile of
knifehead and/or hold-downs.
4. Bend shield along slit to conform to endsheet.
5. Align mounting holes and then install two 3/8 in. x 1/2
Torx
®
head bolts (B).
6. Snug up bolts just enough so that shield can be
adjusted as close as possible to the knifehead.
7. Manually rotate knife drive box pulley to move knife
and check for areas of contact between the knifehead
and shield.
8. If required, adjust shield to avoid interference with
the knife.
9. Tighten bolts.

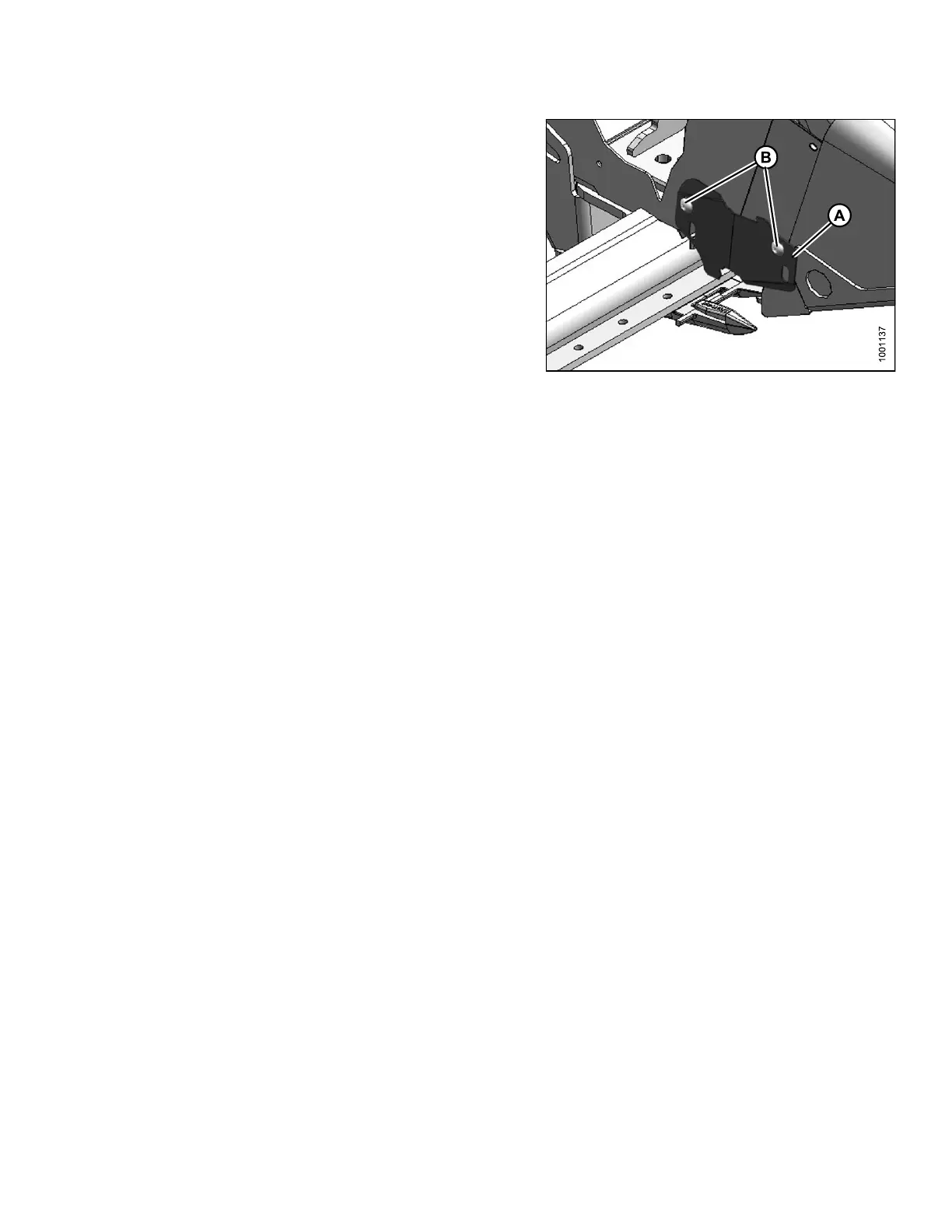

Figure 5.103: Knifehead Shield
147695 311 Revision A
