MAINTENANCE AN D SERVICING
4. Ensure that clearance between belt (A) and belt
guide (B) is 1/32 in. (1 mm).
5. Loosen three bolts (C), and adjust position of guide (B)
as required.
6. Tighten bolts (C).
7. Close endshield.

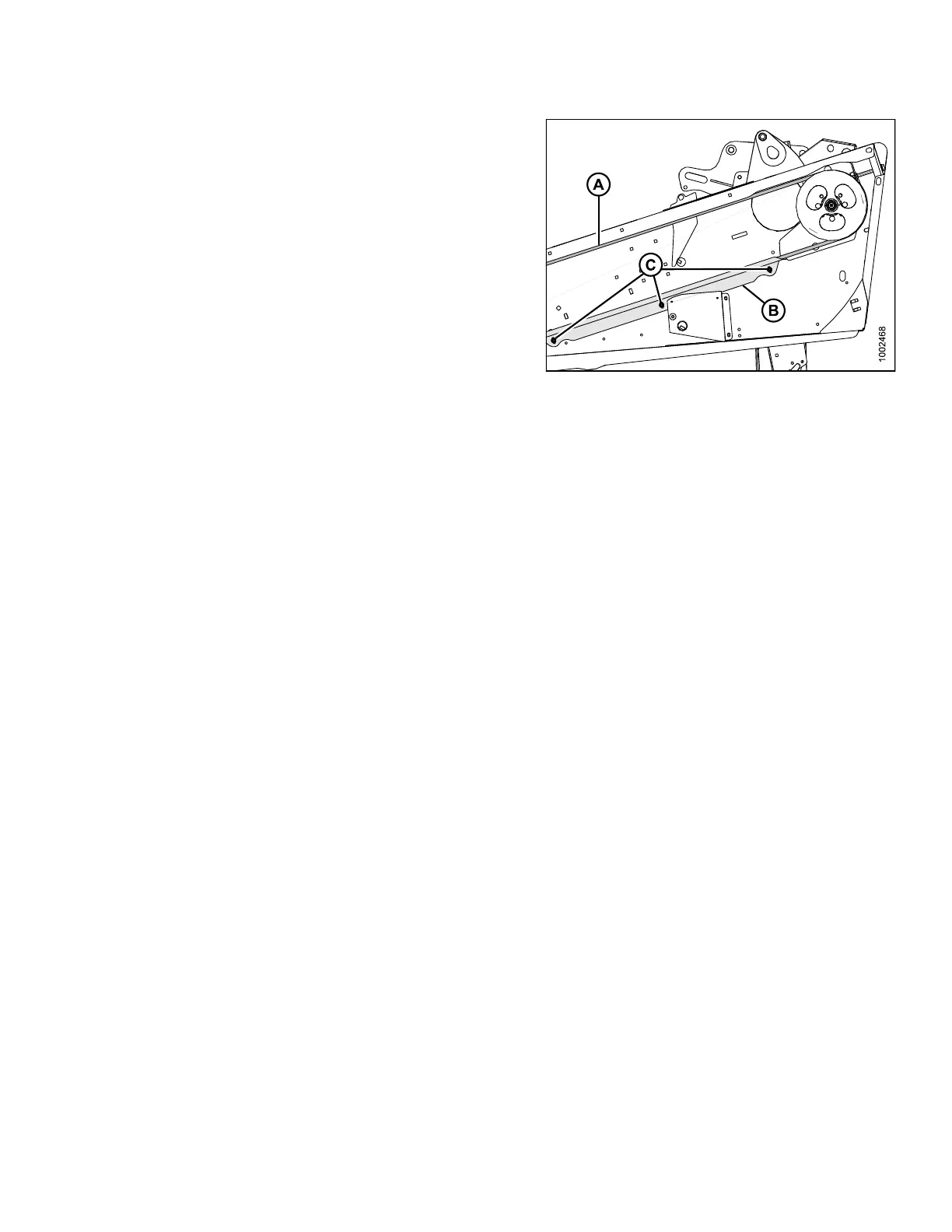

Figure 5.126: Knife Drive
