MAINTENANCE AN D SERVICING
5. Remove the draper connector straps (A) along the
draper joint.
6. Open the draper.

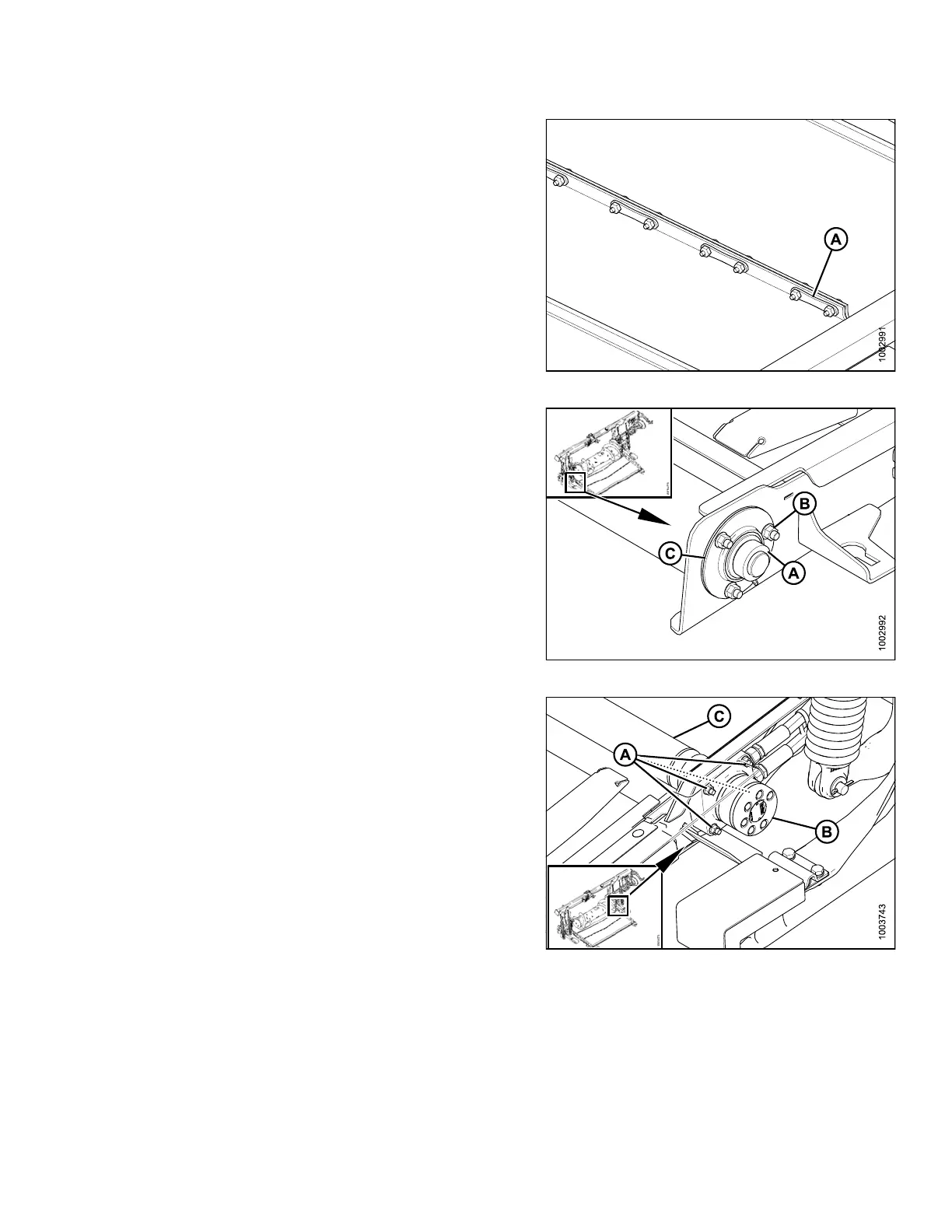

Figure 5.133: Draper Connection
7. Loosen setscrew and unlock the bearing lock collar (A).
8. Remove three bolts (B).
9. Remove bearing flangettes (C) and bearing.
Figure 5.134: Bearing
10. Remove the four bolts (A) that secure hydraulic
motor (B) to the frame. Slid e hyd ra ulic m o to r (B) awa y
from the drive roller.
11. Remove d rive roller (C).
Figure 5.135: Hydraulic Motor
147695 325 Revision A
