MAINTENANCE AN D SERVICING
2. Determ ine po s itio n of existing deflector (A) by
measuring gap (B) between deflector forward edge
and pan.

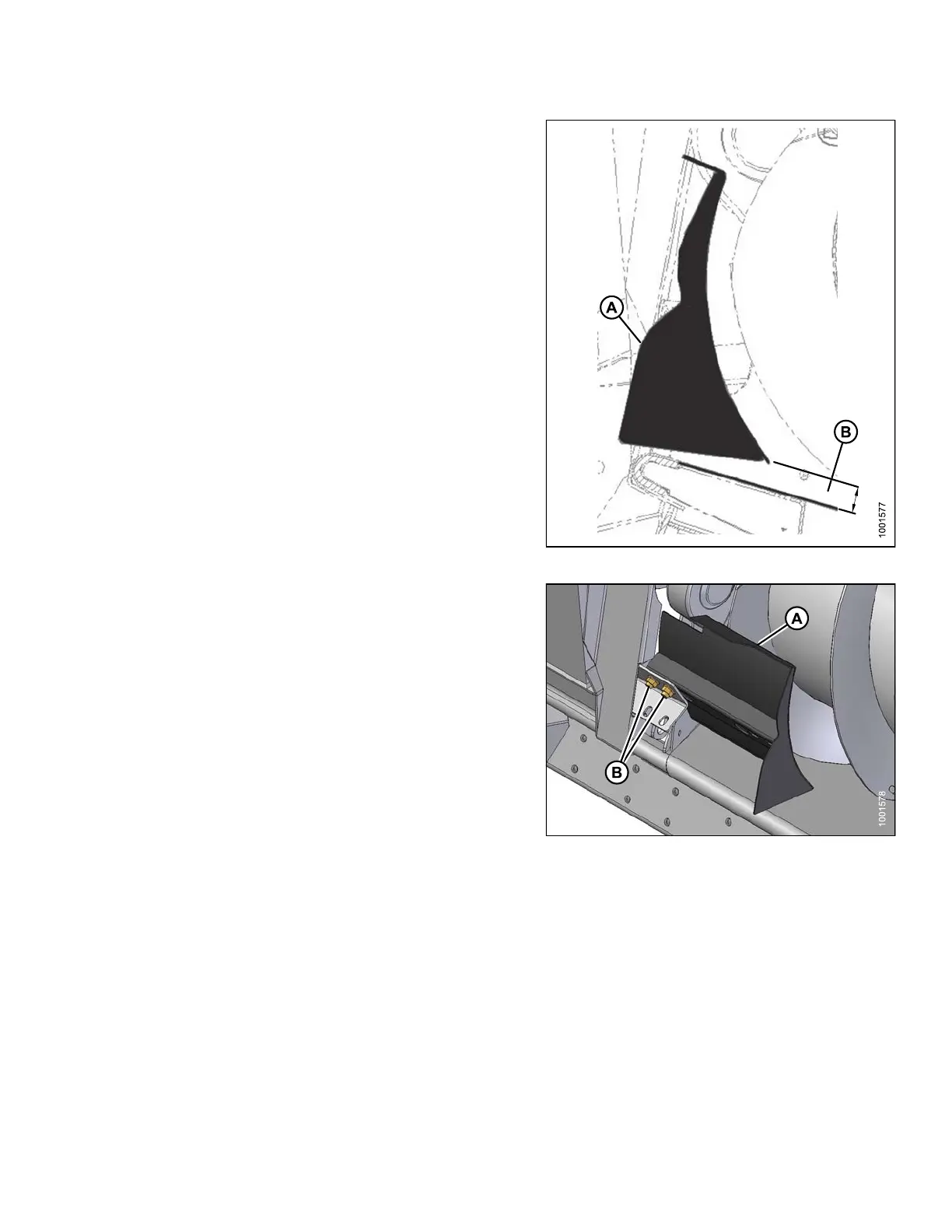

Figure 5.
153: Feed Deflector-End View
3. Remove two bolts and nuts (B) securing deflec tor (A)
to adapter frame, and remove deflector.
4. Position replacement defl ector, and secure with bolts
and nuts (B) (nuts toward combine). Maintain the
previous gap between deflector forward edge and pan.
5. Repeat for opposite deflector.
6. Attach header onto the combine. Refer to 4 Header
Attachment/Detachment, page 197.
7. After attaching header to combine, extend center-link
fully, and check gap between deflector and pan.
Maintain the 3/4–1 in. (19–25 mm) gap.
Figur
e 5.154: Feed Defl ector
147695 333 Revision A
