OPERATION
Cam Position 2 , Reel Position 3 or 4 is the recommended
starting position for most crops and conditions.
• This setting gives a fingertip speed approximately 20%
faster than the reel speed.
• If crops tend to stall on the cutterbar with the reel in a
forward position, the cam setting should be increased to
push the crop past the rear edge of the cutterbar.
• If the crop getting fluffed, or the flow across the drapers
is disrupted, the cam setting should be decreased.

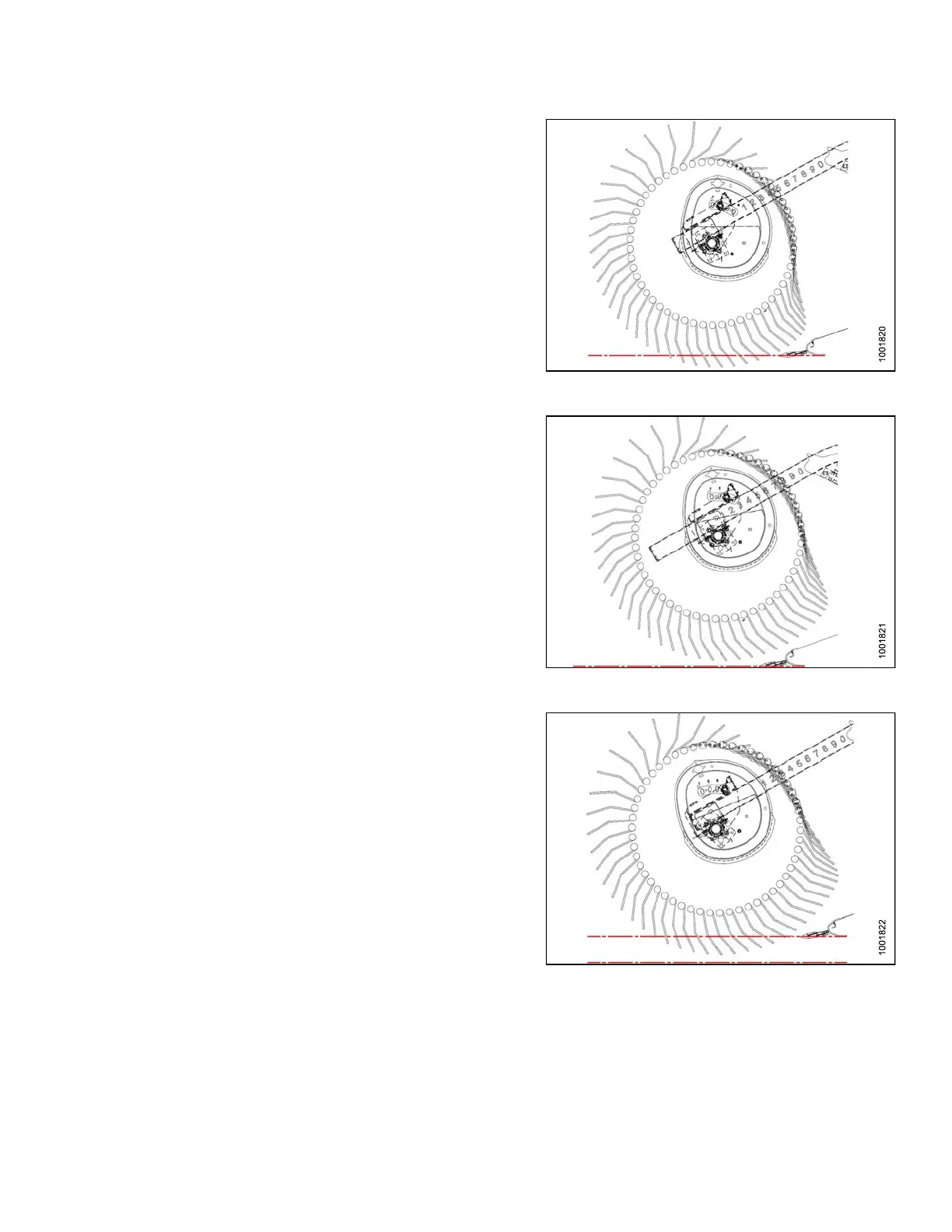

Figure 3.77: Finger Profile – Position 2
Cam Position 3, Reel Position 6 or 7 are mainly used to
leave long stubble.
• This position allows the reel to reach forward and lift the
crop across the knife and onto the drapers.
• This setting gives a finger tip speed approximately 30%
faster than the reel speed.
Figure 3
.78: Fing e r Profile – Position 3
Cam Pos
ition 4, Reel Position 2 or 3 is used with the reel
fully f
orward to leave the maximum amount of stubble in
lodged
crops.
•Thispo
sition allows the reel to reach forward and lift the
crop ac
ross the knife and onto the drapers.
•Thiss
etting giv es a finger tip speed approximately 35%
faste
r than the reel speed.
Figure 3.79: Finger Profile – Position 4
147695 81 Revision A
