RM0453 Rev 5 407/1450
RM0453 General-purpose I/Os (GPIO)
431

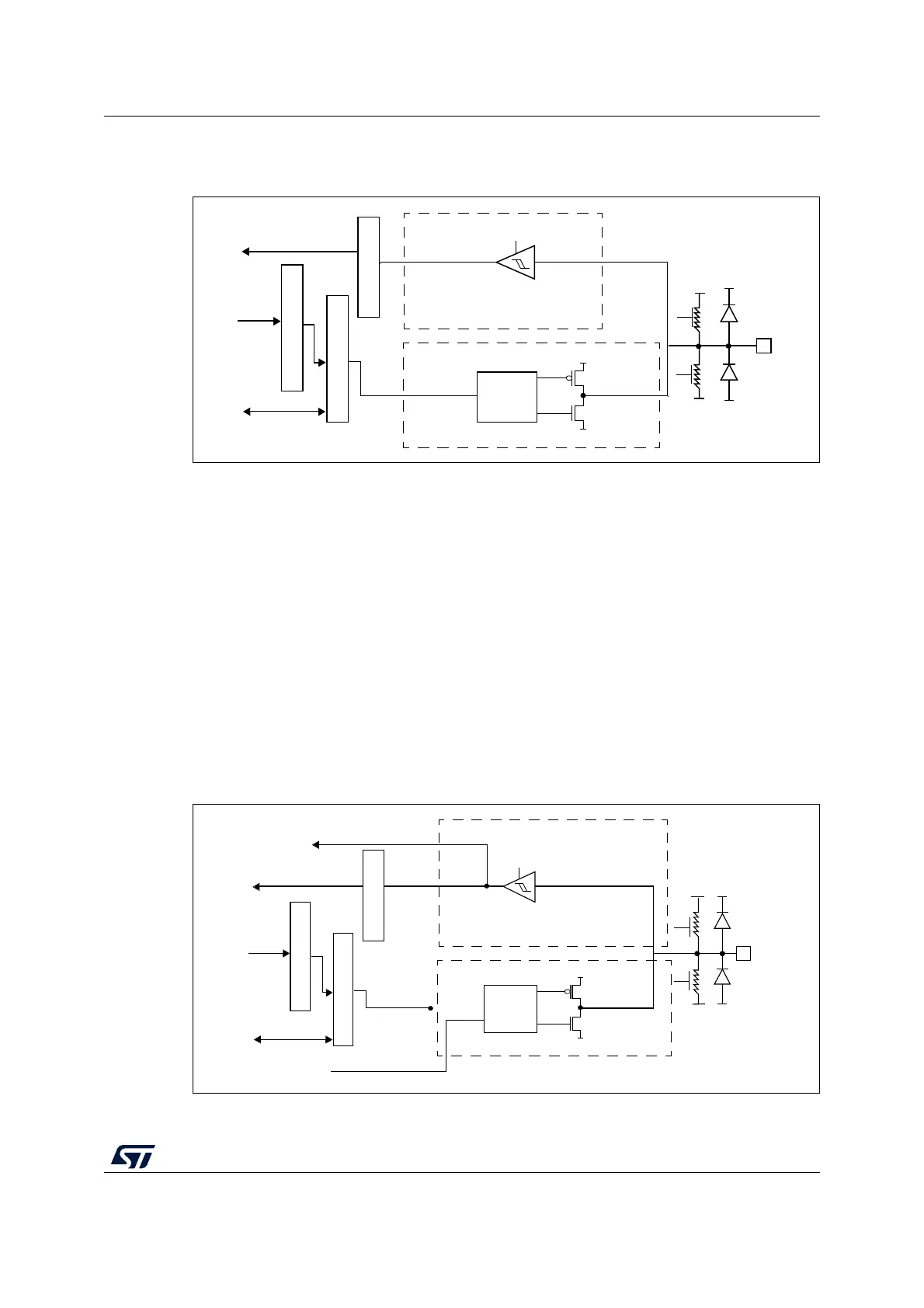

The figure below shows the output configuration of the I/O port bit.
Figure 46. Output configuration
10.3.11 Alternate function configuration
When the I/O port is programmed as alternate function, the following occurs:
• The output buffer can be configured in open-drain or push-pull mode.
• The output buffer is driven by the signals coming from the peripheral (transmitter
enable and data).
• The Schmitt trigger input is activated.
• The weak pull-up and pull-down resistors are activated or not depending on the value
in the GPIOx_PUPDR register.
• The data present on the I/O pin are sampled into the input data register every AHB
clock cycle.
• A read access to the input data register gets the I/O state.
The figure below shows the alternate function configuration of the I/O port bit.
Figure 47. Alternate function configuration
Push-pull or
Open-drain
Output
control
V
DDIOx
V
SS
TTL Schmitt
trigger
on
Input driver
Output driver
P-MOS
N-MOS
Input data register
Output data register
Read/write
Read
Bit set/reset registers
Write
on/off
pull
pull
on/off
V
DDIOx
V
SS
V
SS
V
DDIOx
protection
diode
protection
diode
down
up
I/O pin
MS31478V1
MSv34756V2
Alternate function output
Alternate function input
push-pull or
open-drain
From on-chip
peripheral
To on-chip
peripheral
Output
control
V
DD
V
SS
TTL Schmitt
trigger
on
Input driver
Output driver
P-MOS
N-MOS
Input data register
Output data register
Read/write
Read
Bit set/reset registers
Write
on/off
on/off
VDDIOx
V
SS
V
SS
protection
diode
protection
diode
Pull
Pull
I/O pin
down
up
VDDIOx
