RM0453 Rev 5 917/1450
RM0453 General-purpose timers (TIM16/TIM17)
944

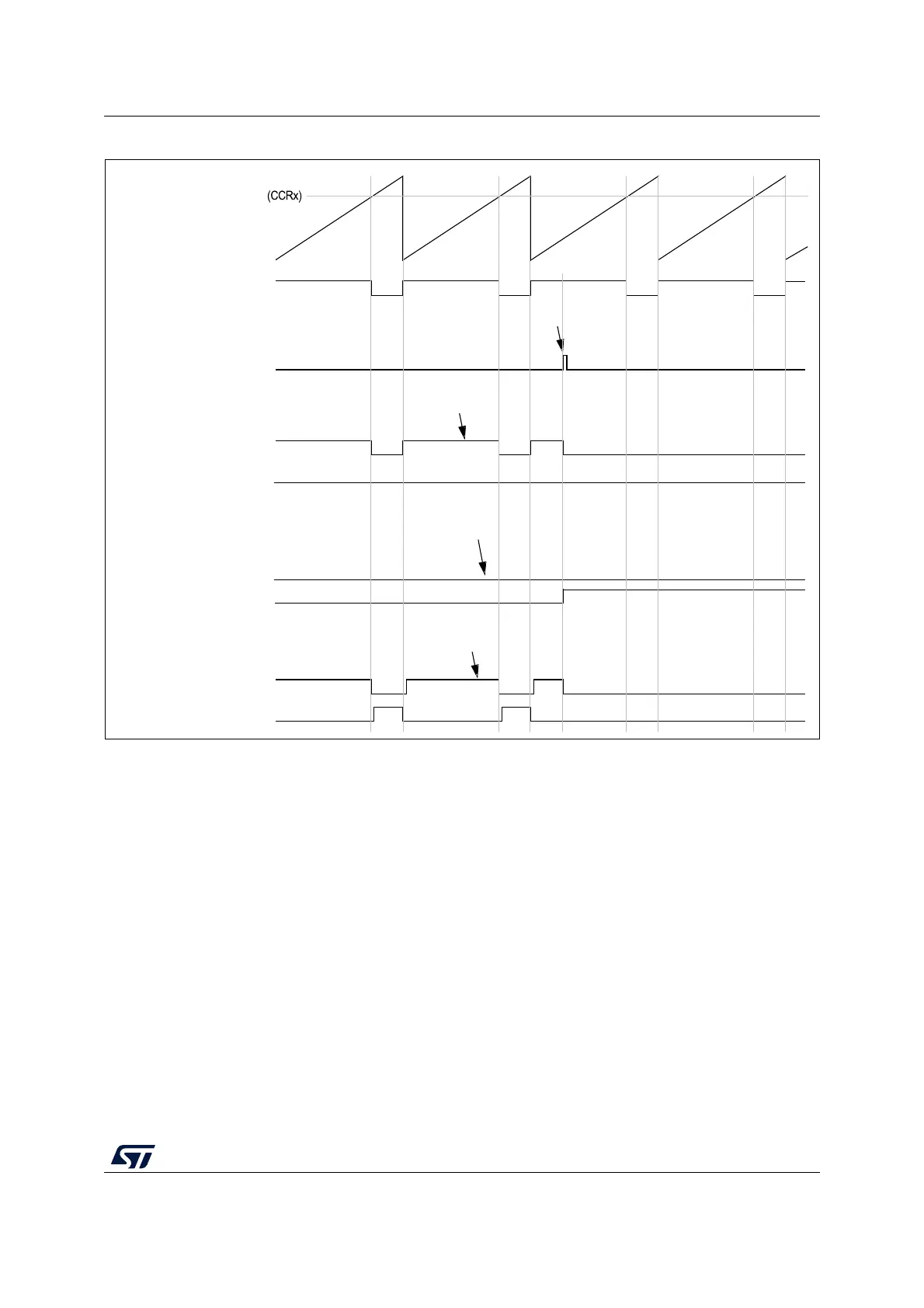

Figure 260. 6-step generation, COM example (OSSR=1)
MSv62343V1
Example 1
Example 2
Example 3
tim_ocx
tim_ocxn
tim_ocx
tim_ocxn
tim_ocx
tim_ocxn
Counter (CNT)
tim_ocxref
COM event
Write COM to 1
CCxE = 1
CCxNE = 0
OCxM = 0010 (forced inactive)
Write OCxM to 0100
CCxE = 1
CCxNE = 0
OCxM = 0100
CCxE = 1
CCxNE = 0
OCxM = 0100 (forced inactive)
Write CCxNE to 1
and OCxM to 0101
CCxE = 0
CCxNE = 1
OCxM = 0101
CCxE = 1
CCxNE = 0
OCxM = 0010 (forced inactive)
Write CCxNE to 0
and OCxM to 0100
CCxE = 1
CCxNE = 1
OCxM = 0100
