Low-power timer (LPTIM) RM0453
952/1450 RM0453 Rev 5
- Set-once mode activated:
Note that when the WAVE bitfield in the LPTIM_CFGR register is set, the Set-once mode is
activated. In this case, the counter is only started once following the first trigger, and any
subsequent trigger event is discarded as shown in Figure 265.

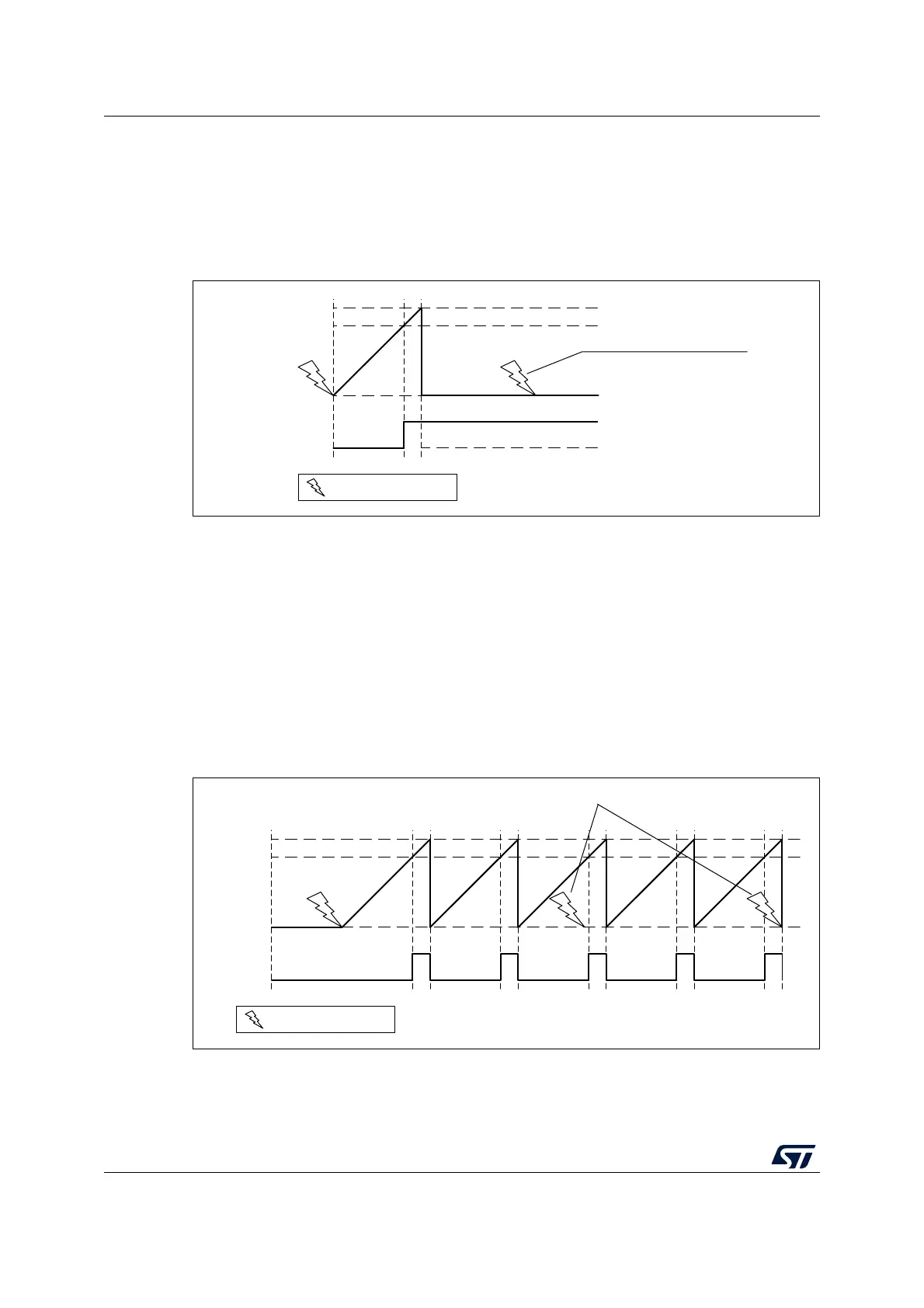

Figure 265. LPTIM output waveform, Single counting mode configuration
and Set-once mode activated (WAVE bit is set)
In case of software start (TRIGEN[1:0] = ‘00’), the SNGSTRT setting starts the counter for
one-shot counting.
Continuous mode
To enable the continuous counting, the CNTSTRT bit must be set.
In case an external trigger is selected, an external trigger event arriving after CNTSTRT is
set, starts the counter for continuous counting. Any subsequent external trigger event is
discarded as shown in Figure 266.
In case of software start (TRIGEN[1:0] = ‘00’), setting CNTSTRT starts the counter for
continuous counting.
Figure 266. LPTIM output waveform, Continuous counting mode configuration
SNGSTRT and CNTSTRT bits can only be set when the timer is enabled (The ENABLE bit
is set to ‘1’). It is possible to change “on the fly” from One-shot mode to Continuous mode.
MSv39231V2
PWM
0
Compare
LPTIM_ARR
Discarded trigger
External trigger event
MSv39229V2
PWM
0
Compare
LPTIM_ARR
Discarded triggers
External trigger event
