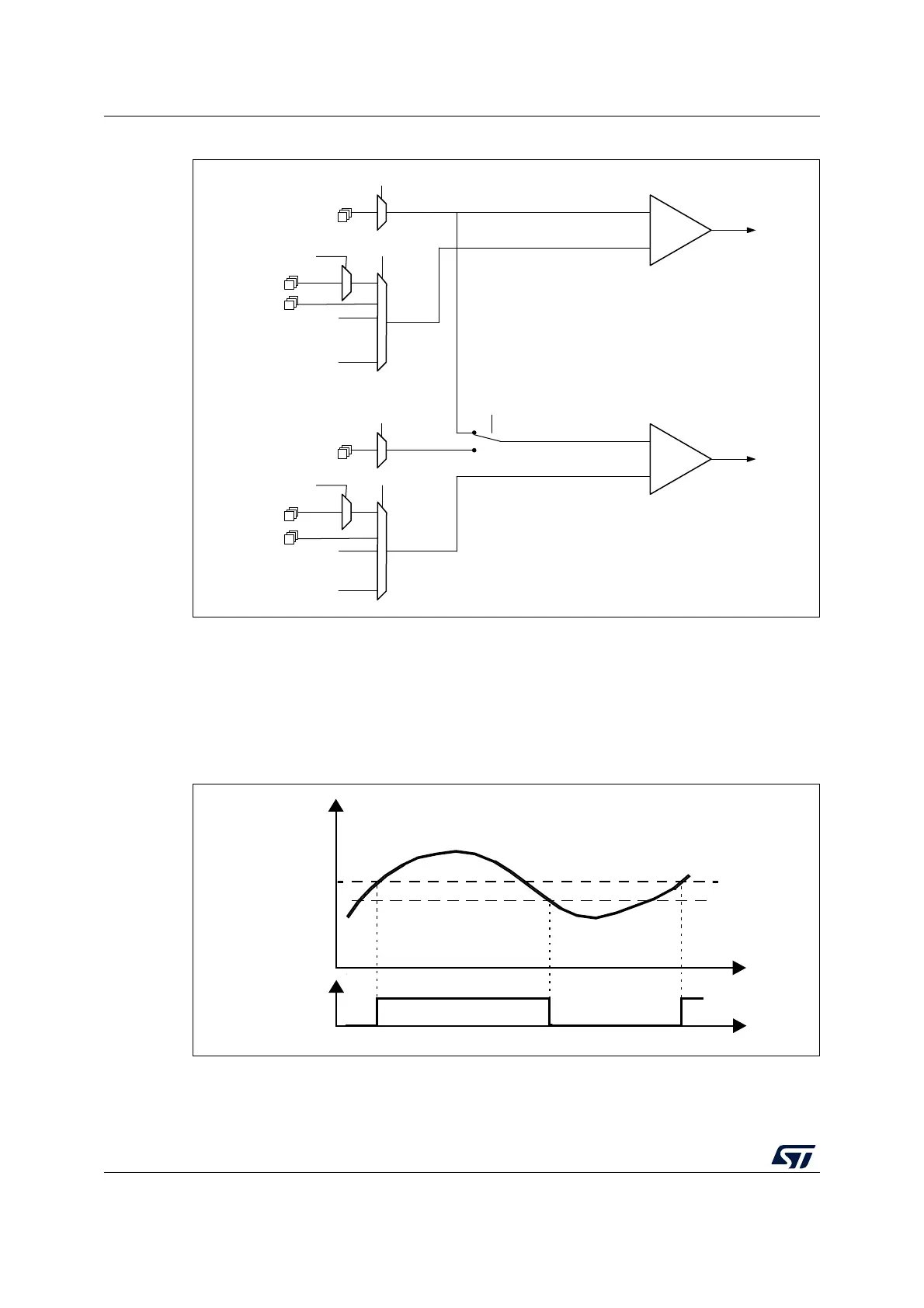

Figure 95. Window mode
21.3.6 Hysteresis
The comparator includes a programmable hysteresis to avoid spurious output transitions in
case of noisy signals. The hysteresis can be disabled if it is not needed (for instance when
exiting from low-power mode) to be able to force the hysteresis value using external
components.
Figure 96. Comparator hysteresis
MSv37667V1
COMPy_INM I/Os
COMPy_INP I/Os
Internal sources
COMPy_INP
COMPy_INM
COMPy_INMSEL
+
-
COMPy
.
.
WINMODE
COMPx_INM I/Os
COMPx_INP I/Os
Internal sources
COMPx_INP
COMPx_INM
COMPx_INPSEL
COMPx_INMSEL
+
-
COMPx
.
.
COMPx_INPSEL
COMPx_INM I/Os
COMPx_INMESEL
COMPy_INMESEL
COMPy_INM I/Os
MS19984V1
INP
INM
INM - V
hyst
COMP_OUT
