STMicroelectronics STM32WL5 Series User Manual

AES hardware accelerator (AES) RM0453
652/1450 RM0453 Rev 5
Counter (CTR) mode

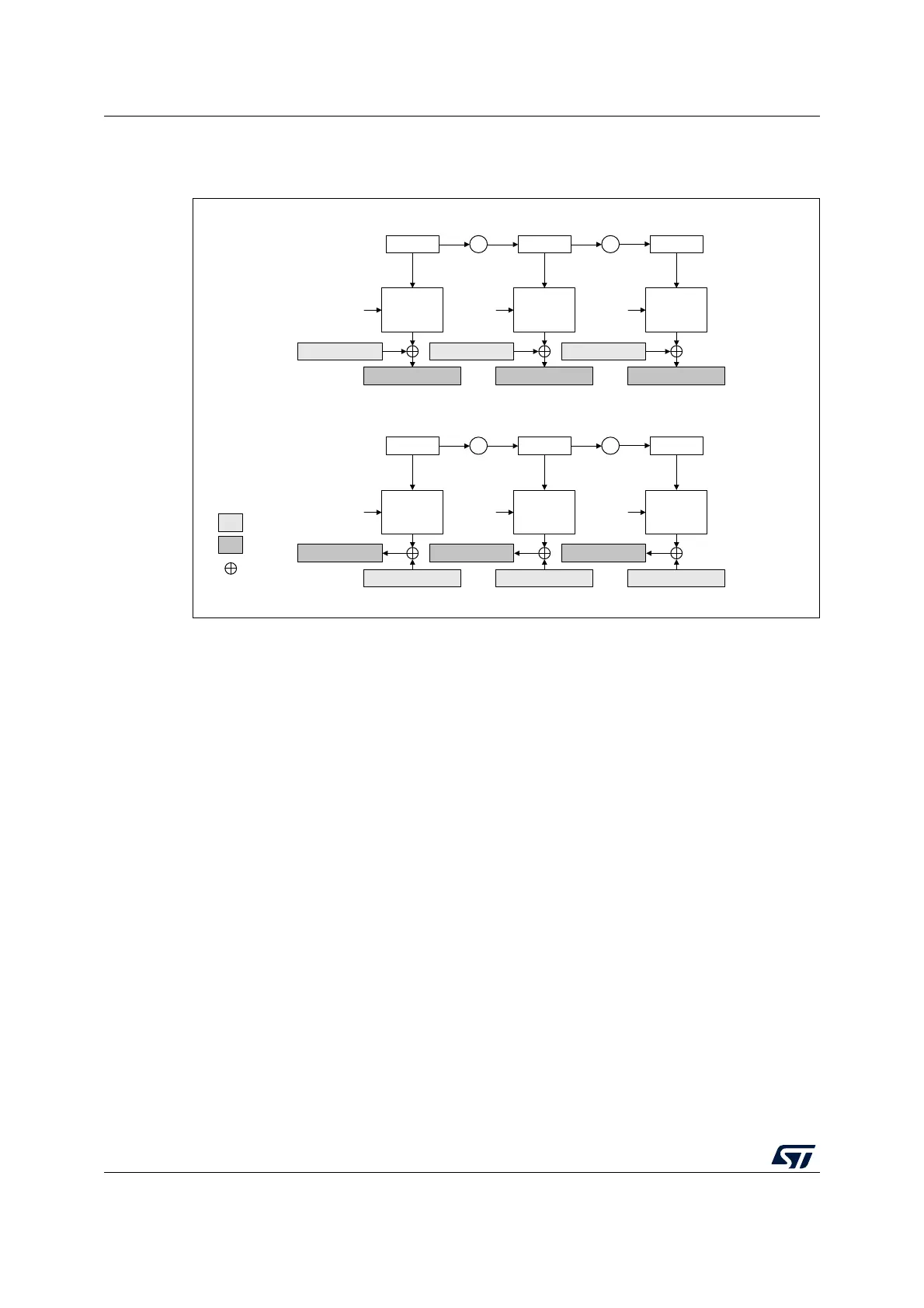

Figure 104. CTR encryption and decryption principle
The CTR mode uses the AES core to generate a key stream. The keys are then XOR-ed
with the plaintext to obtain the ciphertext as specified in NIST Special Publication 800-38A,
Recommendation for Block Cipher Modes of Operation.
Note: Unlike with ECB and CBC modes, no key scheduling is required for the CTR decryption,
since in this chaining scheme the AES core is always used in encryption mode for producing
the key stream, or counter blocks.
MSv42142V1
Encryption
Plaintext block 1
Ciphertext block 1 Ciphertext block 2 Ciphertext block 3
Encrypt Encrypt Encrypt
Decryption
Ciphertext block 1 Ciphertext block 2 Ciphertext block 3
Decrypt Decrypt Decrypt
input
output
Legend
key key key
key key key
Plaintext block 2 Plaintext block 3
Counter Counter Counter
+1 +1
Plaintext block 1 Plaintext block 2 Plaintext block 3
Counter Counter Counter
+1 +1
XOR
value value + 1 value + 2
value value + 1 value + 2
