Operation overview
The 2601B-PULSE is a single channel source-measure instrument with the full SMU functionality of a
Model 2601B SourceMeter
®
Instrument plus a high-speed current pulser.
The instrument operates as a SMU or as a current pulser. Internally, a solid-state switch routes the
SMU or pulser to the output terminals, as shown in the following figure.

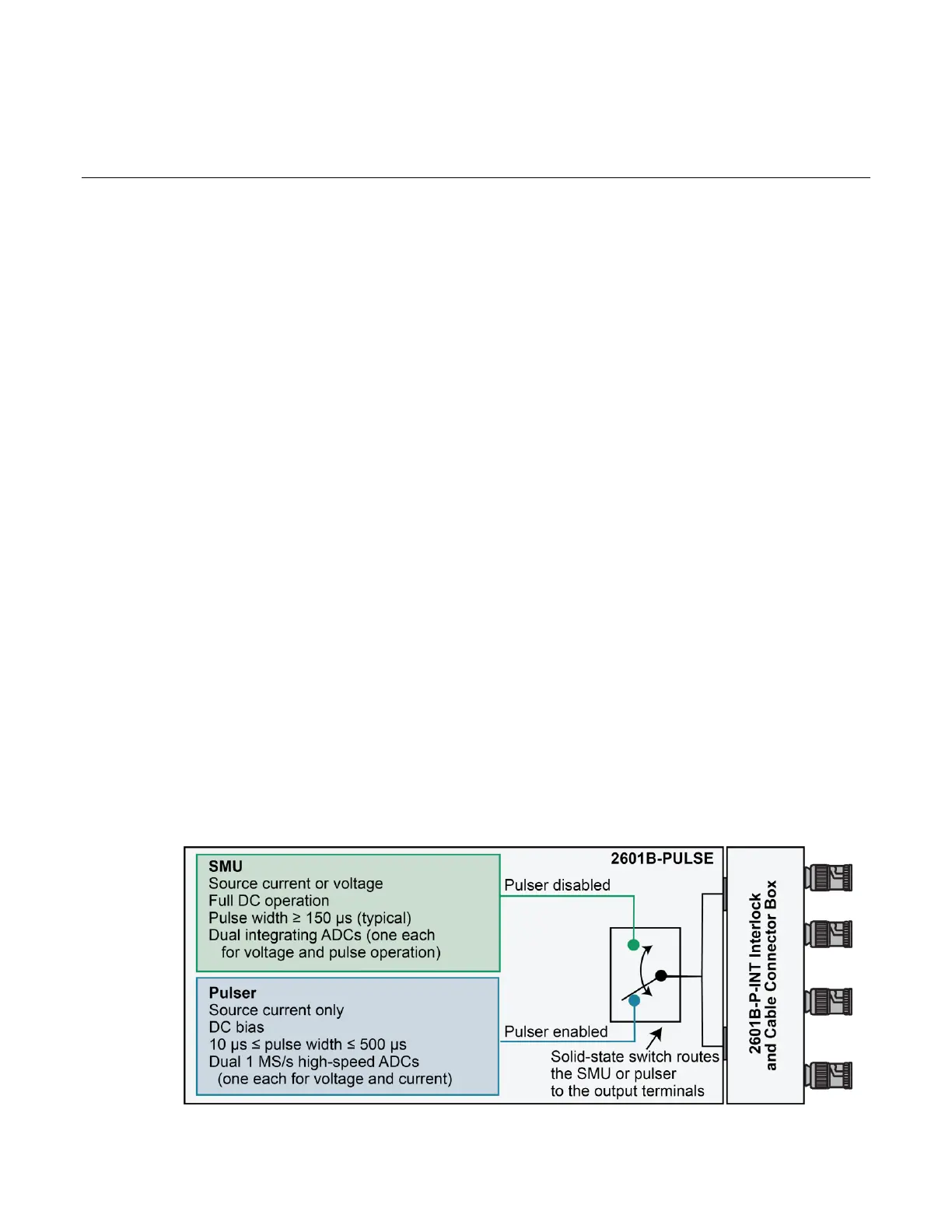

Figure 35: SMU and pulser operation
Section 4
Sourcing and measuring
