Model 2601B-PULSE System SourceMeter Instrument Reference Manual Section 4: Sourcing and measuring
2601B-PULSE-901-01A April 2020 4-23

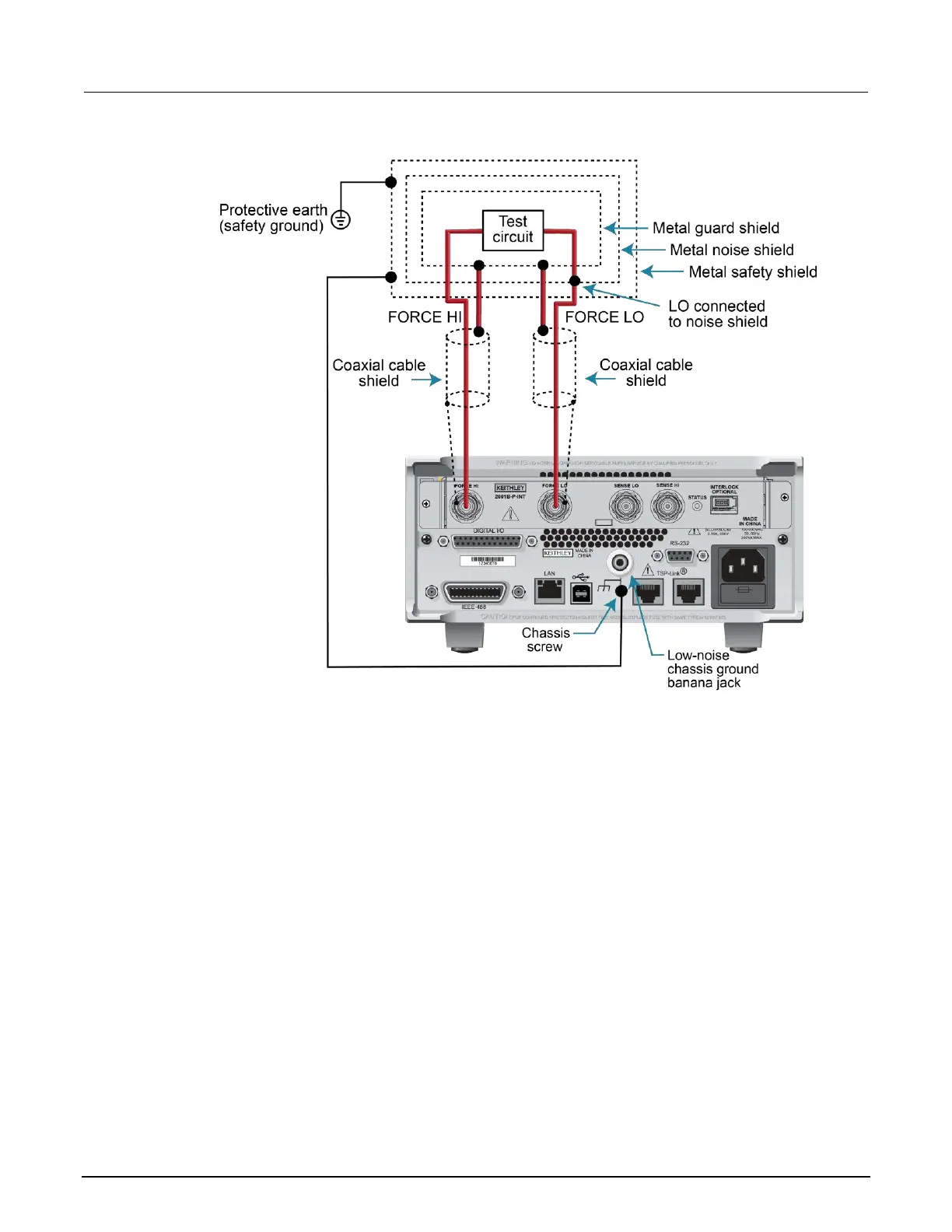

Figure 50: Using shielding and guarding together
Test fixture
A test fixture can be used to house a device or test circuit. The test fixture can be a metal or
nonconductive enclosure, and is typically equipped with a lid and an interlock switch. When properly
used, the output of the 2601B-PULSE will turn off when the lid of the test fixture is opened. The test
circuit is mounted inside the test fixture. When hazardous voltages (>30 V
RMS
, 42 V
PEAK
) will be
present, the test fixture must meet the following safety requirements.
