Model 2601B-PULSE System SourceMeter Instrument Reference Manual Section 13: Calibration
2601B-PULSE-901-01A April 2020 13-5
Uninstalling the 2601B-P-INT
The 2601B-PULSE is normally operated with the 2601B-P-INT Interlock and Cable Connector Box
installed on the rear panel of the instrument. To perform the calibration and adjust procedures, you
must uninstall the 2601B-P-INT.
To uninstall the 2601B-P-INT:
1. Remove power connections from the 2601B-PULSE.
2. Use a Phillips head screwdriver to remove the screws that secure the 2601B-P-INT to the rear
panel of the 2601B-PULSE.

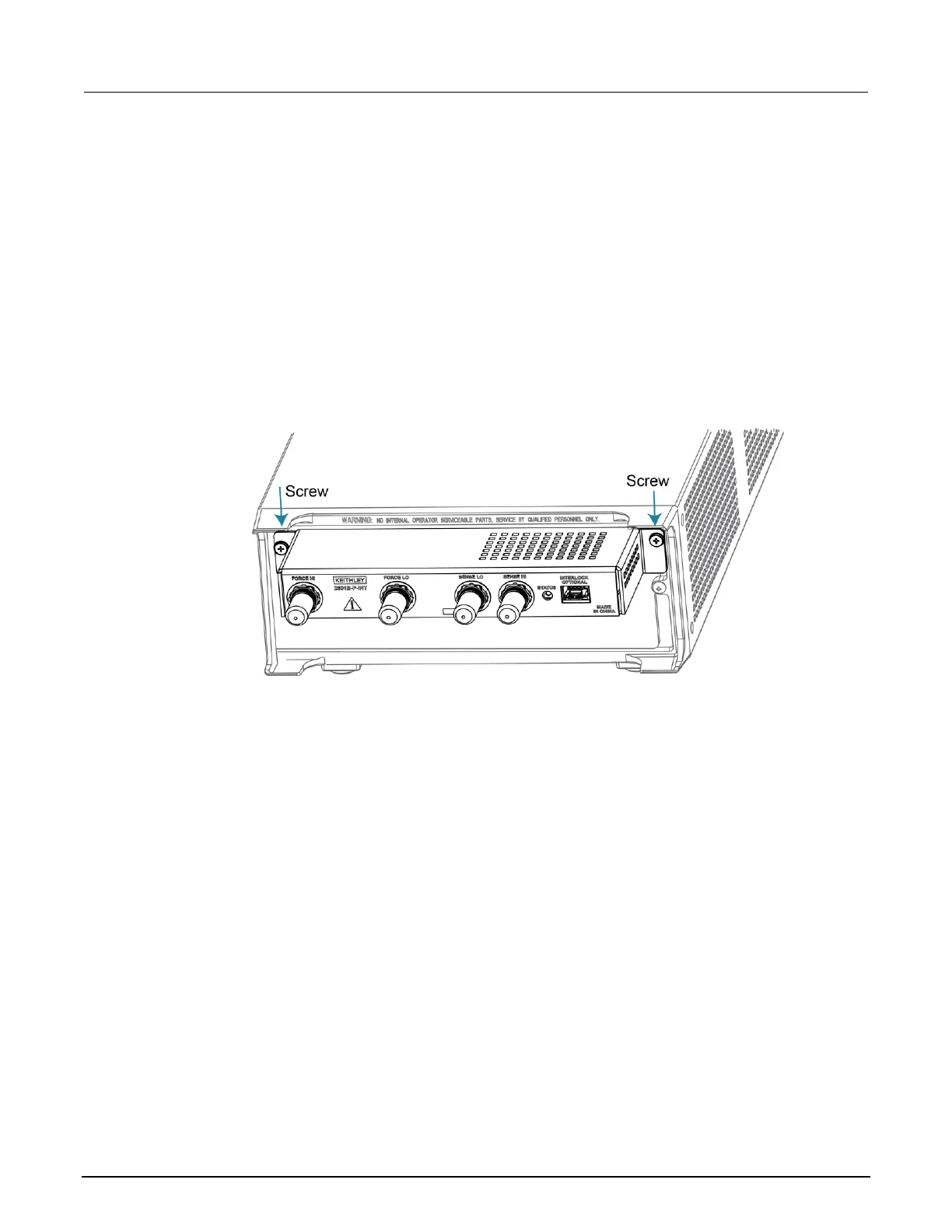

Figure 150: 2601B-P-INT mounting screws
3. Pull the 2601B-P-INT straight back from the rear panel to detach it from the terminal strips.
4. Keep the screws and 2601B-P-INT for reinstallation.
Restoring factory defaults
Before performing the calibration procedures, restore the instrument to its factory defaults.
To restore the factory defaults:
1. Press the MENU key.
2. Scroll to the SETUP menu item, and then press the ENTER key.
3. Scroll to the RECALL menu item, and then press the ENTER key.
4. Scroll to the INTERNAL menu item, and then press the ENTER key.
5. Scroll to the FACTORY menu item.
6. Press the ENTER key to restore defaults.
