Section 8: Maintenance Model 2601B-PULSE System SourceMeter Instrument Reference Manual
8-6 2601B-PULSE-901-01A April 2020
Using TSB to upgrade the firmware
After downloading the new flash file from tek.com/keithley, you can use Test Script Builder (TSB) to
upgrade the firmware of your 2601B-PULSE.
To upgrade the firmware using Test Script Builder:
1. Start Test Script Builder.
2. On the Instrument Console toolbar, click the Open Instrument icon.

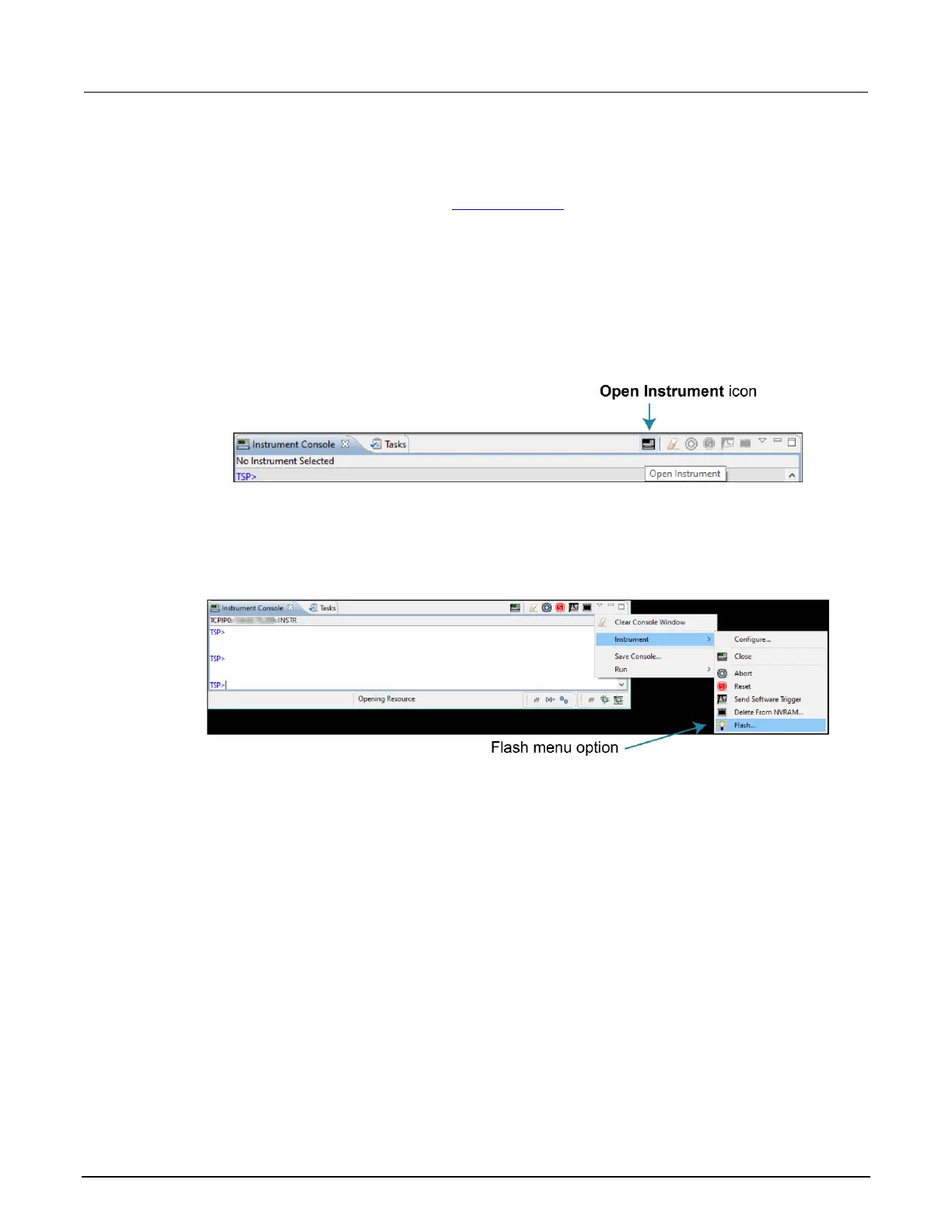

Figure 127: Open Instrument icon
3. Select your instrument from the Select Instrument dialog box.
4. On the Instrument Console toolbar, select the down arrow and select Instrument > Flash.
Figure 128: Flash menu option
5. For Select or enter a firmware image file, use the browser to select the new firmware.
6. For Select a replacement mode, select Upgrade to install a later version of firmware or
Downgrade to install an earlier version of firmware.
7. Wait until the upgrade or downgrade is complete and the instrument shows the opening display.
