Tektronix Keithley 2601B-PULSE Reference Manual

Model 2601B-PULSE System SourceMeter Instrument Reference Manual Section 4: Sourcing and measuring
2601B-PULSE-901-01A April 2020 4-71

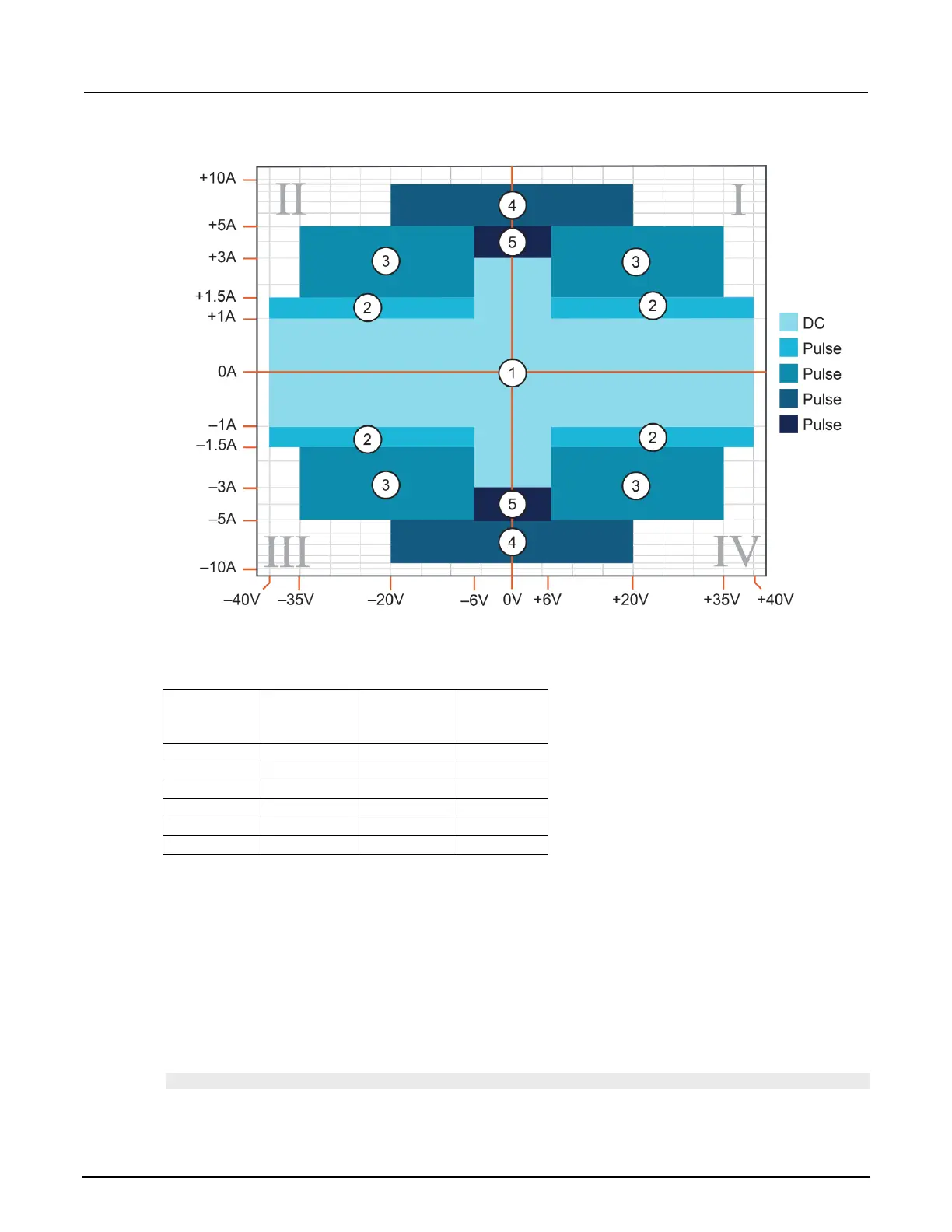

Figure 69: Pulsing in the extended operating area (EOA)
Pulse region specification
Region
(quadrant
diagram)
Region
maximum
Maximum
pulse width
Maximum
duty cycle
1
1 A at 40 V
DC, no limit
100%
1
3 A at 6 V
DC, no limit
100%
2
1.5 A at 40 V
100 ms
25%
3
5 A at 35 V
4 ms
4%
4
10 A at 20 V
1.8 ms
1%
5
5 A at 6 V
10 ms
10%
Configuring and running sweeps
Use the following topics to configure and run a sweep.
Configuring compliance limits remotely
Voltage and current limits can be configured using the smua.trigger.source.limitY attribute,
which sets the sweep source limits. For example, to set the SMU A sweep limit to 10 V, execute:
smua.trigger.source.limitv = 10
