Model 2601B-PULSE System SourceMeter Instrument Reference Manual Section 6: Triggering
2601B-PULSE-901-01A April 2020 6-17
Pulse train example
The SMU programming example below illustrates how to use two timers: One to control the pulse
period, a second to control the pulse width. The example configures the timers and SMU as follows:
Timer 1: Pulse period timer
• Set the delay attribute to the appropriate pulse period (see the following figure).
• Configure the timer to start when the sweep is initiated.
• Enable the pass-through attribute so that the timer generates a trigger event at the start of the
first delay.
• Set the count equal to one less than the total number of pulses to output.

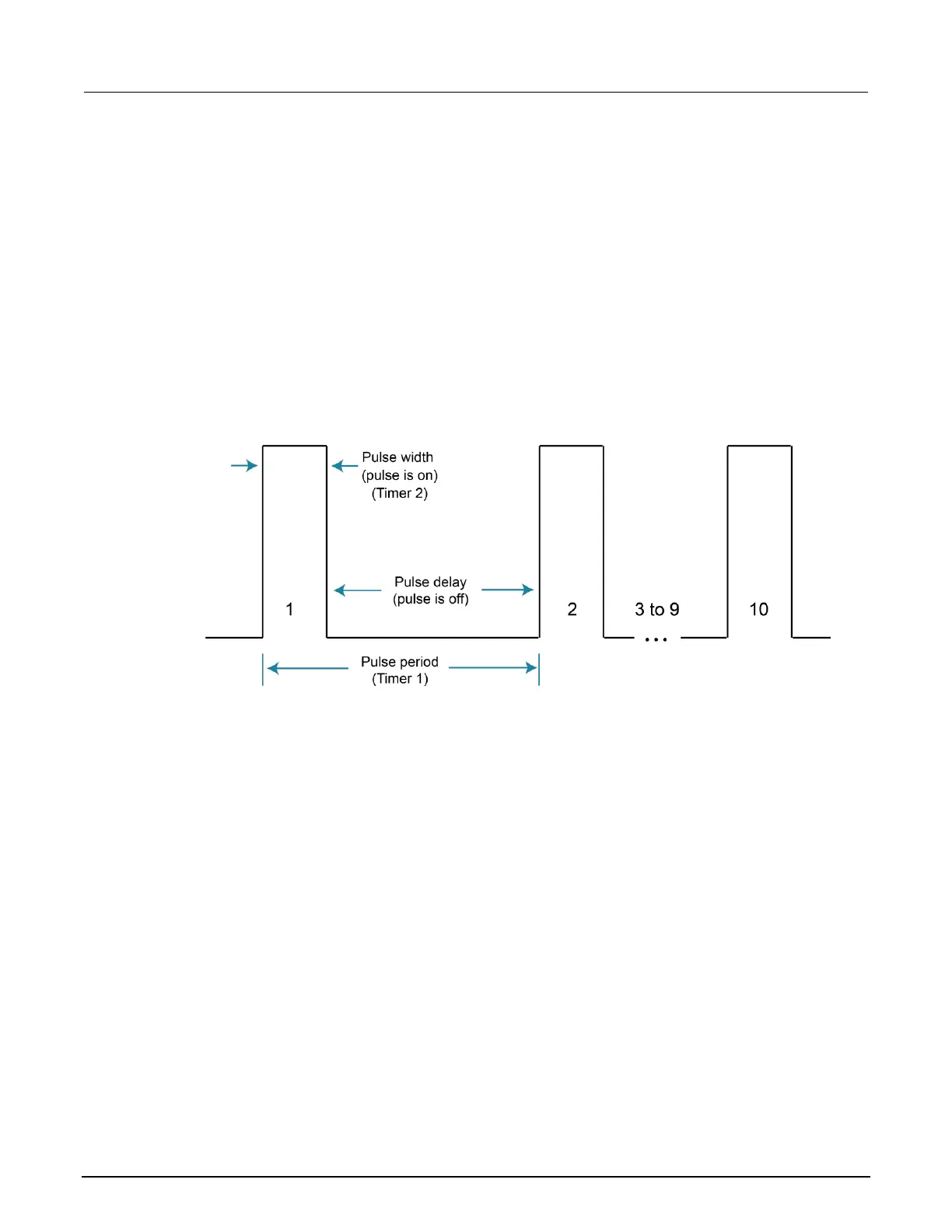

Figure 81: Pulse train
Timer 2: Pulse width timer
• Set the delay attribute to an appropriate pulse width (see the following figure).
• Set the stimulus input to the event ID of Timer 1 (the start of each pulse is the start of the pulse
period).
• Set the count equal to 1 so that only one pulse is issued per period.
SMU A
• Set the source stimulus input to the event ID of Timer 1 so that the source action starts when the
period starts.
• Set the end pulse action to smua.SOURCE_IDLE so that the output is returned to the idle level
after the pulse completes.
• Set the end pulse stimulus input to the event ID of Timer 2 so that the end pulse action executes
when the pulse width timer expires.
• Set the trigger count equal to 1.
• Set the arm count equal to the total number of pulses to output.
