Section 13: Calibration Model 2601B-PULSE System SourceMeter Instrument Reference Manual
13-18 2601B-PULSE-901-01A April 2020
-- Pulse is done. Turn off the output.
smua.source.output = 0
smua.pulser.enable = 0
-- Retrieve measurements as a comma-separated list.
format.data = format.ASCII
printbuffer(1, 1, smua.nvbuffer1) -- current measurements
printbuffer(1, 1, smua.nvbuffer2) -- voltage measurements
Bias source accuracy
For detail on wiring the pulse load, refer to Pulse loads (on page 13-3).
To verify the 2601B-PULSE output bias source accuracy is within specified limits, perform
these steps:
1. With the power off, connect the digitizer to the 2601B-PULSE terminals as shown in the
following figure.

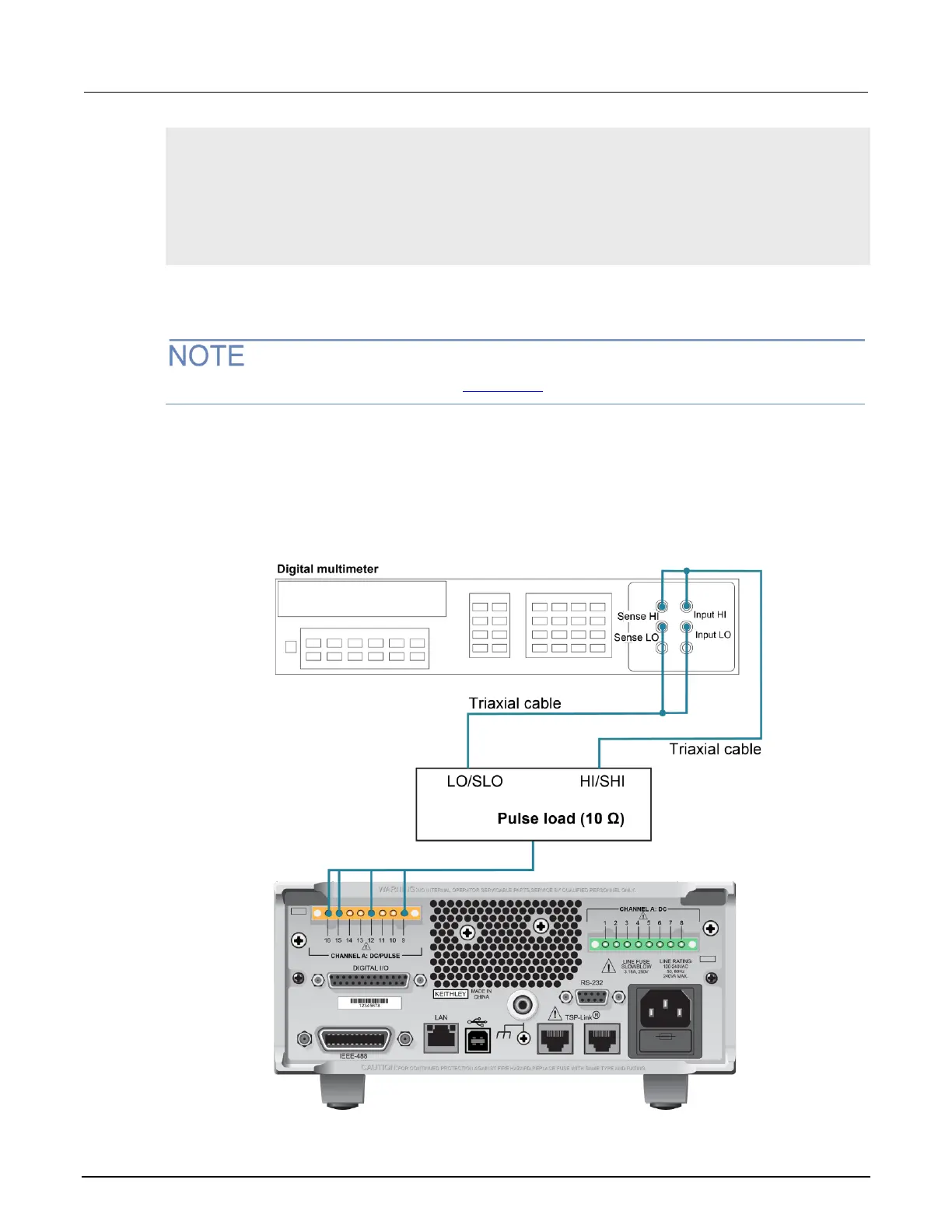

Figure 157: Bias connections
