Tektronix Keithley 2601B-PULSE Reference Manual

Section 2: Installation Model 2601B-PULSE System SourceMeter Instrument Reference Manual
2-18 2601B-PULSE-901-01A April 2020

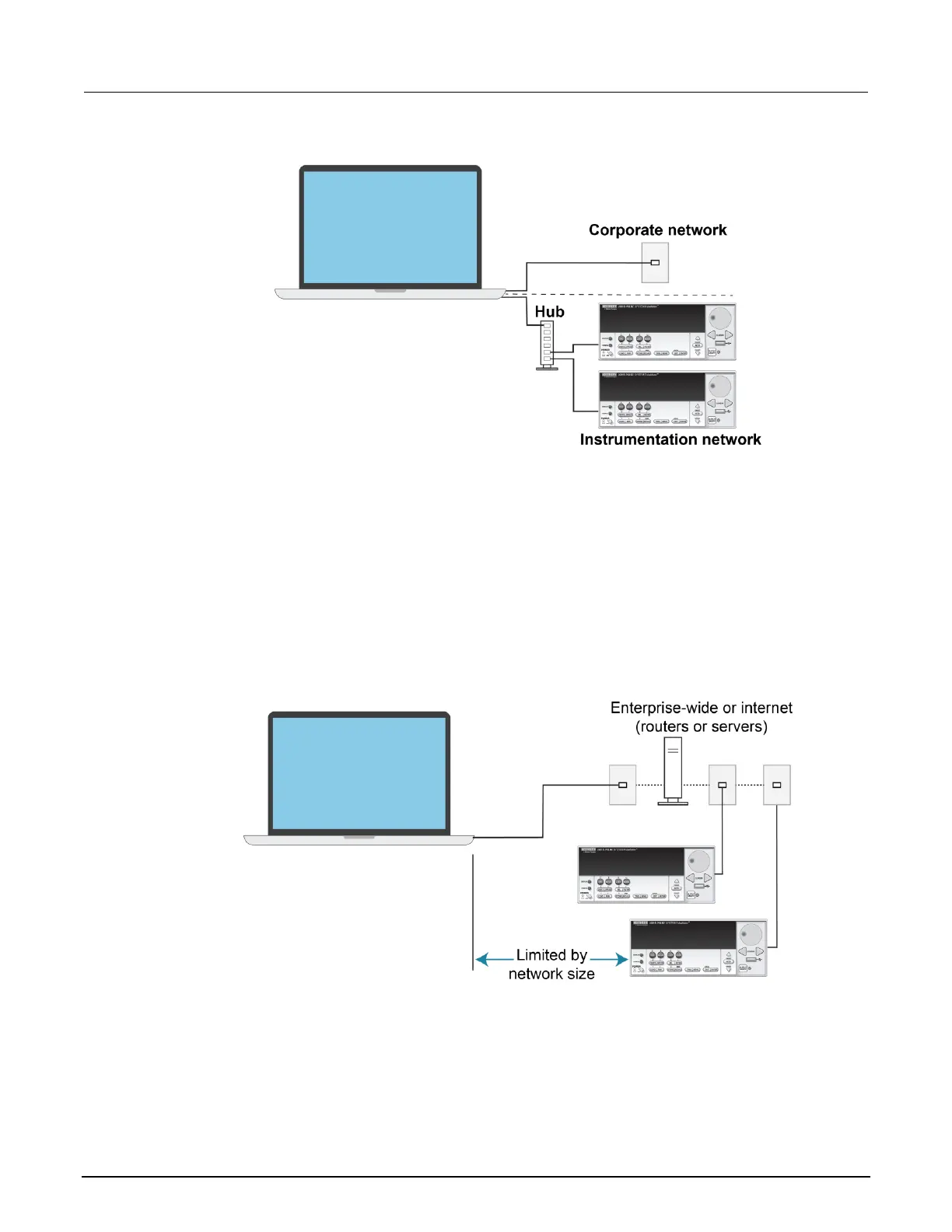

Figure 16: Two network card connection
Instrumentation connection to enterprise routers or servers
This connection uses an existing network infrastructure to connect instruments to the computer
controller. In this case, you must get the network resources from the network administrator.
Usually, the instruments are kept inside the corporate firewall, but the network administrator can
assign resources that allow them to be outside the firewall. This allows instruments to be connected
to the internet using appropriate security methods. Data collection and distribution can be controlled
from virtually any location.
Figure 17: Instrumentation connection to enterprise routers or servers
