Tektronix Keithley 2601B-PULSE Reference Manual

Section 13: Calibration Model 2601B-PULSE System SourceMeter Instrument Reference Manual
13-8 2601B-PULSE-901-01A April 2020
Current source accuracy
To verify the 2601B-PULSE output current accuracy is within specified limits, perform
these steps:
1. With the power off, connect the digital multimeter to the 2601B-PULSE terminals as shown in the
figure below.

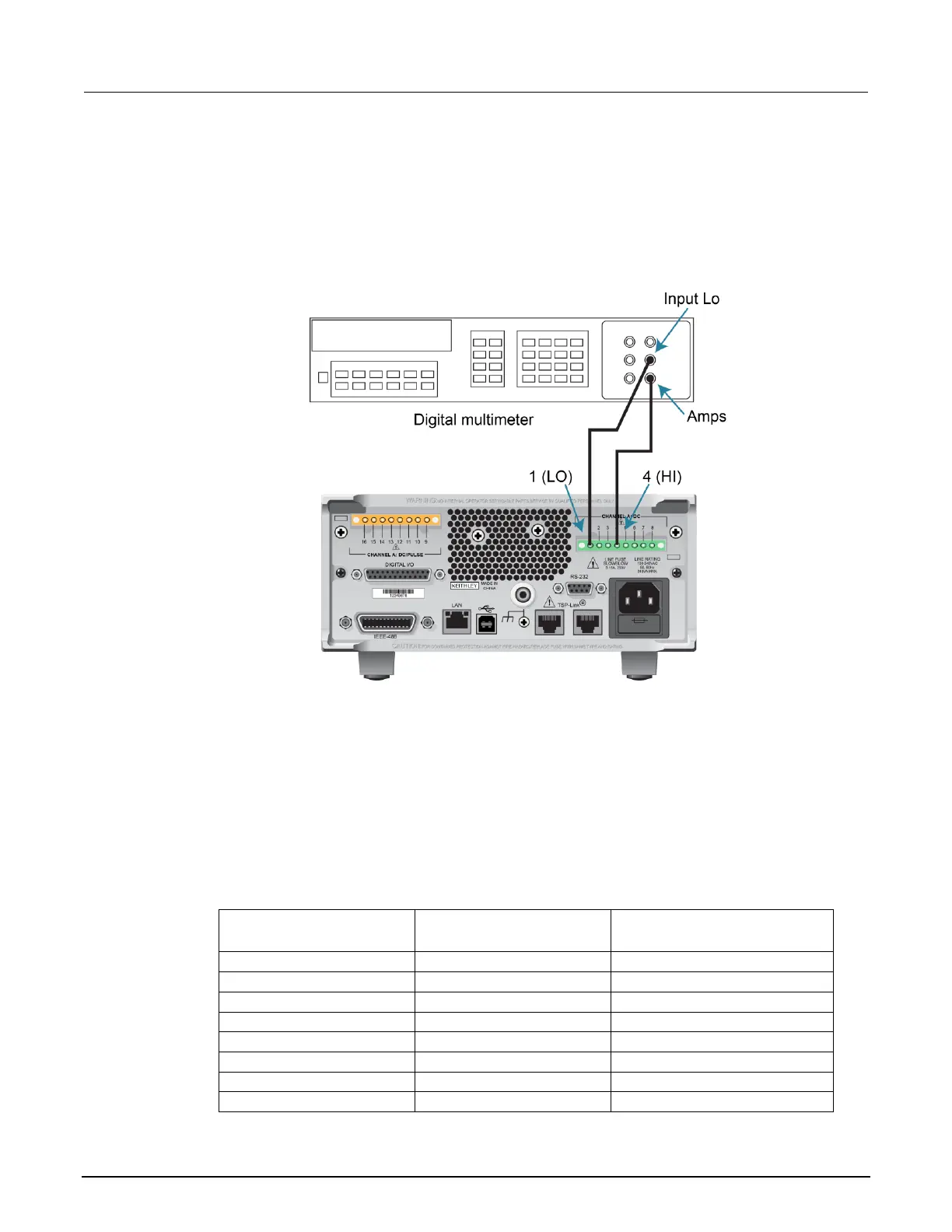

Figure 151: Connections for 100 nA to 1 A current ranges
2. Select the multimeter DC current measuring function.
3. Press the SRC key to source current, and make sure the source output is turned on.
4. Verify output current accuracy for each of the currents for the 100 nA to 1 A ranges using the
values in the following table. For each test point:
▪ Select the correct source range.
▪ Set the 2601B-PULSE output current to the correct value.
▪ Verify that the multimeter reading is within the limits given in the following table.
2601B-PULSE output current accuracy limits
Source range
Output current setting
Output current limits
(1 year, 18 °C to 28 °C)
100 nA
90.000 nA
89.846 nA to 90.154 nA
1 µA
0.90000 µA
0.89893 µA to 0.90107 µA
10 µA
9.0000 µA
8.9923 µA to 9.0077 µA
100 µA
90.000 µA
89.913 µA to 90.087 µA
1 mA
0.90000 mA
0.89943 mA to 0.90057 mA
10 mA
9.0000 mA
8.9913 mA to 9.0087 mA
100 mA
90.000 mA
89.943 mA to 90.057 mA
1 A
0.90000 A
0.89775 A to 0.90225 A
