Model 2601B-PULSE System SourceMeter Instrument Reference Manual Section 4: Sourcing and measuring
2601B-PULSE-901-01A April 2020 4-7
On some sensitive or easily damaged devices under test (DUTs), the instrument power-up and
power-down sequence can apply transient signals to the DUT that may affect or damage it. When
testing this type of DUT, do not make final connections to it until the instrument has completed its
power-up sequence and is in a known operating state. When testing this type of DUT, disconnect it
from the instrument before turning the instrument off.
To prevent any human contact with a live conductor, connections to the DUT must be fully insulated
and the final connections to the DUT must only use safety-rated safety-jack-socket connectors that
do not allow bodily contact.
The fundamental source-measure configurations for the 2601B-PULSE are shown in the following
figures. When the SMU is sourcing voltage, you can measure current or voltage, as shown in the
following figure.

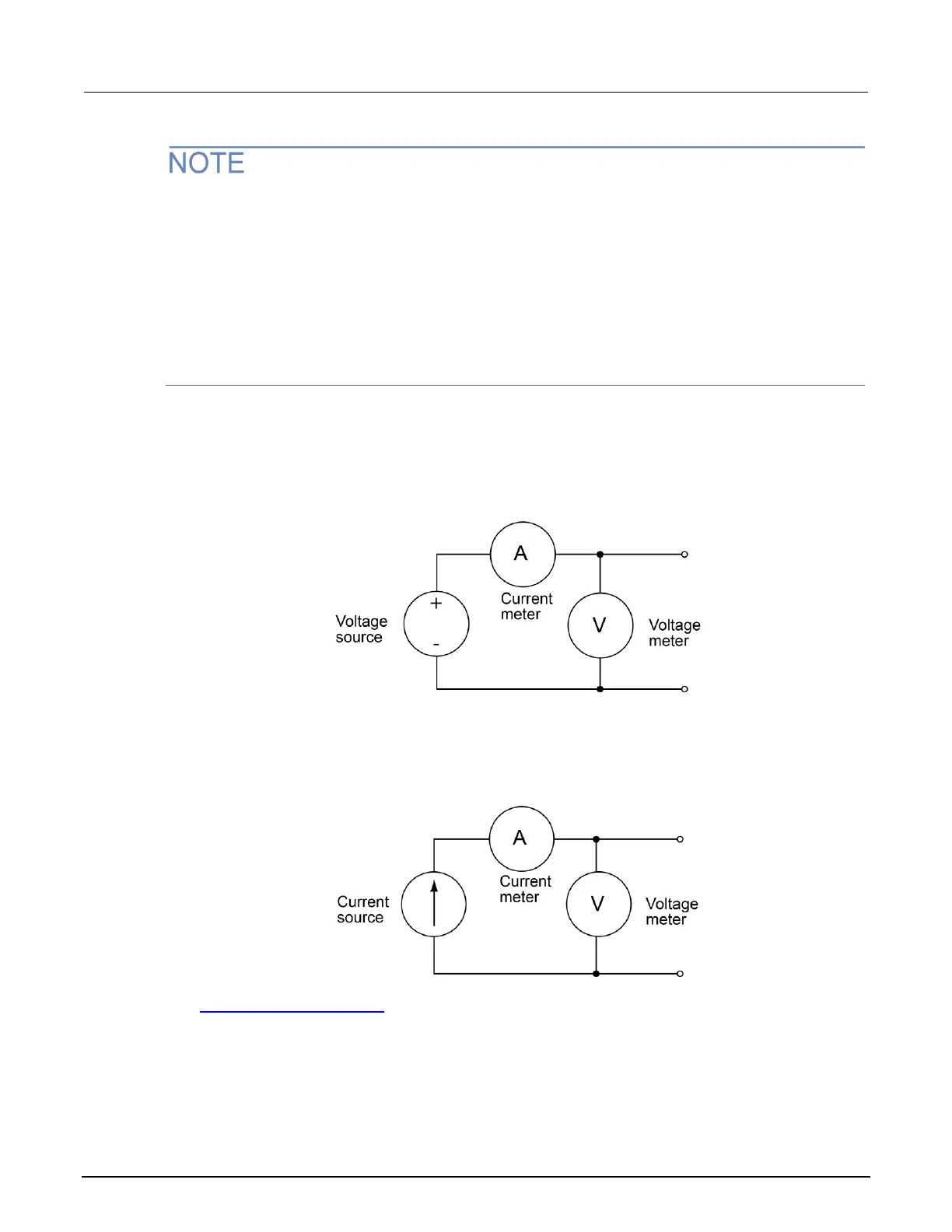

Figure 36: Fundamental source-measure configurations: Source V
When the SMU or pulser is sourcing current, you can measure voltage or current, as shown in the
following figure.
Figure 37: Fundamental source-measure configuration: Source I
See Basic circuit configurations (on page 7-19) for detailed information.
