Section 4: Sourcing and measuring Model 2601B-PULSE System SourceMeter Instrument Reference Manual
4-62 2601B-PULSE-901-01A April 2020

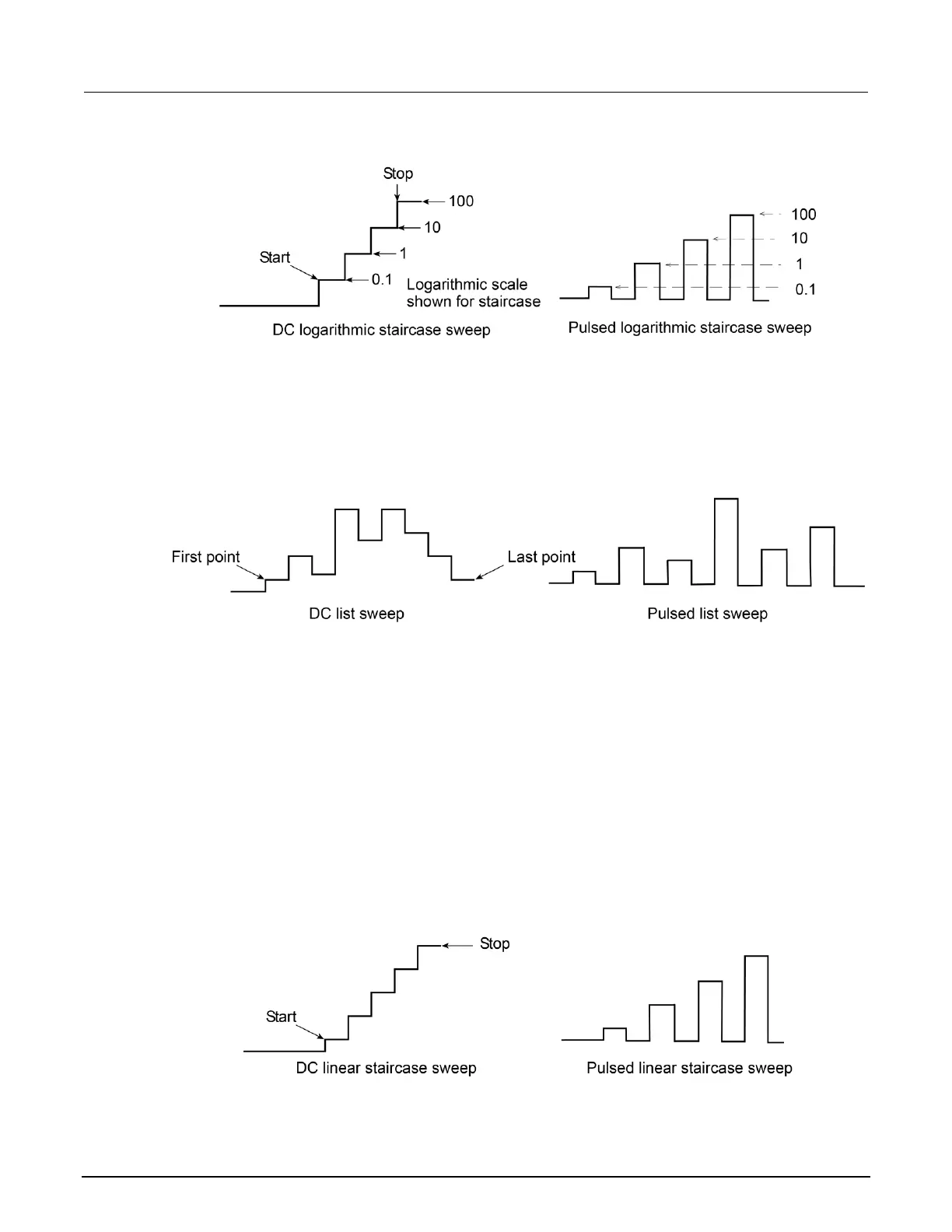

Figure 58: DC and pulsed logarithmic staircase sweeps
DC and pulsed list sweeps: The list sweep allows you to program arbitrary sweep steps anywhere
within the output voltage or current range of the 2601B-PULSE. The following figure shows a list
sweep with arbitrary steps and a pulsed list sweep. Pulsed list sweeps function the same way that DC
list sweeps function, except that pulsed list sweeps return to the idle level between pulses.
Figure 59: DC and pulsed list sweeps
The 2601B-PULSE can generate DC and pulsed sweeps to perform source-only sweeps,
source-and-measure sweeps, or measure-only sweeps. Three of the sweep types are described in
the following: DC and pulsed linear staircase sweeps, DC and pulsed logarithmic staircase sweeps,
and DC and pulsed list sweeps.
DC and pulsed linear staircase sweeps: With this type of sweep, the voltage or current increases
or decreases in fixed steps, beginning with a start voltage or current and ending with a stop voltage or
current. The figure below shows an increasing linear staircase sweep and a pulsed staircase sweep.
Pulsed linear staircase sweeps function the same way that DC linear staircase sweeps function,
except that pulsed linear staircase sweeps return to the idle level between pulses.
Figure 60: DC and pulsed linear staircase sweeps
