Tektronix Keithley 2601B-PULSE Reference Manual

Model 2601B-PULSE System SourceMeter Instrument Reference Manual Section 6: Triggering
2601B-PULSE-901-01A April 2020 6-33

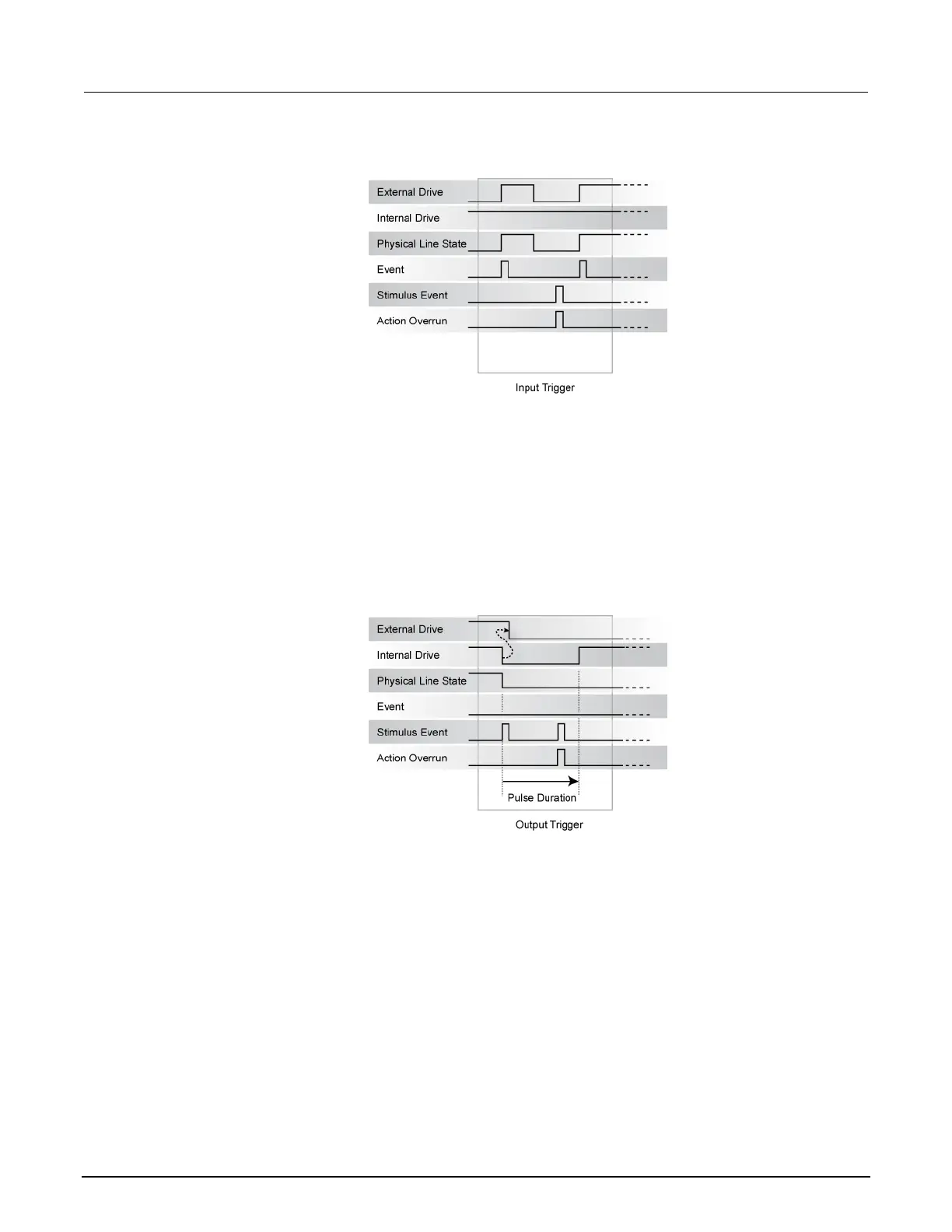

Figure 90: Synchronous master input trigger
Output characteristics:
• In addition to trigger events from other trigger objects, the digio.trigger[N].assert() and
tsplink.trigger[N].assert() functions generate a low pulse that is similar to the falling
edge trigger mode.
• An action overrun occurs if the physical line state is low while a stimulus event occurs.
Figure 91: Synchronous master output trigger
