Model 2601B-PULSE System SourceMeter Instrument Reference Manual Section 2: Installation
2601B-PULSE-901-01A April 2020 2-7
To install the 2601B-P-INT:
1. Remove power connections from the 2601B-PULSE.
2. On the rear panel of the 2601B-PULSE, remove the screws to the left of the CHANNEL A:
DC/PULSE terminal strip and to the right of the CHANNEL A: DC terminal strip. Save the screws
for operation with the 2601B-P-INT uninstalled. Screw locations are shown in the following figure.

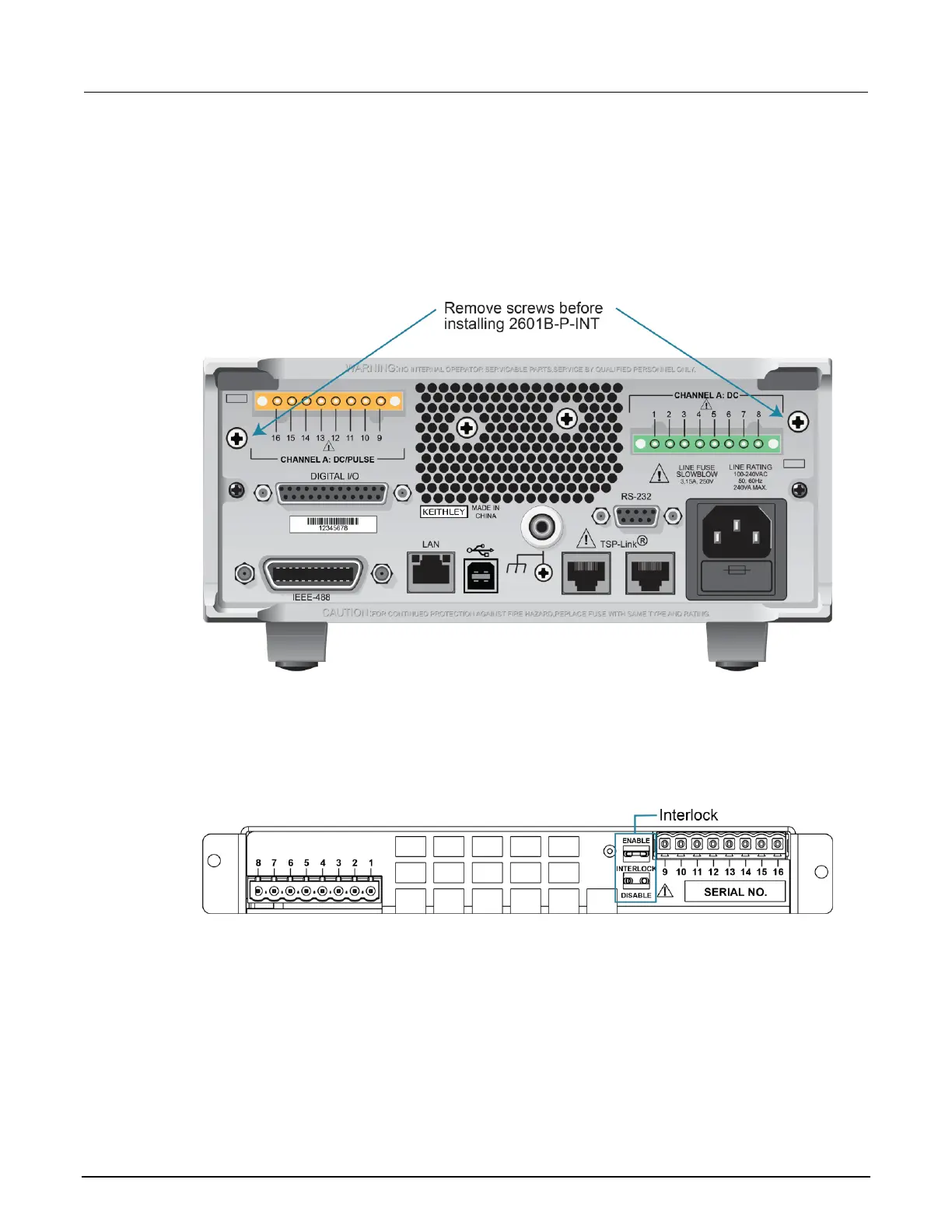

Figure 8: Remove screws from 2601B-PULSE rear panel
3. On the terminal strip panel of the 2601B-P-INT, position the INTERLOCK jumper. Use
needle-nose pliers to position the jumper in the ENABLE slot if you are using an interlock or
DISABLE if you are not using the interlock.
Figure 9: 2601B-P-INT Interlock Box terminal strip panel
4. Align the terminal strip panel of the 2601B-P-INT to the terminal strips on the rear panel of the
2601B-PULSE.
5. Press the 2601B-P-INT connections firmly onto the terminal strips on the rear panel of
the 2601B-PULSE.
6. Use the screws provided with the 2601B-P-INT to secure it to the rear panel of the
2601B-PULSE.
