Section 10: Instrument programming Model 2601B-PULSE System SourceMeter Instrument Reference Manual
10-52 2601B-PULSE-901-01A April 2020
A group consists of one or more nodes with the same group number. The following figure displays a
single TSP-Link network with groups. This method requires one TSP-Link network and a single GPIB
connection to the computer.

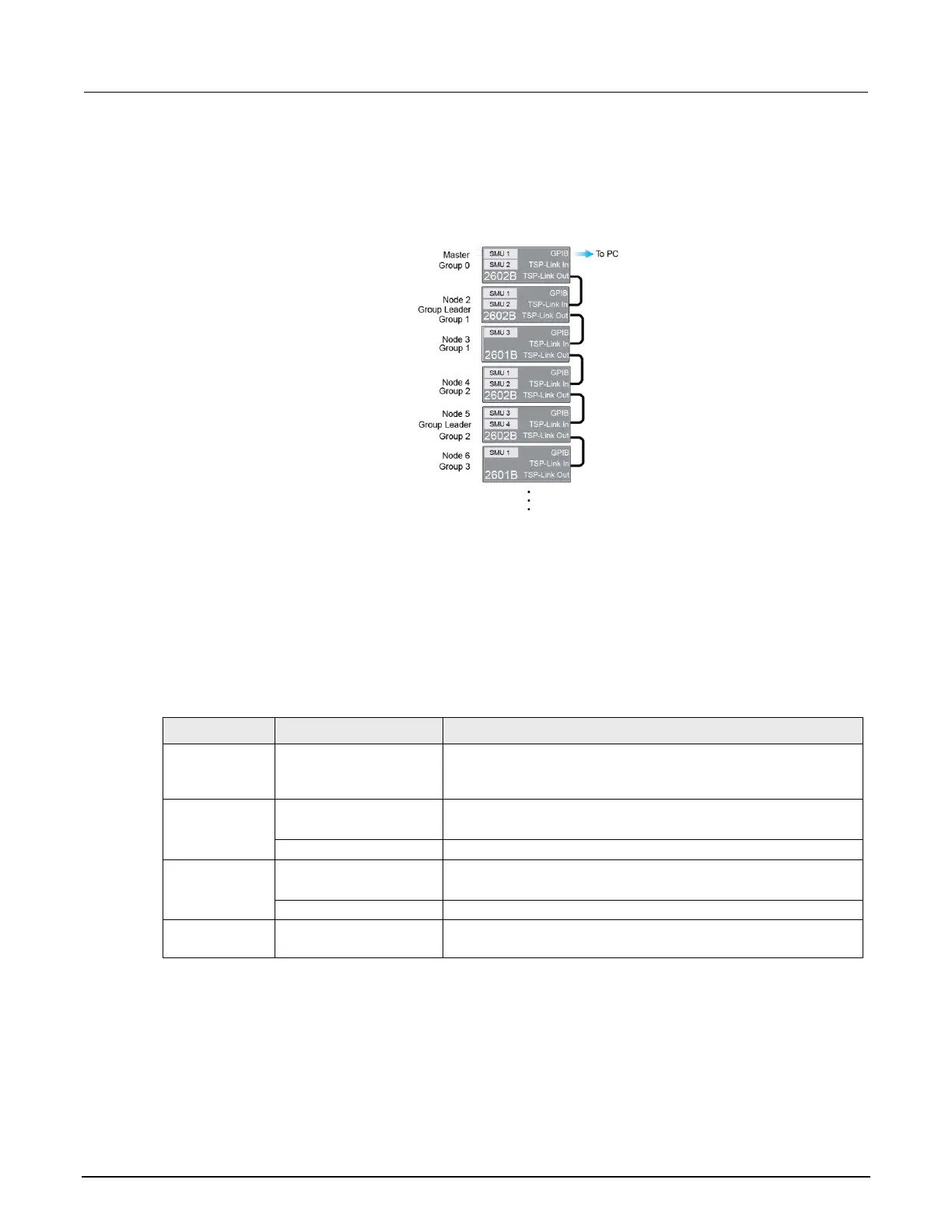

Figure 138: Single TSP-Link network with groups
The following table shows an example of the functions of a single TSP-Link network. Each group in
this example runs a different test script than the other groups, which allows the system to run multiple
tests simultaneously.
The following table shows an example of the functions of a single TSP-Link network. Each group in
this example runs a different test script than the other groups, which allows the system to run multiple
tests simultaneously.
TSP-Link network group functions
Group number
Group members
Present function
0
Master node 1
Initiates and runs a test script on node 2
Initiates and runs a test script on node 5
Initiates and runs a test script on node 6
1
Group leader
Node 2
Runs the test script initiated by the master node
Initiates remote operations on node 3
Node 3
Performs remote operations initiated by node 2
2
Group leader
Node 5
Runs the test script initiated by the master node
Initiates remote operations on node 4
Node 4
Performs remote operations initiated by node 5
3
Group leader
Node 6
Runs the test script initiated by the master node
