Model 2601B-PULSE System SourceMeter Instrument Reference Manual Section 13: Calibration
2601B-PULSE-901-01A April 2020 13-13

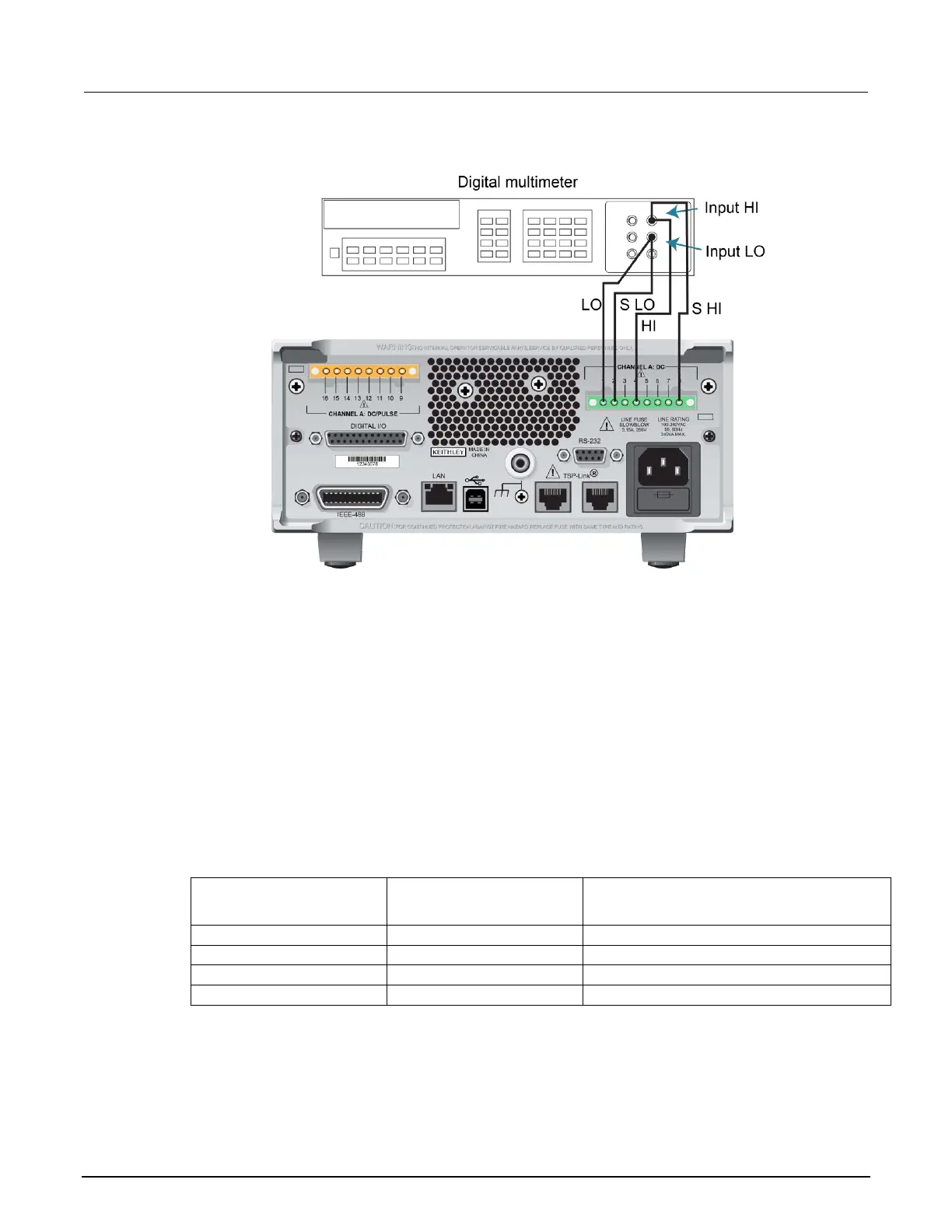

Figure 155: Connections for voltage verification
2. Set the multimeter measuring function to DC volts.
3. Press the SRC key to source voltage and make sure the source output is turned on.
4. Enable the 2601B-PULSE 4-wire (remote sense) mode:
a. Press the CONFIG key and then the SRC key.
b. Select V-SOURCE > SENSE-MODE > 4-WIRE.
5. Verify output voltage accuracy for each of the voltages listed in the following table. For each
test point:
▪ Select the correct source range.
▪ Set the 2601B-PULSE output voltage to the indicated value.
▪ Verify that the multimeter reading is within the limits given in the table.
Output voltage accuracy limits
Source range
Output voltage setting
Output voltage limits
(1 year, 18 °C to 28 °C)
100 mV
90.000 mV
89.732 mV to 90.268 mV
1 V
0.90000 V
0.89942 V to 0.90058 V
6 V
5.4000 V
5.39712 V to 5.40288 V
40 V
36.000 V
35.9808 V to 36.0192 V
6. Repeat the procedure for negative output voltages with the same magnitudes as those listed in
the previous table, as applicable.
