Section 13: Calibration Model 2601B-PULSE System SourceMeter Instrument Reference Manual
13-40 2601B-PULSE-901-01A April 2020
To adjust the pulse:
A. Connect the 2601B-PULSE to the digitizer as shown in the following figure.

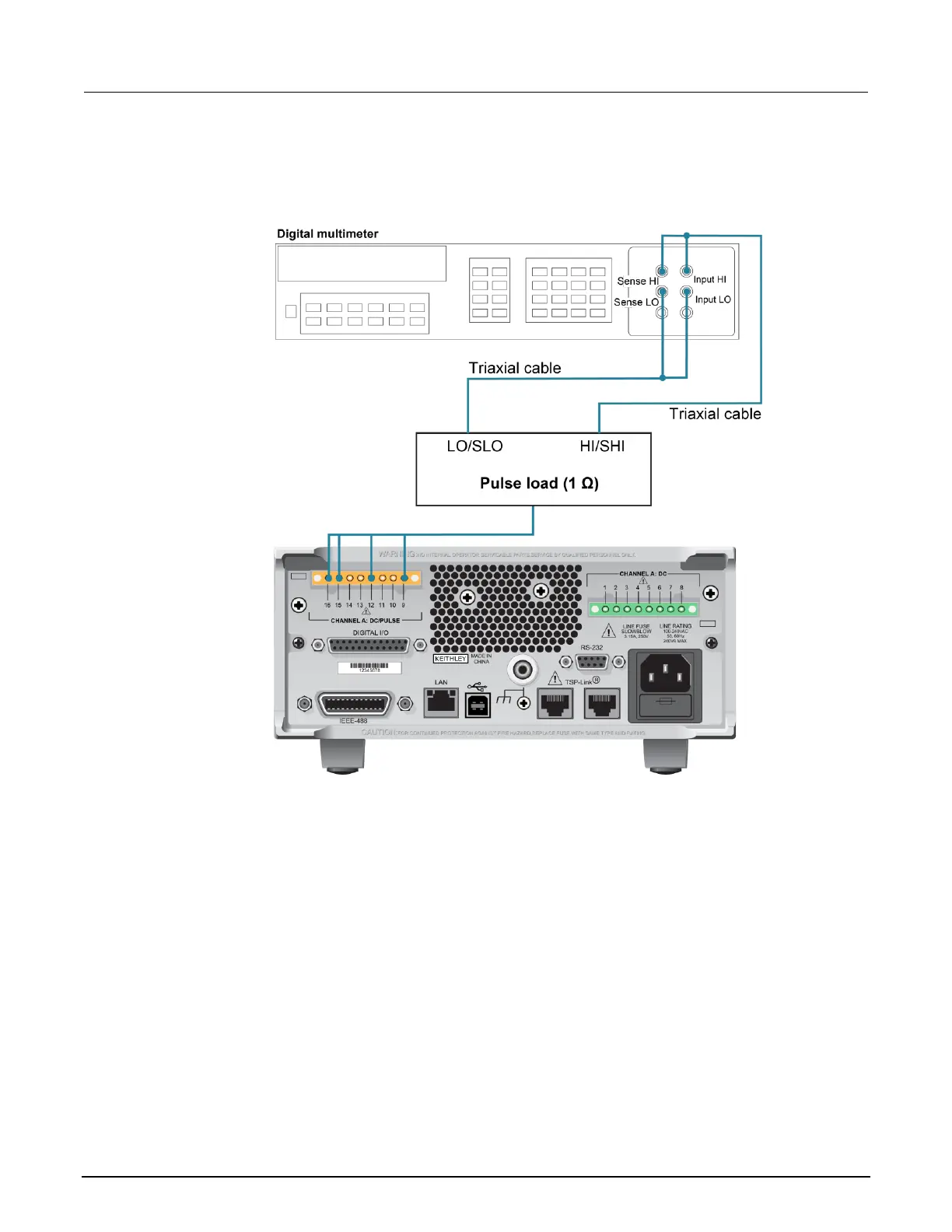

Figure 164: Pulse accuracy calibration and adjustment connections
B. Select the multimeter DC current function.
C. Characterize the resistor.
D. Perform each step listed in the step sequence for the 1 A range as follows:
1. Reset the unit:
smua.reset()
2. Select the range being adjusted. For the 1 A and 5 A ranges, use the 5 V range. For 10 A, use the 10 V
range.
smua.pulser.rangev = 5
smua.pulser.rangei = 1
3. Enable the pulser:
smua.pulser.enable = 1
