Xerox Phaser 6128MFP Service Manual

2-48 Phaser 6128MFP Service Manual
Theory of Operation
Scanner
The Scanner consists of a lamp (fluorescent lamp, etc.) that illuminates the
original document with uniform light and a Charged Coupled Device (CCD), which
reads the light reflected from the image.
A CCD is a light-receiving element that produces an electrical signal in response to
light. In the case of a Fax, a number of CCDs are arranged in a line.
The white areas of the original document reflect the light from the lamp. The black
areas reflect no light. The CCDs read the light reflected from the original,
outputting sequentially to the control circuit, which areas are white and which
black as binary data (1/0 digital data: 1 bit).
To scan the original, the CCD device is shifted a distance of one line after each line
is scanned. When the original is scanned directly on the document glass, the CCD
is moved across the original. When the ADFis used, scanning is performed by
moving the original with the CCD fixed at one position. This is called Constant
Velocity Transport (CVT).

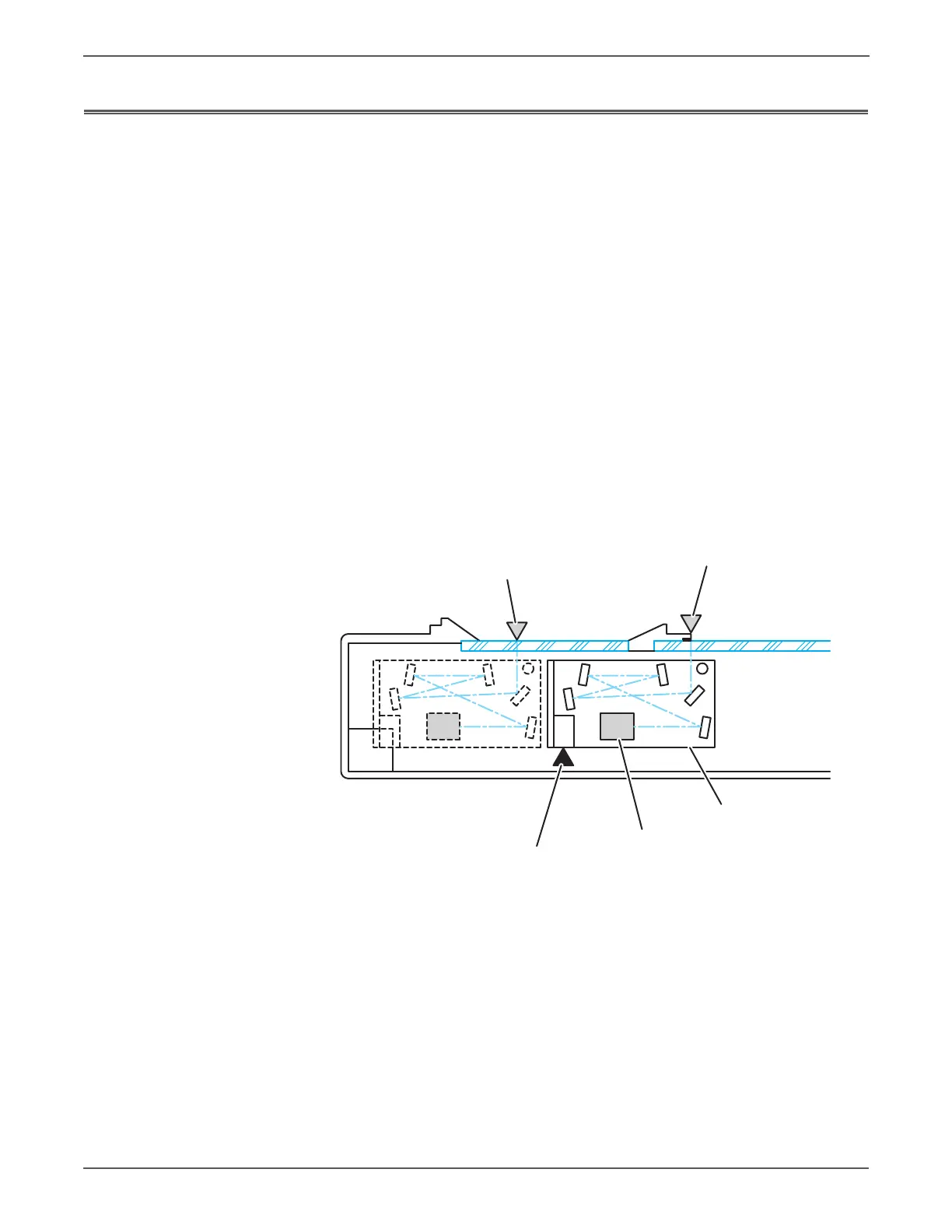

The scanning section consists of a Scanner Assembly that scans documents placed
on the document glass.
The optical image reflected from the document reaches the Charged Coupled
Device (CCD) image sensor via the light path.
s6128-048
Scanner
Home Position Sensor
CCD Image Sensor
Scanner Assy
CVT Position
(Home Position)
Platen Registration Point

Xerox Phaser 6128MFP Specifications

General

Print technology	Laser
Maximum resolution	600 x 600 DPI
Economical printing	Yes
Time to first page (black, normal)	14 s
Time to first page (color, normal)	17 s
Print speed (black, normal quality, A4/US Letter)	16 ppm
Print speed (color, normal quality, A4/US Letter)	12 ppm
Scanner type	Flatbed scanner
Image formats supported	JPG, TIF
Copier resize	- %
Time to first copy (black, normal)	18 s
Copy speed (black, normal quality, A4)	16 cpm
Copy speed (color, normal quality, A4)	12 cpm
Faxing	Mono faxing
Fax speed dialing (max numbers)	200
Total input capacity	250 sheets
Total output capacity	150 sheets
Display	LCD
Market positioning	Business
Internal memory	384 MB
Card reader integrated	No
Sound pressure level (copying)	52.2 dB
Sound pressure level (printing)	14.9 dB
Maximum print size	216 x 297 mm
Paper tray media types	Bond paper, Card stock, Envelopes, Glossy paper, Labels, Plain paper
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Legal (media size), Letter (media size), Oficio (media size), Statement (140 x 216mm)
ISO A-series sizes (A0...A9)	A4, A5
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 216 g/m²
Power supply type	AC
Dimensions (WxDxH)	425 x 507 x 585 mm
Power requirements	120 V, 50/60 Hz
Networking features	Fast Ethernet
All-in-one functions	Copy, Fax, Scan
Standard media sizes	76.2 x 127 mm - 215.6 x 355.6 mm
Color all-in-one functions	copy, print, scan
Compatible operating systems	Windows 2000+ Mac OS X v10.3 - 10.5 Red Hat Enterprise Linux 5 Desktop SUSE Linux Desktop 10+
Dimensions (W x D x H) (imperial)	16.7 x 20 x 23 \
Acoustic power emissions (active, print, copy or scan)	62.2/30.3 dB
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
Power consumption (standby)	18.4 W
Power consumption (average operating)	360 W
Sustainability certificates	ENERGY STAR
Certification	EEC, FCC
Maximum duty cycle	40000 pages per month
Recommended duty cycle	3000 pages per month
Storage temperature (T-T)	-20 - 40 °C
Operating temperature (T-T)	10 - 32 °C
Non-operating relative humidity (non-condensing)	10 - 85 %
