Imaging Unit
PL4.1.21
Caution
Cover the Imaging Unit to avoid light exposure.

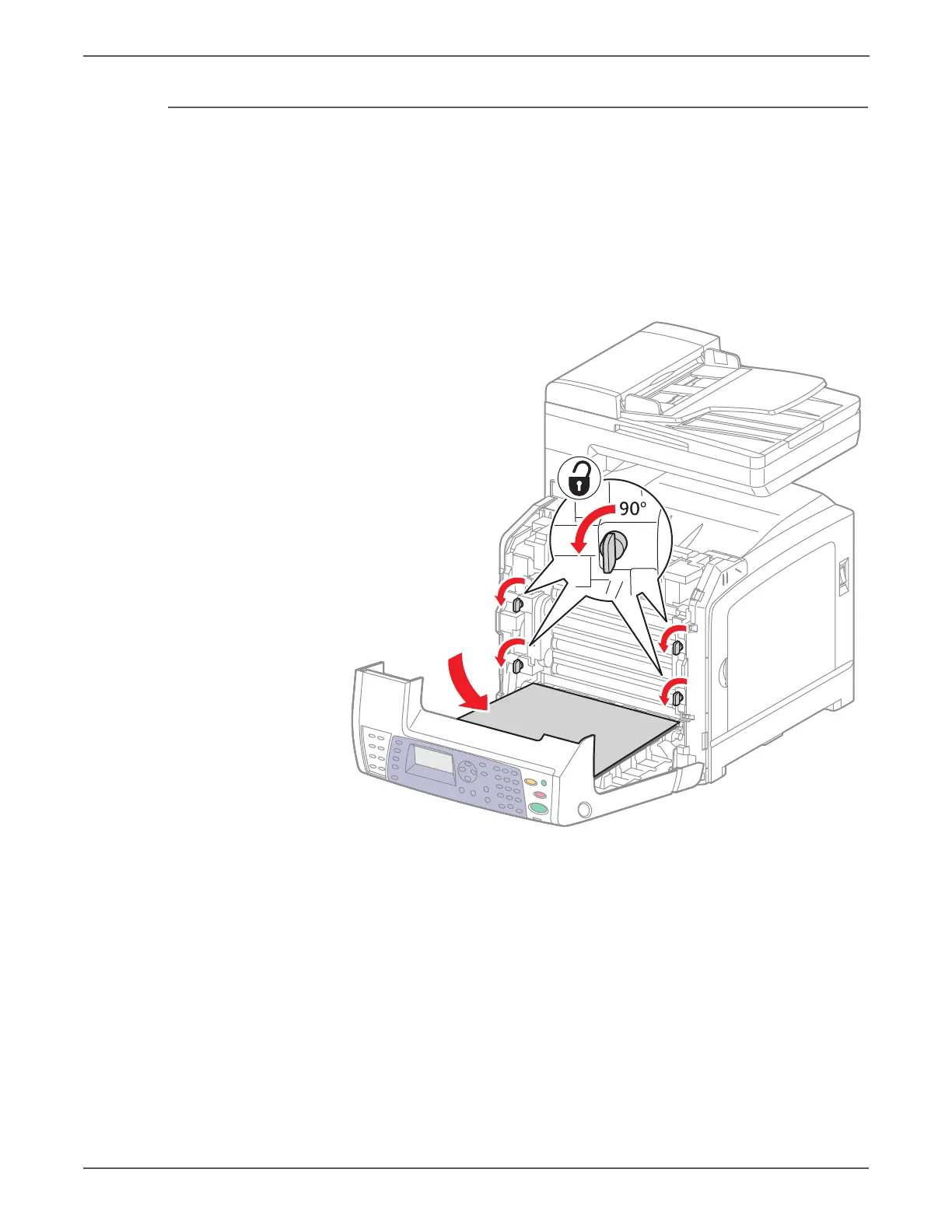

1. Open the Front Cover.
2. Place a sheet of paper over the Transfer Belt to protect the belt.
3. Rotate the four securing locks counter-clockwise.
s6128mfp-179
4x
