Xerox Phaser 6128MFP - Registration; Guaranteed and Maximum Print Areas

Phaser 6128MFP Service Manual 5-59
Print-Quality Troubleshooting
Registration
• Leading Edge: 10.0 mm ± 2.0 mm
• Side Edge: 8.5 mm ± 2.5 mm
Guaranteed and Maximum Print Areas
• Maximum Print Area: 210.9 mm x 351.6 mm
• Guaranteed Print Area: 207.9 mm x 347.6 mm
s6128mfp-122

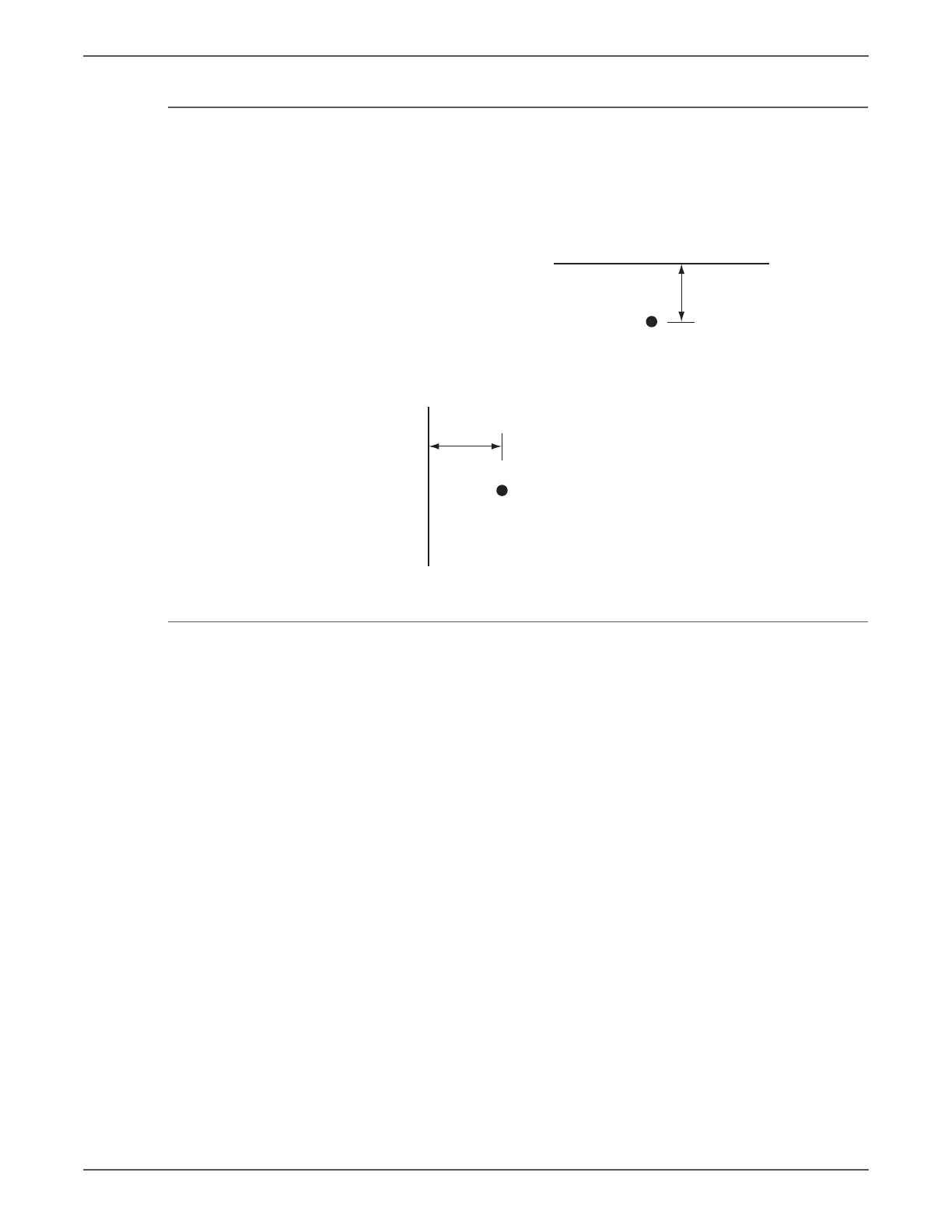

Registration = Measured Length - Nominal
Lead Edge
Nominal = 10.0 mm
(within ±2 mm)
Nominal = 8.5 mm
(within ±2.5 mm)
Left Edge
B
F
