Xerox Phaser 6128MFP - Sub-Drive Assembly

8-60 Phaser 6128MFP Service Manual
Service Parts Disassembly
Sub-Drive Assembly
PL 7.1.1
1. Open the Front Cover.
2. Remove the Left Side Cover (page 8-17).
3. Remove the Outer Pole Cover (page 8-19).
4. Remove the Rear Cover (page 8-22).
5. Remove the Right Side Cover (page 8-23).
6. Remove the Top Cover (page 8-25).
7. Remove the Drive Clutch Kit (page 8-35).
8. Remove the Feed Drive Assembly (page 8-37).
9. Remove Gear P2 (page 8-40).
10. Remove the Main Drive Assembly (page 8-58).
11. Remove the Interlock Harness (page 8-52).

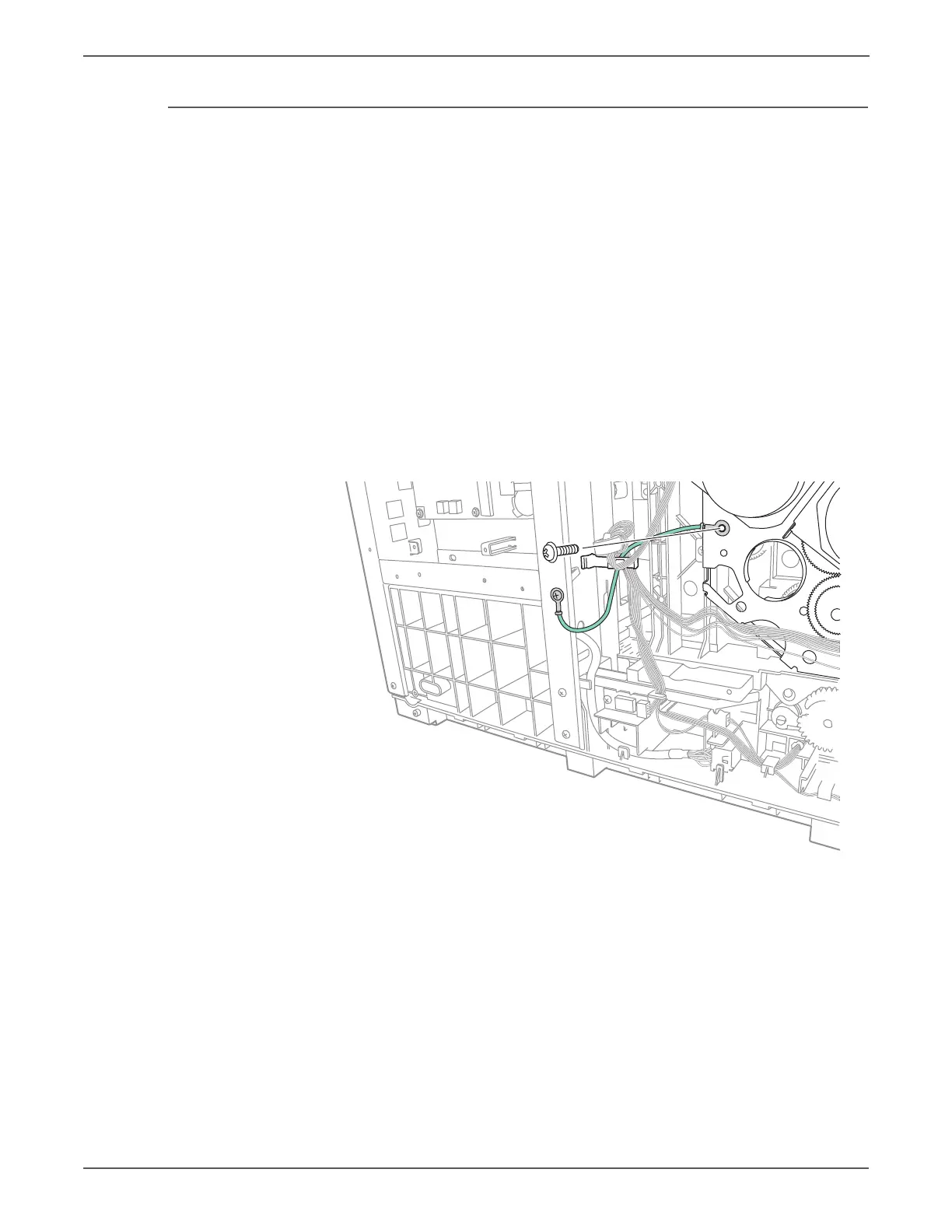

12. Remove the 1 screw (silver, 6mm) that secures the Ground Harness (PL7.1.5)
to the Sub-Drive Assembly.
s6128mfp-230
