Xerox Phaser 6128MFP Service Manual

Phaser 6128MFP Service Manual 4-25
General Troubleshooting
6. Press Stop to stop the test.
IOT Diagnostic Tests
Caution
Do not turn the printer Off during ESS testing.
Test Control Panel Display Test Description
ESS Diag Tests for core print engine components.
Flash ROM
Test
■ Start
■ Processing
■ Check OK or NG
Calculates the Flash ROM checksum
and compares it with the stored
value. Run this test when 016-500,
016-501 and 016-502 errors occur.
Test result: NG (Go to FIP.) OK (cycle
main power.)
EEPROM Test
■ Start
■ Processing
■ Check OK or NG
This test checks the diag. area of the
EEPROM. Run this test when 116-
323 and 116-390 errors occur.
Test result: NG(Go to FIP.) OK (cycle
main power.).
DRAM Test
■ Start
■ Processing
■ Check OK or NG
This test checks the DRAM address
lines.. Execute this test when 116-
315, 116-316 and 116-320 errors
occur. Test result: NG(Go to FIP.) OK
(cycle main power.).
MAC+PHY
Test
■ Start
■ Processing
■ Check OK or NG
Run this test when 116-314, 116-
350, 116-351, 116-352 and 116-355
errors occur. Test result: NG (Go to
FIP.) OK (cycle main power.)
s6128mfp-072

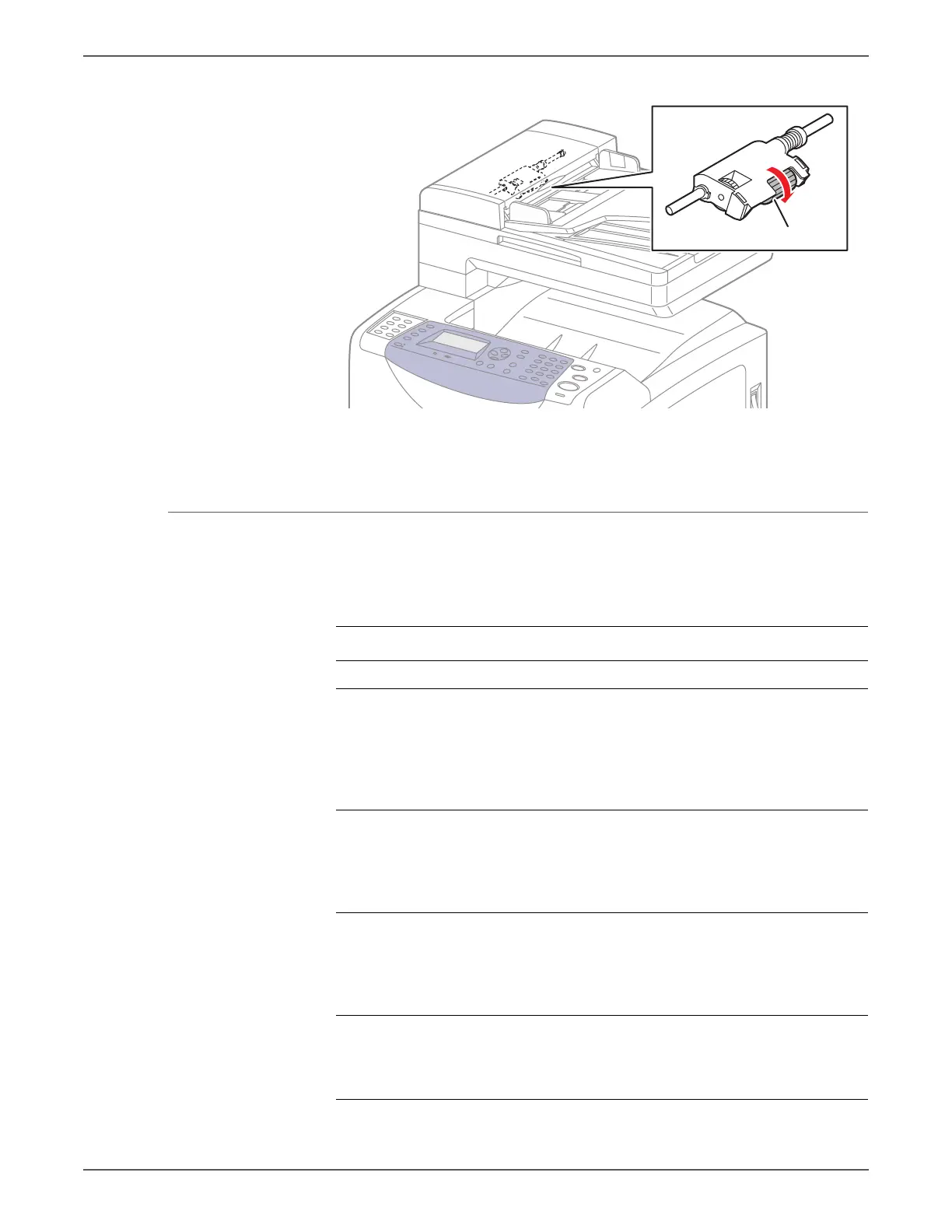

Feed Roller

Xerox Phaser 6128MFP Specifications

General

Print technology	Laser
Maximum resolution	600 x 600 DPI
Economical printing	Yes
Time to first page (black, normal)	14 s
Time to first page (color, normal)	17 s
Print speed (black, normal quality, A4/US Letter)	16 ppm
Print speed (color, normal quality, A4/US Letter)	12 ppm
Scanner type	Flatbed scanner
Image formats supported	JPG, TIF
Copier resize	- %
Time to first copy (black, normal)	18 s
Copy speed (black, normal quality, A4)	16 cpm
Copy speed (color, normal quality, A4)	12 cpm
Faxing	Mono faxing
Fax speed dialing (max numbers)	200
Total input capacity	250 sheets
Total output capacity	150 sheets
Display	LCD
Market positioning	Business
Internal memory	384 MB
Card reader integrated	No
Sound pressure level (copying)	52.2 dB
Sound pressure level (printing)	14.9 dB
Maximum print size	216 x 297 mm
Paper tray media types	Bond paper, Card stock, Envelopes, Glossy paper, Labels, Plain paper
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Legal (media size), Letter (media size), Oficio (media size), Statement (140 x 216mm)
ISO A-series sizes (A0...A9)	A4, A5
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 216 g/m²
Power supply type	AC
Dimensions (WxDxH)	425 x 507 x 585 mm
Power requirements	120 V, 50/60 Hz
Networking features	Fast Ethernet
All-in-one functions	Copy, Fax, Scan
Standard media sizes	76.2 x 127 mm - 215.6 x 355.6 mm
Color all-in-one functions	copy, print, scan
Compatible operating systems	Windows 2000+ Mac OS X v10.3 - 10.5 Red Hat Enterprise Linux 5 Desktop SUSE Linux Desktop 10+
Dimensions (W x D x H) (imperial)	16.7 x 20 x 23 \
Acoustic power emissions (active, print, copy or scan)	62.2/30.3 dB
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
Power consumption (standby)	18.4 W
Power consumption (average operating)	360 W
Sustainability certificates	ENERGY STAR
Certification	EEC, FCC
Maximum duty cycle	40000 pages per month
Recommended duty cycle	3000 pages per month
Storage temperature (T-T)	-20 - 40 °C
Operating temperature (T-T)	10 - 32 °C
Non-operating relative humidity (non-condensing)	10 - 85 %
