Xerox Phaser 6128MFP - Right Side Door

8-24 Phaser 6128MFP Service Manual
Service Parts Disassembly
Right Side Door
PL10.1.7
1. Open the Front Cover.
2. Remove the Left Side Cover (page 8-17).
3. Remove the Rear Cover (page 8-22).
4. Remove the Right Side Cover (page 8-23).

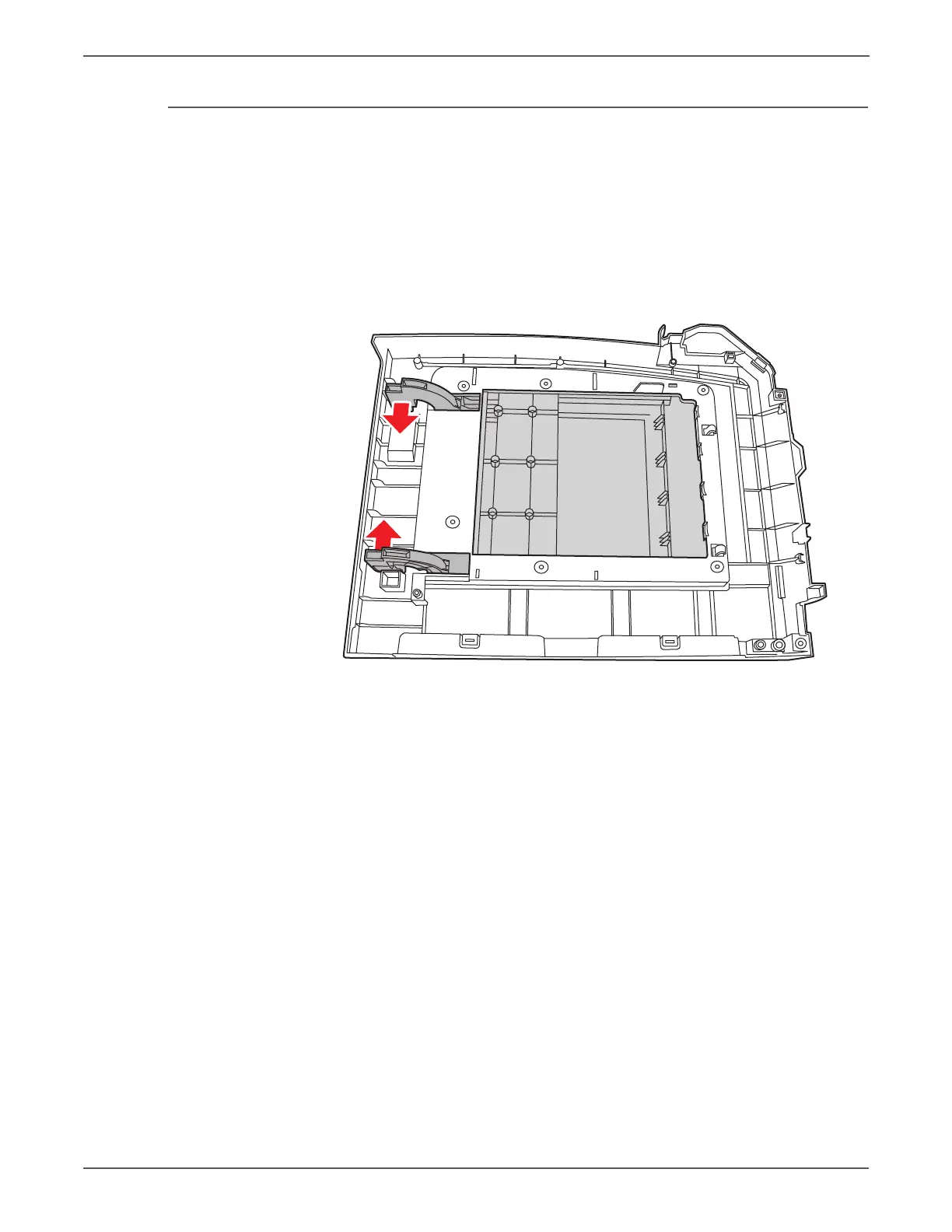

5. Release the bosses that secure to upper and lower Toner Door hinges to the
Right Side Cover.
s6128mfp-252
