Xerox Phaser 6128MFP Service Manual

Phaser 6128MFP Service Manual 6-7
Adjustments and Calibrations
Scanner Calibration
This process enables manual calibration of the registration adjustment value or
correction value. Use this procedure to enter the correction value when replacing
the scanner.
Note

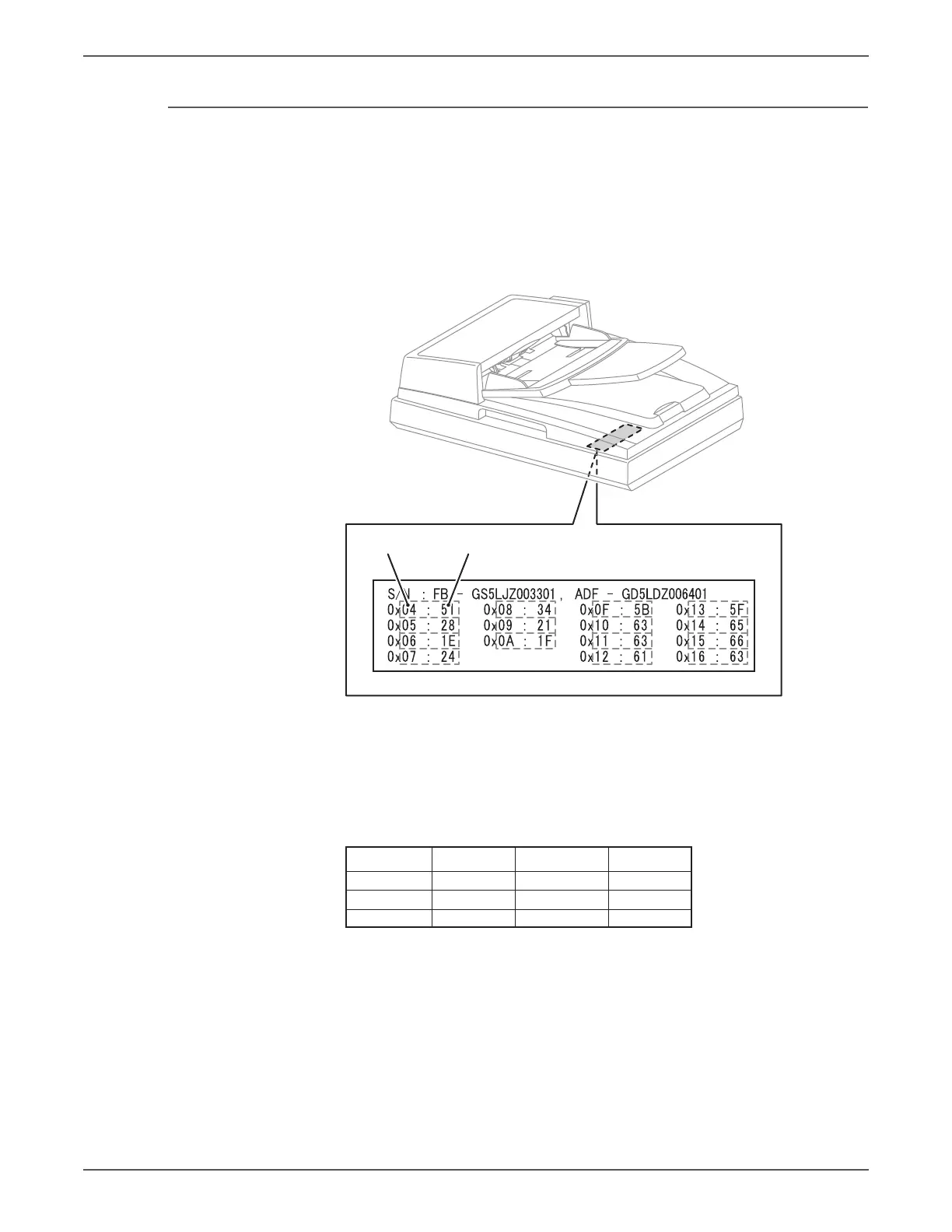

Note the Scanner Assembly correction values located under the assembly prior
to installing the replacement on the printer.
Note
The information in the table below is for reference only. Each scanner has its
own calibration information.
1. Turn the printer power Off.
2. Access the Service Diagnostics menu by pressing and holding the Up and
Down Arrow buttons simultaneously and turn the printer power On.
3. The Service Mode is displayed. Select Fax/Scanner Diag and press the OK
button.
4. Press the Up Arrow or Down Arrow button to find Scanner Maintenance.
Press the OK button.
5. Press the Up Arrow or Down Arrow button to find Parameter. Press the OK
button.
s6128mfp-125
Index(Hex) Value(Hex)
s6128mfp-175
FB - GS6JW0000501, ADF - GD6JW0000501 >PET<
0x04 : 52
0x05 : 2B
0x06 : 1E
0x07 : 26
0x0F : 56
0x10 : 5D
0x11 : 5D
0x12 : 59
0x13 : 5D
0x14 : 64
0x15 : 66
0x16 : 62
0x08 : 46
0x09 : 21
0x0A : 1E

Xerox Phaser 6128MFP Specifications

General

Print technology	Laser
Maximum resolution	600 x 600 DPI
Economical printing	Yes
Time to first page (black, normal)	14 s
Time to first page (color, normal)	17 s
Print speed (black, normal quality, A4/US Letter)	16 ppm
Print speed (color, normal quality, A4/US Letter)	12 ppm
Scanner type	Flatbed scanner
Image formats supported	JPG, TIF
Copier resize	- %
Time to first copy (black, normal)	18 s
Copy speed (black, normal quality, A4)	16 cpm
Copy speed (color, normal quality, A4)	12 cpm
Faxing	Mono faxing
Fax speed dialing (max numbers)	200
Total input capacity	250 sheets
Total output capacity	150 sheets
Display	LCD
Market positioning	Business
Internal memory	384 MB
Card reader integrated	No
Sound pressure level (copying)	52.2 dB
Sound pressure level (printing)	14.9 dB
Maximum print size	216 x 297 mm
Paper tray media types	Bond paper, Card stock, Envelopes, Glossy paper, Labels, Plain paper
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Legal (media size), Letter (media size), Oficio (media size), Statement (140 x 216mm)
ISO A-series sizes (A0...A9)	A4, A5
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 216 g/m²
Power supply type	AC
Dimensions (WxDxH)	425 x 507 x 585 mm
Power requirements	120 V, 50/60 Hz
Networking features	Fast Ethernet
All-in-one functions	Copy, Fax, Scan
Standard media sizes	76.2 x 127 mm - 215.6 x 355.6 mm
Color all-in-one functions	copy, print, scan
Compatible operating systems	Windows 2000+ Mac OS X v10.3 - 10.5 Red Hat Enterprise Linux 5 Desktop SUSE Linux Desktop 10+
Dimensions (W x D x H) (imperial)	16.7 x 20 x 23 \
Acoustic power emissions (active, print, copy or scan)	62.2/30.3 dB
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
Power consumption (standby)	18.4 W
Power consumption (average operating)	360 W
Sustainability certificates	ENERGY STAR
Certification	EEC, FCC
Maximum duty cycle	40000 pages per month
Recommended duty cycle	3000 pages per month
Storage temperature (T-T)	-20 - 40 °C
Operating temperature (T-T)	10 - 32 °C
Non-operating relative humidity (non-condensing)	10 - 85 %
