Xerox Phaser 6128MFP - Media Path Components

Phaser 6128MFP Service Manual 2-13
Theory of Operation
Media Path Components

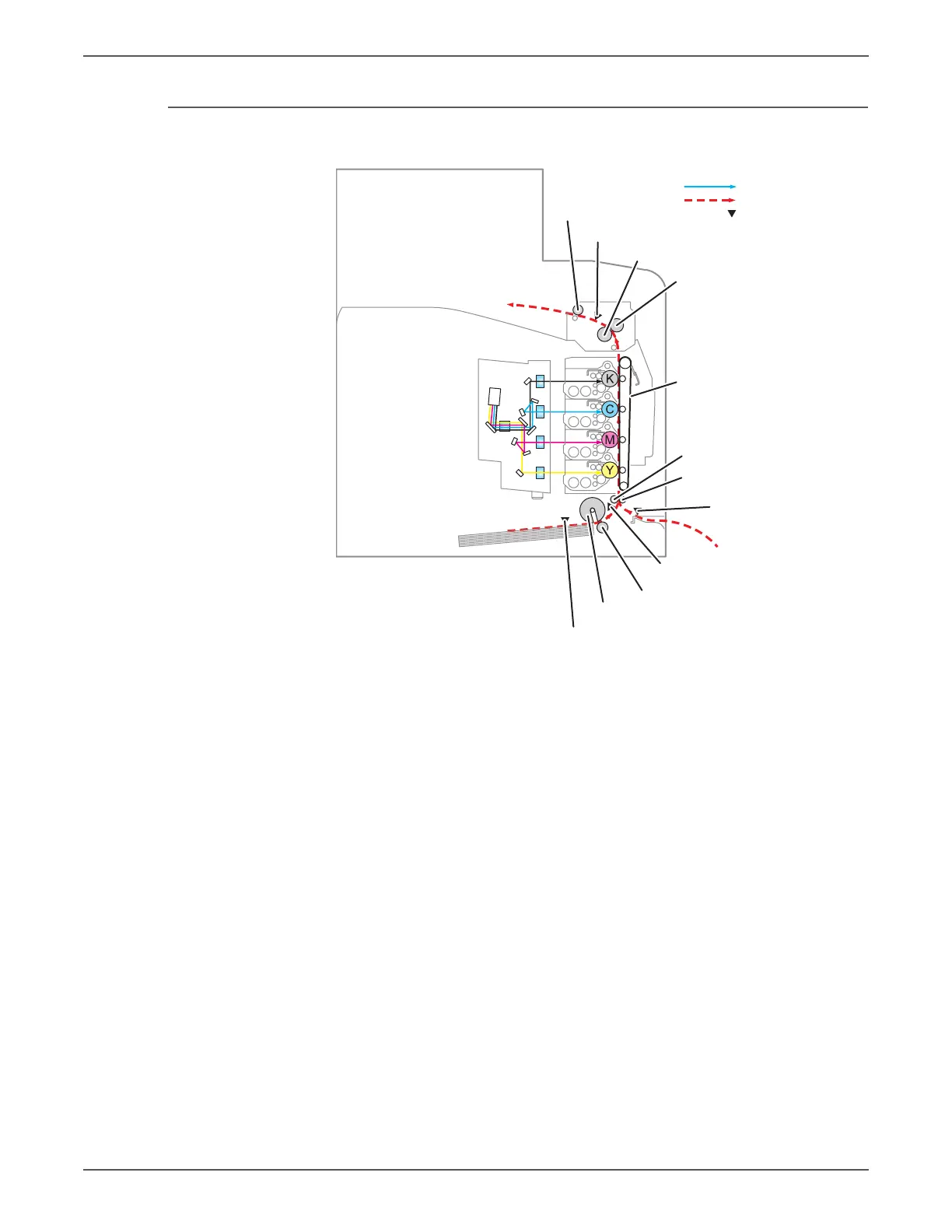

Media path components for the printer are shown in the following figure.
s6128mfp-013
: Laser Beam
: Paper Transfer
: Paper Sensors
Exit Roller
Heat Roller
Pressure Belt
Belt
Rubber Registration Roller
Metal Registration Roller
Exit Sensor
Manual Feed
No Paper Sensor
Registration Sensor
Separator Roller
Feed Roller
Tray No Paper Sensor
