Xerox Phaser 6128MFP - Parts List 10.6 Electrical (1;2)

9-24 Phaser 6128MFP Service Manual
Parts List

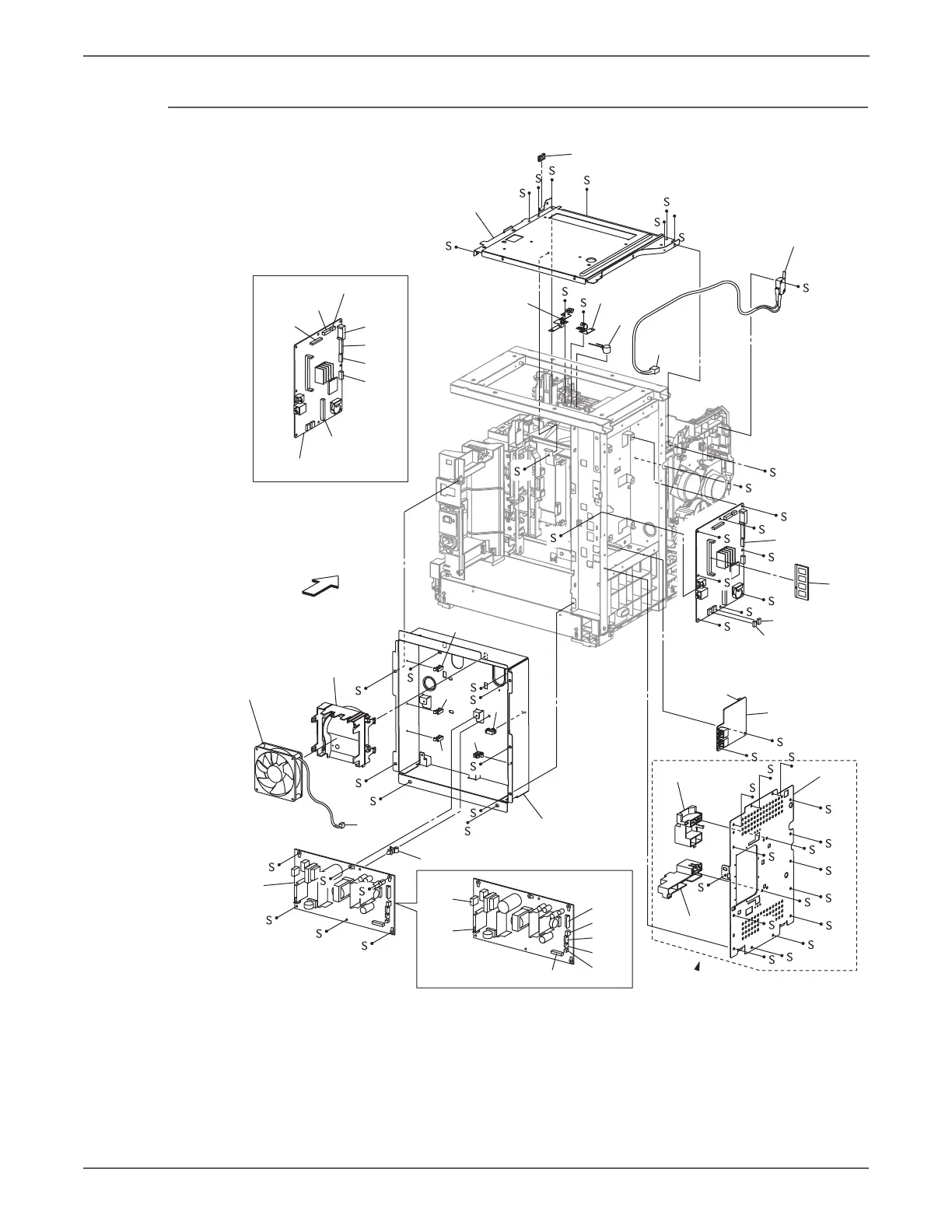

Parts List 10.6 Electrical (1/2)
s6128mfp-145
1
2
3
4
7
7
8
9
6 (with 7)
10
11
12
13
15
16
17 (with 18)
14
14
2
2
18
(J44)
(J503)
19 (with 10-12)
(P502)
(P504)
(P501)
(P47)
(P48)
(P40)
(P44)
(P503)
(P403)
(P802)
(J1001)
(J801)
(P801)
(P1003)
(P1002)
(P902)
(P901)
[Ref PL10.6.6]
20
21
22
Front
