Phaser 6128MFP Service Manual 8-57
Service Parts Disassembly
MCU Board
PL 10.7.7
1. Enter Service Diagnostics and transfer the contents of MCU memory to the
Image Processor Board (ESS).
2. Exit Service Diagnostics and turn Off the printer.
3. Disconnect the Power Cord from the wall outlet.
4. Open the Front Cover.
5. Remove the Left Side Cover (page 8-17).
6. Remove the Outer Pole Cover (page 8-19).
7. Remove the Rear Cover (page 8-22).
8. Remove the Right Side Cover (page 8-23).
9. Remove the Top Cover (page 8-25).
10. Remove the LVPS Card Cage (page 8-66).

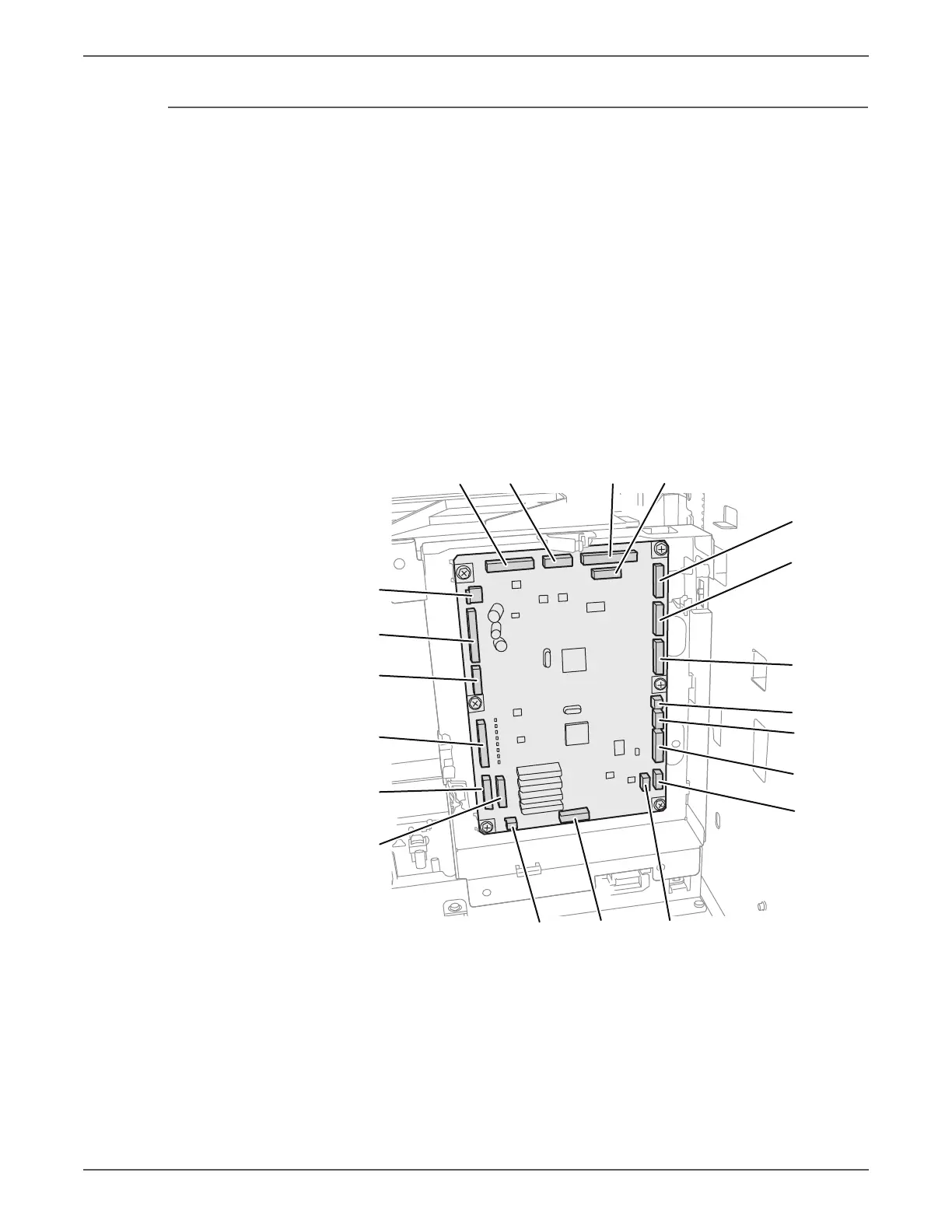

11. Disconnect all connectors on the MCU Board.
12. Remove the 6 screws (silver, with flange, 6mm) that secure the MCU Board to
the chassis and remove the board.
s6128mfp-215
P/J11P/J10P/J41P/J40
P/J28
P/J23
P/J26
P/J24
P/J21
P/J22
P/J42
P/J15
P/J14
P/J17
P/J31
P/J18
P/J19
P/J16 P/J20 P/J29
To Next Page
