Phaser 6128MFP Service Manual 2-29
Theory of Operation
Electrical
Fan
The Fan removes heat from the printer to prevent overheating.
Power Switch
The Power Switch turns the printer AC Power Supply On/Off.

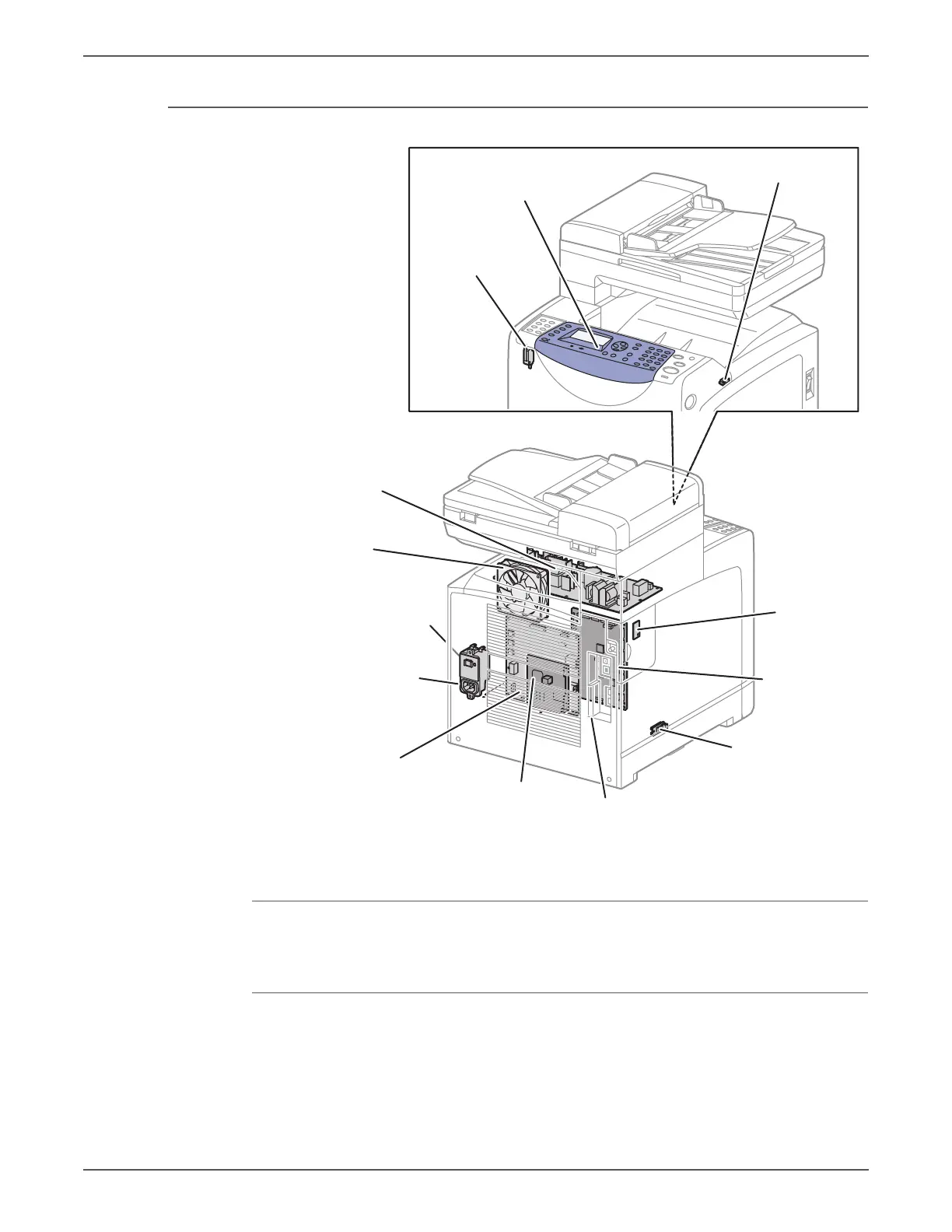

s6128mfp-031
Control Panel
Interlock Switch
Side Cover Switch
Power Switch
LVPS
IP Board
GFI Breaker
EEPROM
Humidity Sensor
Multi
Protocol
Network
Card (MPC)
HVPS
MCU Board
Fan
