8-62 Phaser 6128MFP Service Manual
Service Parts Disassembly
Chassis
Duct Plate
PL 10.6.1
1. Open the Front Cover.
2. Remove the Left Side Cover (page 8-17).
3. Remove the Outer Pole Cover (page 8-19).
4. Remove the Rear Cover (page 8-22).
5. Remove the Right Side Cover (page 8-23).
6. Remove the Top Cover (page 8-25).
7. Remove the Lower Scanner Cover (page 8-26).
8. Remove the ESS Shield (page 8-46).
9. Remove the Inner Pole Cover (page 8-20).
10. Remove the LVPS Card Cage (page 8-66).

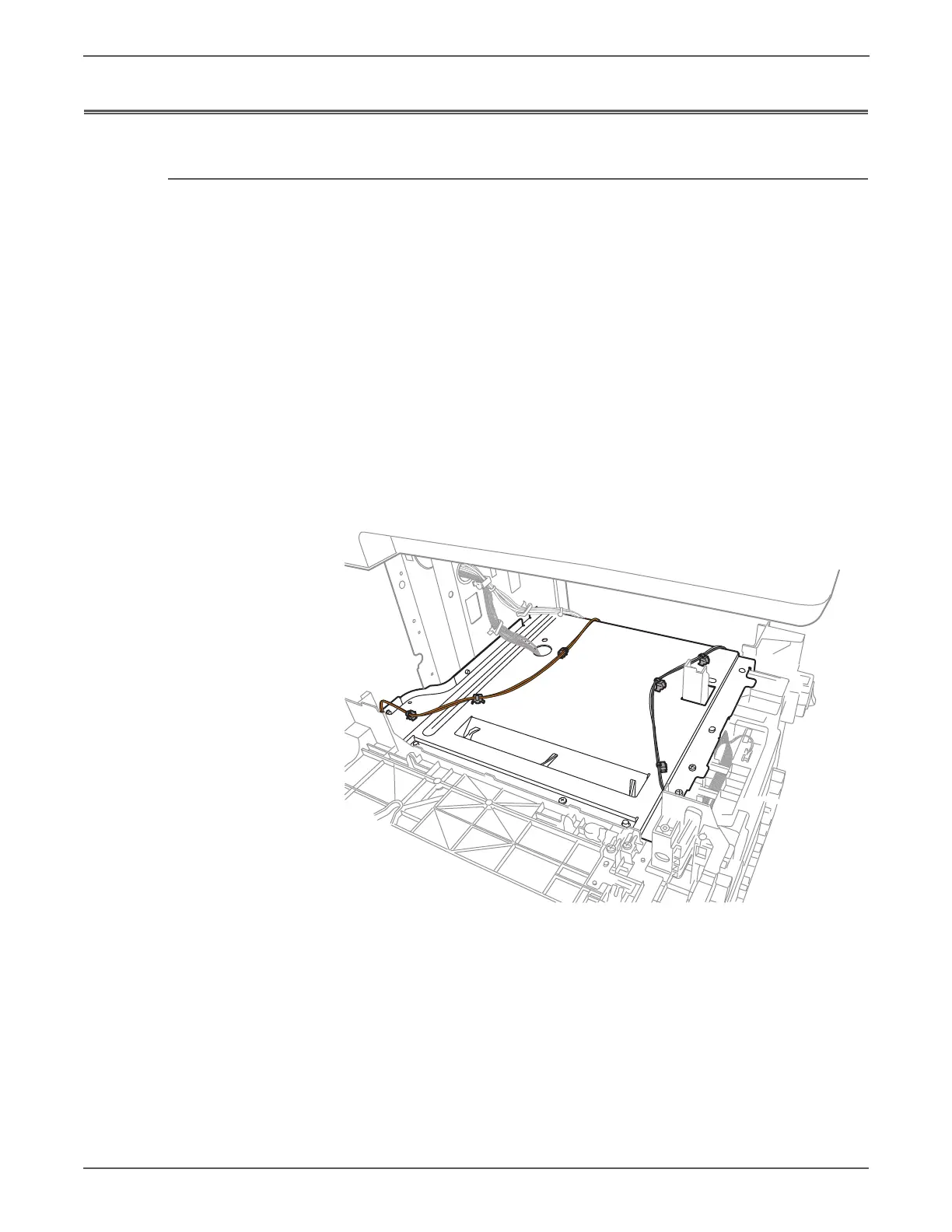

11. Release 7 harness clamps that secure the Fuser and Interlock harnesses to the
Duct Plate.
To Next Page
