8-68 Phaser 6128MFP Service Manual
Service Parts Disassembly
Upper Frame Assembly
While this major procedure is not connected to a specific part or parts list, it is a
necessary pre-requisite for removing the HVPS or components of the Feeder
Assembly. As few parts as possible are removed from the upper assembly that will
allow the assemblies to separate.
1. Open the Front Cover.
2. Remove the Left Side Cover (page 8-17).
3. Remove the Outer Pole Cover (page 8-19).
4. Remove the Rear Cover (page 8-22).
5. Remove the Right Side Cover (page 8-23).
6. Remove the Top Cover (page 8-25).
7. Remove the Lower Scanner Cover (page 8-26).
8. Remove the ESS Shield (page 8-46).
9. Remove the Inner Pole Cover (page 8-20).
10. Remove the LVPS Card Cage (page 8-66).
11. Remove the Duct Plate (page 8-62).
12. Remove the Breaker Chassis (page 8-64).
13. Remove the Drive Clutch and Bearing Kit (page 8-35).
14. Remove the Front Cover (page 8-15).
15. Remove the Transfer Belt Pivot Kit (page 8-100).
16. Remove the Transfer Belt (page 8-103).

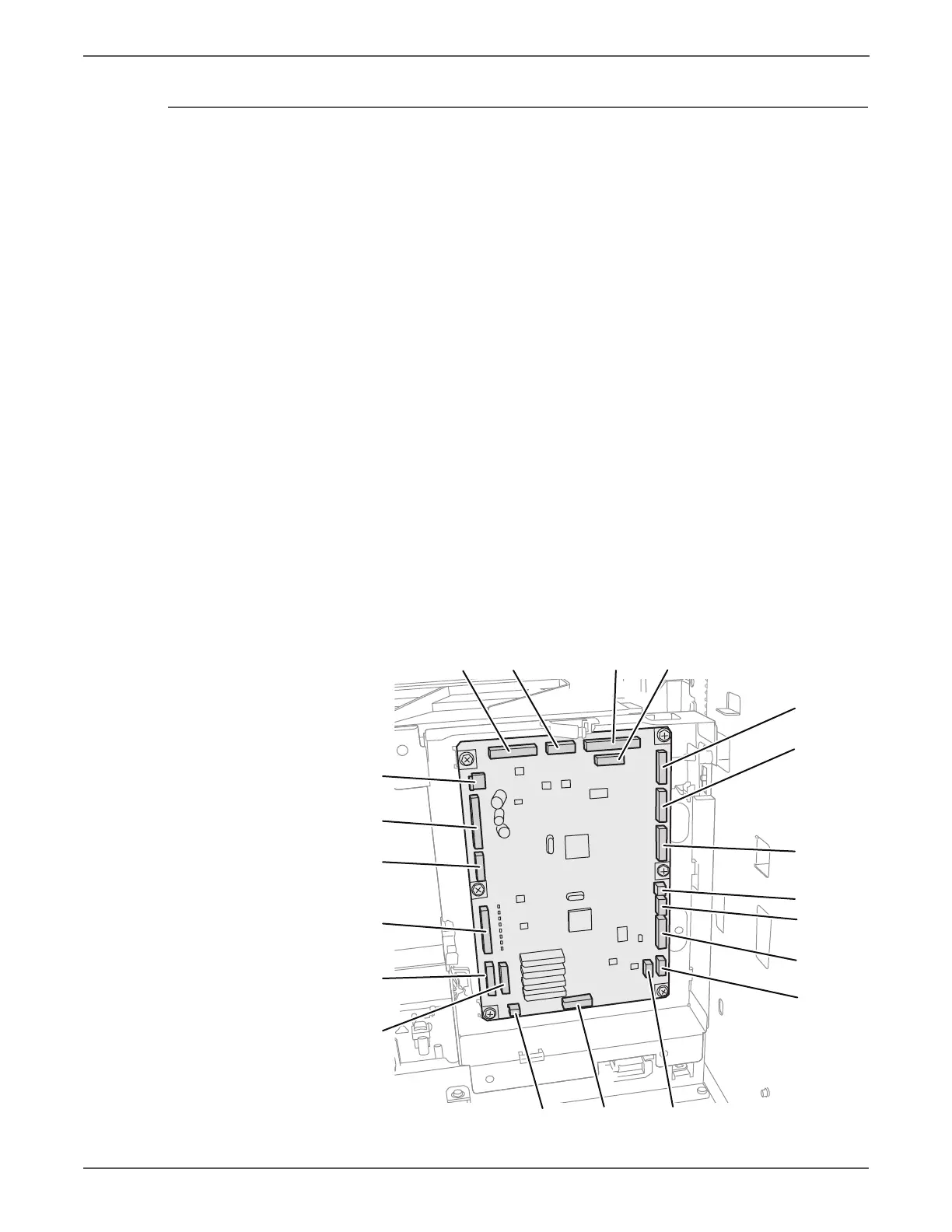

17. Disconnect all connections to the MCU and EEPROM boards, then pull the
harnesses out through the hole in the chassis.
s6128mfp-243
P/J11P/J10P/J41P/J40
P/J28
P/J23
P/J26
P/J24
P/J21
P/J22
P/J42
P/J15
P/J14
P/J17
P/J31
P/J18
P/J19
P/J16 P/J20 P/J29
To Next Page
