8-98 Phaser 6128MFP Service Manual
Service Parts Disassembly
Laser Unit
PL 4.1.1
1. Open the Front Cover.
2. Remove the Left Side Cover (page 8-17).
3. Remove the Outer Pole Cover (page 8-19).
4. Remove the Rear Cover (page 8-22).
5. Remove the Right Side Cover (page 8-23).
6. Remove the Top Cover (page 8-25).
7. Remove the Lower Scanner Cover (page 8-26).
8. Remove the ESS Shield (page 8-46).
9. Remove the Inner Pole Cover (page 8-20).
10. Remove the LVPS Card Cage (page 8-66).
11. Remove the Duct Plate (page 8-62).

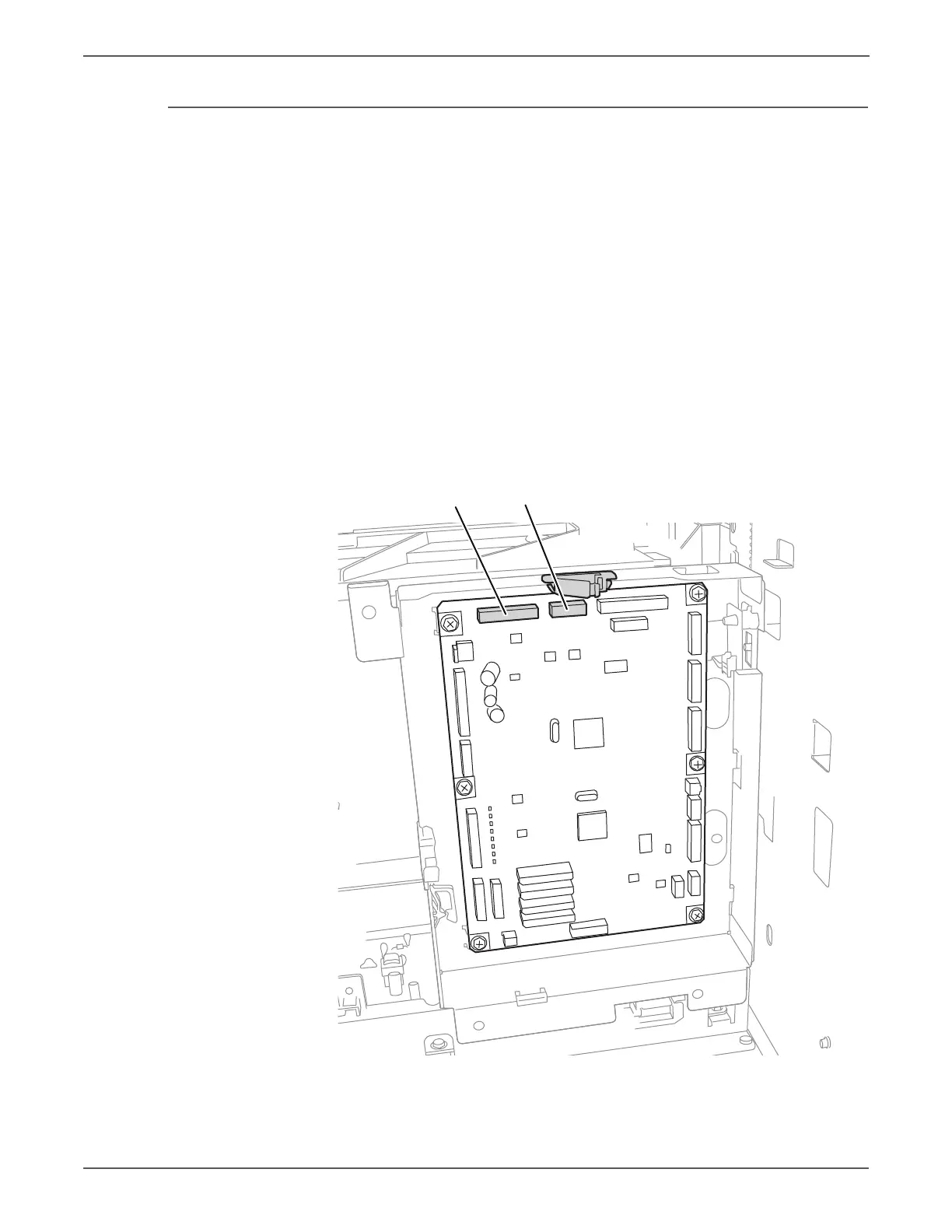

12. Disconnect P/J40 and P/J41 from the MCU Board and release the harnesses
from the Edging Saddle.
s6128-297
P/J41
P/J40
To Next Page
